Juniper CFP2-100GBASE-LR4 Compatible 100G CFP2 LR4 | FiberMall

Add to wish

Juniper CFP2-100GBASE-LR4 Compatible 100G CFP2 LR4 1310nm 10km LC SMF DDM Transceiver Module

Name: Juniper CFP2-100GBASE-LR4 Compatible 100G CFP2 LR4 1310nm 10km LC SMF DDM Transceiver Module
Brand: fibermall
SKU: 10202
Price: 1000.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:10202

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Brocade; Ciena; Extreme; H3C; Huawei; Juniper

Transceiver Type: CFP2-100G-SR10-D3; CFP2-100G-LR4-D; CFP2-100GBASE-LR4; SRX-CFP-100G-SR10; CFP-100GBASE-LR4; CFP-GEN2-100GBASE-LR4; SRX-CFP-100G-LR4; CFP-100G-ER4; CFP2-100G-ER4-D

FM PN:

CFP2-100G-LR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

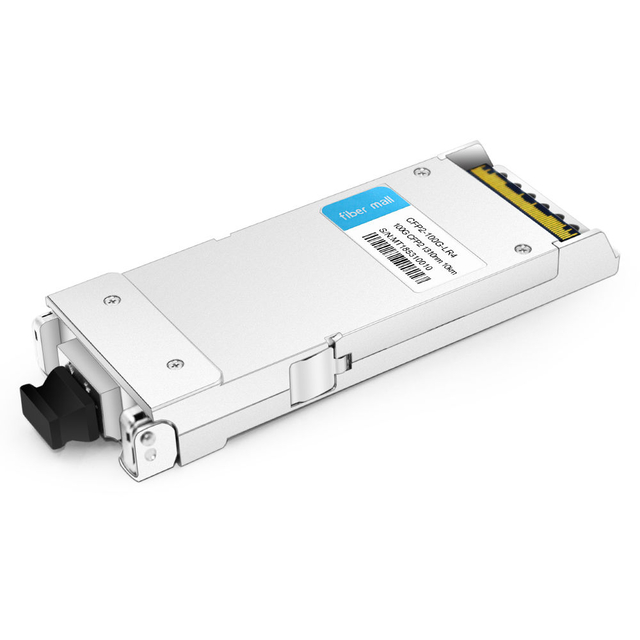

Juniper CFP2-100GBASE-LR4 Compatible 100G CFP2 LR4 Transceiver Module (1310nm SMF 10km LC DDM)

Juniper CFP2-100GBASE-LR4 Compatible CFP2 100GEBASE-LR4 optical transceiver is a hot-pluggable 100Gbps small-form-factor transceiver module. It is compliant with IEEE802.3ba and CFP MSA. It supports 100GBase-LR4 transmission up to 10km over single-mode fiber (SMF) and operates at a wavelength of 1310nm using an LC connector. The module is a multi-rate optical transceiver and is intended to support Telecom and Datacom applications.

Product Details

Juniper Compatible	CFP2-100GBASE-LR4	Vendor Name	FiberMall
Form Factor	CFP2	Max Data Rate	103.1Gbps
Wavelength	1310nm	Max Distance	10km
Connector	LC	Transmitter Type	CWDM DFB
Cable Type	SMF	Receiver Type	PIN
TX Power	-4.3~+4.5dBm	Receiver Sensitivity	< -10.6dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

 Supports single-rate 103.1Gb/s aggregate(100GE)

 Lane bit rate 25.78 Gb/s 100GbE

 Up to 10km transmission on SMF

 LAN WDM DML laser and PIN receiver

 High-speed I/O electrical interface (CAUI-4)

 MDIO interface with integrated Digital Diagnostic monitoring

 CFP2 MSA package with duplex LC connector

 Single +3.3V power supply

 Maximum power consumption 9 W

 Complies with IEEE802.3bm, EU Directive 2011/65/EU (RoHS 6/6)

 Application for 100GBASE-LR4
