Fiber Mall Introduces 200G QSFP56 FR4 Transceiver Module

Abstract: Fiber Mall launches 200G QSFP56 FR4(2km) optical transceiver. With years of experience in the field of data center optical transceivers, Fiber Mall has thrived on competition and challenge and the shipment of 100G CWDM4 and PSM4 optical modules tops the global ranking. This newly arrived 200G FR4 fiber optic module will bring customers a brand-new and better product experience.



The rapid development of Big data, cloud computing, AI, and 5G Internet of Everything(IOE) has driven the data increase in the data centers, motivating the iterative update of optical modules. Currently, the data center architecture is gradually transiting to the 200G/400G era. Compared with the 100G of low speed and the 400G of high price, 200G is a more cost-effective solution for data center interconnect.

With years of experience in the field of data center optical transceivers, Fiber Mall has thrived on competition and challenge and the shipment of 100G CWDM4 and PSM4 optical modules tops the global ranking. This newly arrived 200G FR4 fiber optic module will bring customers a brand-new and better product experience.

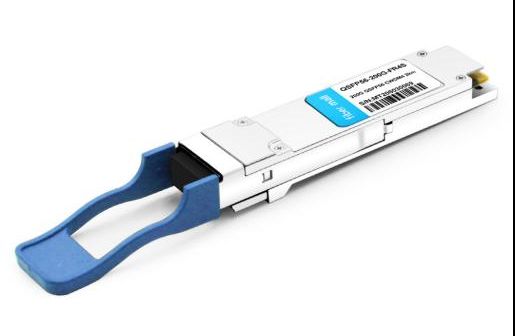

 200G QSFP56 FR4 Optical Transceiver Module PAM4 CWDM4 with LC connector and over SMF for 2km link length

Fiber Mall 200G QSFP56 FR4 Transceiver Module 2km



Fiber Mall 200G QSFP56 FR4 2km is a hot-pluggable optical module that supports a 212.5Gb/s aggregate bit rate with four CWDM channels, each capable of 53Gb/s PAM4 signal. This 200G FR4 transceiver module incorporates 4 center wavelengths of 1271/1291/1311/1331nm and MUX/DeMUX into a single optic channel. On the receiver end, the module optically de-multiplexes a 212.5Gb/s optical input into 4 channels of CWDM optical signals. It is a cost-effective 200G Ethernet connectivity solution for a transmission distance of 2km over dual-core single-mode fiber, greatly reducing the customer’s fiber cable wiring cost.

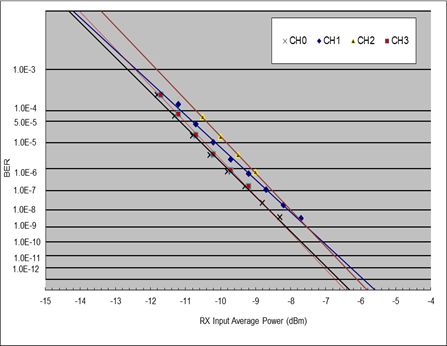

Receiver Sensitivity of 200G QSFP56 FR4 fiber to ethernet transceiver

Fiber Mall 200G QSFP56 FR4 utilizes the advanced and mature optics process technology which also applies to the 100G CWDM4 transceiver series with a massive shipment. Besides, the mature manufacturing technology and stable supply chain provide customers with high-quality, high-performance, and competitive products.

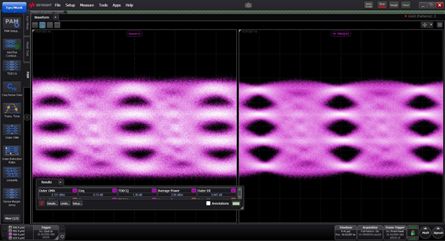

Eye Diagram of 200G QSFP56 FR4 Transmitter Signal

Eye Diagram of 200G QSFP56 FR4 Transmitter Signal

After years of technical research and development, Fiber Mall has complete and independent intellectual property rights. It has obtained 17 authorized patents, 10 invention patents, and 7 utility model patents. Fiber Malls products are widely applied in the Internet and data centers. The company continues to adhere to the concept of “customer service first” and actively responds to customer demand. By working alongside customers, we will continue to provide high-speed optoelectronic devices and optical modules for the global data center and 5G market.
