What Is the Minimum Bend Radius of an Optical Fiber?

The minimum bend radius of an optical fiber is defined as the smallest radius to which the fiber can be bent while still maintaining normal transmission of optical signals. In practical terms, it is the minimum curvature radius that the fiber can endure without causing excessive signal loss, modal dispersion, or any other degradation in performance. This parameter is typically measured as the shortest distance from the fiber’s central axis to the curve of the bend, and the unit of measurement is usually millimeters (mm).

This specification is critically important because it underpins the integrity of the transmitted light signal. For example, suppose the fiber is bent with a radius smaller than the minimum recommended threshold. In that case, the light inside the fiber may experience scattering and absorption, which increases signal loss and negatively affects the quality of transmission. In more severe cases, excessive bending might cause the fiber to break, completely interrupting signal transmission.

Furthermore, the minimum bend radius is an indicator of the mechanical strength of the fiber. Although optical fibers are designed with a certain degree of mechanical robustness, over-bending can exceed their inherent capacity, leading to damage. Adhering to the appropriate minimum bend radius not only preserves signal quality but also extends the operational lifespan of the optical fiber and reduces maintenance costs.

It is also essential to recognize that the minimum bend radius varies from one type of fiber to another. Several factors influence this parameter, including:

1. Fiber Type: Different optical fibers have varied structural and material characteristics, which in turn affect their minimum bend radii. For instance, single-mode fibers generally require a larger minimum bend radius than multimode fibers because single-mode fibers have a smaller core diameter, making their optical signals more sensitive to bending.
2. Fiber Coating: The material used for the fiber’s outer coating and its thickness play a significant role in determining the minimum bend radius. High-quality coatings can enhance the flexibility and protection of the fiber, thereby mitigating the adverse effects of bending.
3. Environmental Conditions: External factors such as temperature and humidity also impact the minimum bend radius. In high-temperature environments, the materials composing the fiber may expand or soften, which reduces their mechanical strength and necessitates a larger bend radius to preserve performance.

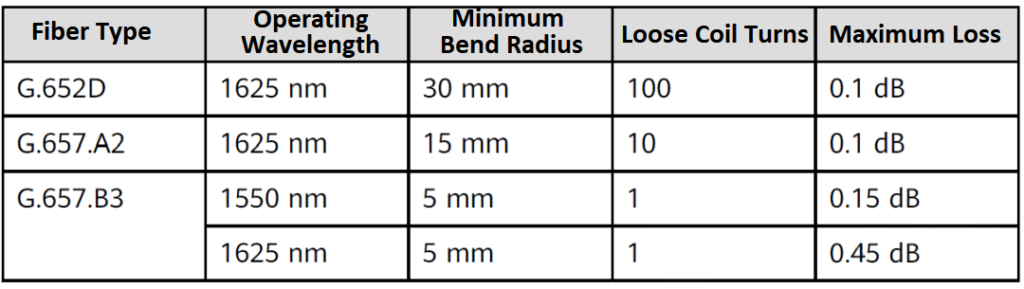

Common Minimum Bend Radius of Optical Fibers

The ITU-T specifies the minimum bend radius for various types of optical fibers. A commonly accepted definition is as follows:

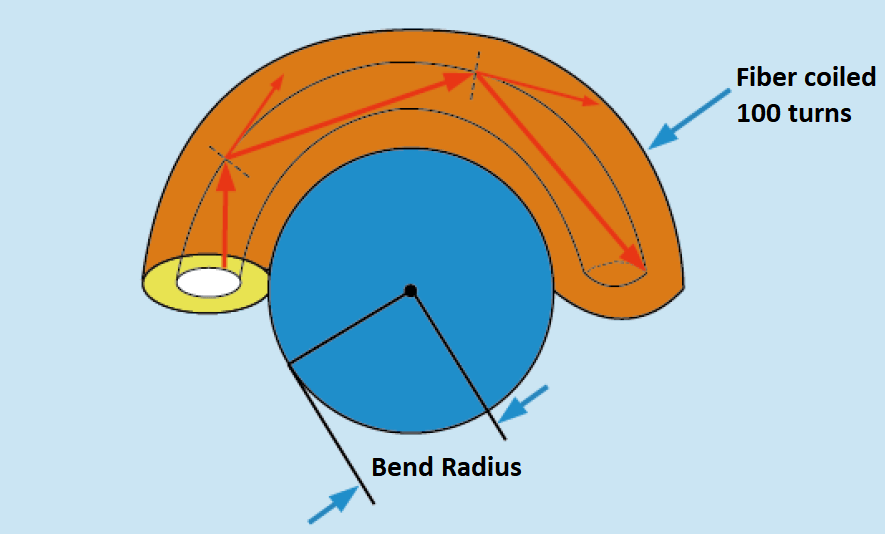

For instance, for a G.652D fiber, the fiber is loosely wound 100 times around a cylindrical mandrel. Under these conditions, the increase in attenuation for a 1625 nm wavelength must be less than 0.1 dB. The radius of the smallest such cylinder that meets this requirement is defined as the minimum bend radius for the 1625 nm wavelength.

Impact on Optical Fiber Transmission Performance When Exceeding the Minimum Bend Radius

Based on accumulated field experience, deploying optical fibers with a bending radius smaller than the specified minimum can have several adverse effects:

Optical Signal Loss

• Increased Bending Loss: When the fiber is bent beyond its minimum allowable radius, the propagation path of the light within the fiber is altered. A portion of the light deviates from the core and penetrates into the cladding or even leaks into the external environment; this is known as bending loss. The smaller the bending radius, the more pronounced the bending loss becomes. For example, in an optical communication system, bending the fiber too tightly can significantly reduce the optical signal strength, causing the received power to drop below the threshold required for proper operation, which in turn degrades the quality and effective range of transmission.
• Exacerbation of Scattering Loss: Irregular or excessive bending can also intensify scattering within the fiber. As light propagates, it interacts with the inhomogeneities within the fiber, producing scattered light that deviates from its original direction. When the fiber is bent with a radius smaller than the minimum, the enhanced curvature intensifies scattering, further dispersing optical energy and increasing overall signal loss.

Signal Transmission Quality

• Increased Modal Dispersion: In multimode fibers, different propagation modes travel at different speeds, which leads to the broadening of optical pulses—a phenomenon known as modal dispersion. Bending the fiber more than permitted alters the structural geometry of the fiber, thereby affecting the propagation paths and speeds of these modes and exacerbating modal dispersion. As a consequence, optical pulses broaden and merge, reducing the distinction between adjacent pulses. This overlap increases the bit error rate and undermines both the quality and reliability of the signal, an effect that is particularly critical in high-speed communication systems.
• Variations in Polarization State: In the case of single-mode fibers, the state of polarization is ideally stable. However, bending the fiber below its minimum bend radius introduces mechanical stresses that change the stress distribution within the fiber. This alteration can modify the polarization state, leading to polarization mode dispersion (PMD). PMD can introduce additional delays and phase distortions during signal transmission, potentially causing signal distortion and an increased error rate—challenges that are especially pronounced in high-speed and coherent optical communication systems.

Long-Term Stability and Mechanical Integrity

Increased Risk of Mechanical Damage: When the fiber is bent too tightly, the mechanical stress becomes concentrated at the bend. Prolonged exposure to such high-stress conditions can gradually deteriorate the mechanical properties of the fiber, raising the likelihood of micro-cracks or even complete breakage. These mechanical damages not only compromise the optical performance of the fiber but also jeopardize connection reliability. Over time, such damage can lead to increased maintenance costs and a higher risk of system failure, particularly in densely cabled installations where the cumulative effect of improper bending may adversely affect the entire communication network.

Guidance for Practical Engineering Applications

In practical deployment, it is essential to avoid unnecessary tight bending of optical fibers. Special care should be taken at locations prone to sharp bends, such as connectors and turning points, to ensure that the bending radius does not fall below the specified minimum. During the design and installation of fiber networks, planners must allocate sufficient space to accommodate the required bend radius, thus safeguarding both the performance and long-term reliability of the network.
