Differences Between BA, LA, and PA in Optical Transmission

Before diving into the specifics of BA, LA, and PA, it’s essential to understand the role of optical amplifiers in general. Optical amplifiers boost the power of optical signals without converting them to electrical signals, a process that enhances efficiency and reduces latency in fiber-optic communication systems. The primary types of optical amplifiers include Erbium-Doped Fiber Amplifiers (EDFAs), Raman Amplifiers, and Semiconductor Optical Amplifiers (SOAs), with EDFAs being the most common due to their compatibility with the 1550 nm wavelength window used in optical telecommunications.

Optical amplifiers are strategically placed at different points in a transmission system to address specific challenges, such as signal attenuation over long distances or noise accumulation. The placement, design, and operational characteristics of BA, LA, and PA determine their effectiveness in these roles.

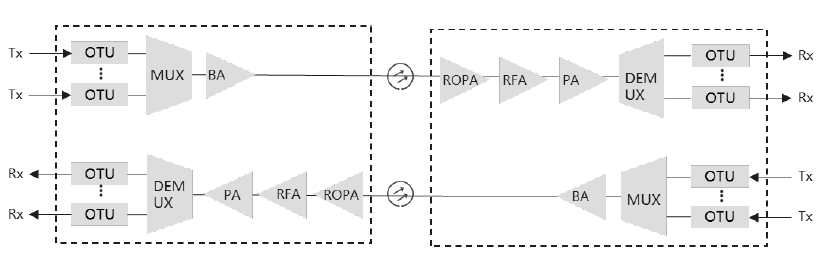

What is BA (Booster Amplifier)?

BA is an Erbium-Doped Fiber Amplifier (EDFA) used to enhance the optical power at the transmitter side. Often referred to as a post-amplifier, it compensates for the insertion loss introduced by the multiplexer (MUX) and increases the optical power entering the fiber. In Wavelength Division Multiplexing (WDM) systems, BA is placed after the MUX, boosting the power of multiple wavelength signals before transmission. Since multiplexed signals usually have higher power, BA does not require a low noise figure but must provide high output power.

Applications

BAs are critical in long-haul and metro optical networks where high launch power is necessary to ensure signal integrity over extended distances. For example, in dense wavelength-division multiplexing (DWDM) systems, where multiple wavelengths are transmitted simultaneously, BAs ensure that each channel has sufficient power to reach the next amplification stage or receiver. They are also used in submarine communication systems, where high power is needed to overcome the significant attenuation caused by long undersea fiber spans.

Advantages and Limitations

• Advantages: BAs provide high output power, enabling long transmission distances without immediate need for additional amplification. They are effective in overcoming initial losses and maintaining signal quality in multi-channel systems.
• Limitations: High output power can introduce nonlinear effects, such as self-phase modulation (SPM) or four-wave mixing (FWM), especially in DWDM systems. Careful power management is required to mitigate these effects.

What is LA (Line Amplifier)?

LA is a specialized optical power amplifier dedicated to optical fiber line relay applications, primarily used to compensate for transmission loss and extend relay distances. Deployed at Optical Line Amplifier (OLA) sites, typically placed every 80-120 km, LA amplifies bidirectional optical signals, compensating for fiber attenuation (such as Rayleigh scattering and bending loss) to maintain signal integrity. LA combines the advantages of PA and BA, offering high gain (typically 35-45 dB) for low-power signals while ensuring high output power (saturation power ≥20 dBm) with low noise characteristics. Common types of LA include Erbium-Doped Fiber Amplifiers (EDFA-LA) and Raman Fiber Amplifiers (RFA-LA).

Applications

LAs are widely used in long-haul optical networks, such as transcontinental fiber links and submarine communication systems. They are essential for maintaining signal strength over thousands of kilometers, where multiple amplification stages are required. For example, in a 4000 km submarine link, LAs may be placed every 100 km to ensure reliable signal transmission. They are also used in metro networks to extend the reach of optical signals between network nodes.

Advantages and Limitations

• Advantages: LAs enable long-distance transmission by periodically boosting the signal, making them indispensable in extended optical links. Their design allows for flexibility in gain adjustment to match specific system requirements.
• Limitations: The cumulative noise from multiple LAs can degrade the optical signal-to-noise ratio (OSNR), limiting the number of amplification stages in a system. Additionally, LAs require precise gain control to avoid signal distortion in WDM systems.

What is PA (Pre-Amplifier)?

PA is another EDFA, but it is located at the receiver side to enhance signal reception sensitivity. Positioned before the demultiplexer (DEMUX), PA amplifies incoming signals to improve receiver sensitivity. A larger input power, provided the Optical Signal-to-Noise Ratio (OSNR) is adequate, helps suppress receiver noise, thereby enhancing signal detection. PA generally employs low-noise EDFAs, prioritizing minimal noise figures while output power requirements remain relatively modest.

Applications

PAs are used in both long-haul and metro optical networks, particularly in systems where the signal power at the receiver is close to or below the receiver’s sensitivity threshold. They are essential in high-capacity DWDM systems, where weak signals from multiple channels must be amplified before detection. PAs are also used in access networks, such as passive optical networks (PONs), to improve receiver performance in fiber-to-the-home (FTTH) deployments.

Advantages and Limitations

• Advantages: PAs enhance receiver sensitivity, allowing for longer transmission distances and improved signal detection. Their low noise figure helps maintain signal quality at the end of the link.
• Limitations: PAs are less effective if the input signal is already heavily degraded by noise from upstream amplifiers. They also have limited output power compared to BAs, as their primary goal is to boost the signal to a detectable level rather than drive it through additional fiber.

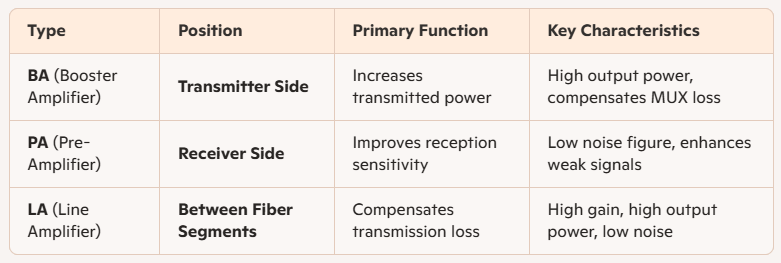

Comparative Analysis

Functional Differences

The primary distinction between BA, LA, and PA lies in their placement and purpose within the optical transmission system:

• BA: Boosts the signal at the transmitter to ensure high launch power for long-distance transmission.
• LA: Periodically amplifies the signal along the fiber link to compensate for attenuation.
• PA: Amplifies the weak signal at the receiver to improve detection sensitivity.

Performance Parameters

• Output Power: BAs prioritize high output power to drive the signal through the initial fiber span, while LAs provide moderate output power to maintain signal strength, and PAs focus on high gain with moderate output power to match receiver requirements.
• Noise Figure: PAs require the lowest noise figure to minimize degradation at the receiver, followed by BAs, as noise introduced early in the chain can propagate. LAs have slightly higher noise figures but are optimized to balance gain and noise.
• Gain: LAs and PAs typically require higher gain than BAs, as they compensate for significant signal attenuation, while BAs focus on boosting an already strong signal.

Design Considerations

• BA: Single-stage EDFA with high-power pump lasers for maximum output power.
• LA: Two-stage EDFA with gain flattening for uniform amplification in WDM systems.
• PA: Single-stage EDFA with low-noise design to minimize noise impact on the receiver.

Applications in WDM Systems

In DWDM systems, all three amplifiers play complementary roles:

• BA: Ensures sufficient power for all channels at the start of the link.
• LA: Maintains uniform power across channels over long distances, using gain flattening to prevent wavelength-dependent power imbalances.
• PA: Amplifies weak signals across all channels to ensure reliable detection at the receiver.

Practical Considerations in System Design

When designing an optical transmission system, engineers must carefully select and configure BAs, LAs, and PAs to optimize performance. Key considerations include:

System Length: Longer systems require more LAs to maintain signal strength, while BAs and PAs are critical at the endpoints.

Channel Count: In DWDM systems, amplifiers must support a wide range of wavelengths, necessitating gain flattening and careful power management.

Nonlinear Effects: High output power from BAs can introduce nonlinearities, requiring dispersion compensation or power optimization.

Cost and Complexity: BAs and PAs are typically single-stage amplifiers, making them less complex and costly than LAs, which may require multi-stage designs for long-haul applications.

Emerging Trends and Technologies

Advancements in optical amplifier technology are shaping the future of BA, LA, and PA applications. For example:

Raman Amplifiers: Distributed Raman amplification is increasingly used alongside EDFAs in LAs to improve noise performance and extend transmission distances.

Hybrid Amplifiers: Combining EDFAs with Raman amplifiers or SOAs can enhance the performance of BAs, LAs, and PAs in ultra-long-haul systems.

Software-Defined Networking (SDN): Dynamic control of amplifier gain and power in software-defined optical networks allows for real-time optimization of BA, LA, and PA performance.

Conclusion

Booster Amplifiers (BA), Line Amplifiers (LA), and Preamplifiers (PA) are integral components of optical transmission systems, each serving a distinct role in ensuring reliable signal transmission. BAs provide high launch power at the transmitter, LAs maintain signal strength over long distances, and PAs enhance receiver sensitivity at the end of the link. Their differences in functionality, design, and performance parameters make them complementary in achieving high-capacity, long-haul optical communication. By understanding and optimizing the use of these amplifiers, engineers can design robust and efficient optical networks to meet the growing demands of modern telecommunications.
