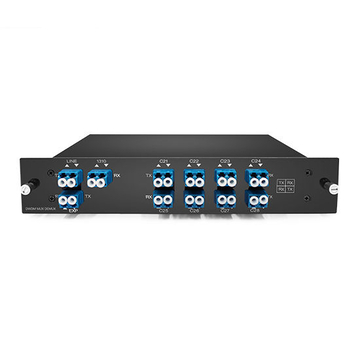

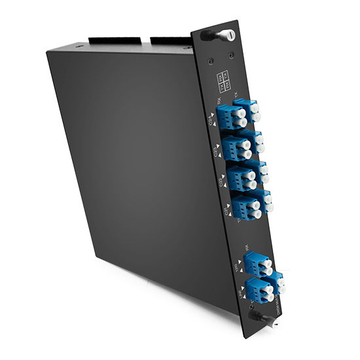

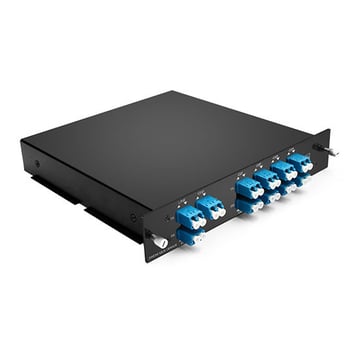

DWDM MUX DEMUX 8CH (C21-C28) with Express Port LC/UPC Dual Fiber LGX BOX

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:40057
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Wavelength
C21-C28
Customized
FM PN:
FM-DWMD8-C2128
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

8 Channels C21-C28 DWDM MUX DEMUX Dual Fiber with Expansion Port LC/UPC LGX BOX

Product Details

Operating Wavelength 8 Channels C21-C28Channel Spacing 100GHz
Passband ITU±0.11Insertion Loss ≤ 2.4dB
Directivity ≥50dBReturn Loss ≥45dB
Passband Ripple ≤ 0.5dBFiber Type SMF-28e+
Adjacent Channel Isolation ≥30dBNon-adjacent Channel Isolation ≥40dB
Polarization Dependent Loss ≤0.2dBPolarization Mode Dispersion ≤0.2ps
Maximum Optical Power 500mWDimensions (HxWxD) 39x208x200mm
Operating Temperature -20°C~+75°CStorage Temperature -40°C~+85°C


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

8 Channels C21-C28 DWDM MUX DEMUX  Dual Fiber | FiberMall

our advantages

8 Channels C21-C28 DWDM MUX DEMUX  Dual Fiber | FiberMall

Short Lead time

Fast Delivery
8 Channels C21-C28 DWDM MUX DEMUX  Dual Fiber | FiberMall

Professional Service

Technical Support
8 Channels C21-C28 DWDM MUX DEMUX  Dual Fiber | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
8 Channels C21-C28 DWDM MUX DEMUX  Dual Fiber | FiberMall

Premium Quality

High stability
8 Channels C21-C28 DWDM MUX DEMUX  Dual Fiber | FiberMall 8 Channels C21-C28 DWDM MUX DEMUX  Dual Fiber | FiberMall 8 Channels C21-C28 DWDM MUX DEMUX  Dual Fiber | FiberMall

Product Specification

Number of channels 4 8 16
Wavelength range

CWDM:1270nm to 1610nm

DWDM:C Band, 100 GHZ or 50 GHZ

Insertion loss < 1.5dB < 2.5dB < 3.5dB
Isolation ratio of adjacent channels >30dB >30dB >30dB
Isolation ratio of non-adjacent channels >40dB >40dB >40dB
Return loss >45dB >45dB >45dB
Direction >50dB >50dB >50dB
Interface type All interfaces are LC type
Work temperature -40〜85℃
Storage temperature -40〜85℃
