Every optical link has a power budget—a limit on how far a signal can travel before attenuation depletes the power margin. When that budget runs out, the solution is not another transceiver or a tighter connector; it is amplification. An erbium-doped fiber amplifier (EDFA) boosts multiple wavelengths simultaneously, without converting them back to electrical signals, allowing an entire DWDM or FTTH network to reach further without requiring a structural rebuild.
The Cost of Getting Amplification Wrong
Amplifiers may look interchangeable on a spec sheet, but selecting the wrong one can quietly degrade a network. The failure modes are predictable and expensive:
· Wrong gain profile produces uneven power across channels, causing some wavelengths to arrive strong while others fall below the required receiver threshold.
· Excess noise figure accumulates over cascaded spans, shrinking the overall reach of a long-haul link with every additional amplifier.
· A CATV-grade amplifier dropped into a DWDM plant lacks the gain-flattening and precise control modes that a multi-channel system depends on.
Engineers see the results: channels that fail intermittently, links that cannot be extended without a redesign, and replacement hardware that arrives without the necessary documentation to support it.
The most common mistake is treating the EDFA as a commodity. It is not. The operating band, amplifier position, and control mode must all match the specific deployment—and the supplier must be able to specify the correct fit.
Specifications
When evaluating EDFAs, several key parameters define their performance and compatibility. The operating band typically covers the C-band (1528–1565 nm) or the L-band (1570–1610 nm). Gain usually ranges from 12 to 40 dB depending on the amplifier type, while output power spans from 13 to 37+ dBm (with Erbium-Ytterbium Doped Fiber Amplifiers, or EYDFAs, utilized for high-power CATV applications). A typical noise figure falls between 4.5 and 6 dB. For multi-channel environments, these amplifiers support standard channel plans such as 40-channel (100 GHz spacing) or 80-channel (50 GHz spacing). Essential control modes include AGC (Automatic Gain Control), APC (Automatic Power Control), and ACC (Automatic Current Control). Management is typically handled via SNMP, RS-232, or a web interface. The internal pump lasers operate at wavelengths of 980 nm, 1480 nm, or both. Finally, physical connections are supported through various connector types, including SC, LC, FC, or ST, with UPC or APC polishes.
Amplifier Positioning
When selecting a suitable EDFA, the first consideration is its location within the link. Different locations impose varying requirements regarding gain, input power, and noise figure.
Booster Amplifier (Transmit Side)
A booster is positioned immediately after the transmitter or multiplexer. It accepts a relatively high input power and increases it to launch a strong signal into the fiber. Boosters prioritize high output power and moderate gain.
In-Line Amplifier (Mid-Span)
An in-line amplifier is deployed between spans in a long-haul link. It compensates for the attenuation of the preceding fiber while keeping noise accumulation low enough to preserve reach across multiple cascaded spans.
Pre-Amplifier (Receive Side)
A pre-amplifier is located just before the receiver or demultiplexer. It handles low input signals and provides high gain with a very low noise figure, recovering weak signals so the receiver can accurately resolve them.
Three Questions to Resolve Most Selections:
1. Which band? C-band (1528–1565 nm) is the standard workhorse for DWDM transport. L-band (1570–1610 nm) extends capacity when the C-band is exhausted. Match the amplifier band to the wavelength plan already deployed in the network.
2. Which position? Booster, in-line, or pre-amplifier. This determines the gain and input-power requirements—a booster handles high input, while a pre-amplifier must recover a weak signal.
3. What are the required output power and noise figure? These are determined by the link budget. The required output power must overcome the span loss, while the noise figure dictates how many spans the link can sustainably cascade.
Applications

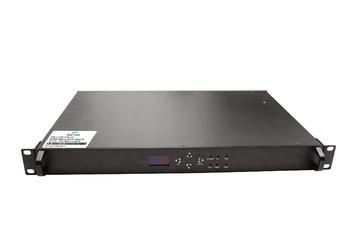

DWDM Transport
In a DWDM system, an EDFA boosts all channels simultaneously, eliminating the need for per-channel regeneration. FiberMall amplifiers support 40- and 80-channel plans, featuring the necessary gain flatness and control modes required by complex multi-wavelength systems.
CATV & FTTH Distribution
For CATV and FTTH networks, high-power erbium-ytterbium co-doped fiber amplifiers (EYDFAs) drive multi-port distribution. Their output power can be scaled to feed 8, 16, 32, or more ports for passive optical networks (PON) and cable plants.
Long-Haul & OTN Spans
Cascaded EDFAs extend reach across metro and long-haul spans. A low noise figure and gain stability are critical to preventing successive amplifiers from compounding signal degradation.
Frequently Asked Questions
What is the difference between C-band and L-band EDFAs?
C-band EDFAs operate around 1528–1565 nm, the standard transmission window for DWDM transport. L-band amplifiers cover 1570–1610 nm and provide additional capacity beyond the C-band. The choice depends entirely on which wavelengths the network's mux/demux and transceivers currently utilize.
What is the difference between a booster and a pre-amplifier?
A booster amplifies a strong signal at the transmit side to launch it into the fiber, emphasizing high output power. A pre-amplifier recovers a weak signal at the receive side, emphasizing high gain and a low noise figure. An in-line amplifier sits mid-span and balances both requirements.
How do I calculate the required gain and output power?
Start with the link budget: calculate total span loss, then factor in available transmitter power and receiver sensitivity. The required gain closes that attenuation gap, and the output power must adequately cover the loss of the subsequent span. FiberMall engineers can perform this calculation using a channel plan or span-length table.
Can EDFAs be cascaded for long-haul links?
Yes. Cascaded EDFAs extend reach across multiple spans, but each amplifier introduces optical noise (ASE). A low noise figure and stable gain are essential for making successive spans viable, which is why an amplifier's noise figure is just as critical as its gain.
What control modes and management options are supported?
Most FiberMall EDFAs support automatic gain control (AGC), automatic power control (APC), and automatic current control (ACC). Network management is accessible via SNMP, RS-232, or a web interface, depending on the specific model.
Can an EDFA amplify a single wavelength, or only DWDM?
An EDFA amplifies any optical signal within its operating band, ranging from a single wavelength up to a fully populated channel plan. It is highly effective in both single-channel and multi-channel systems.
