10G BIDI SFP+

10G BIDI SFP+

Sort by :Price: Low to High

Filter
Filter
Filter
14 Results

view {{page_size}}

Product Overview




59

What is 10G BIDI SFP+ optical module?


The 10G BIDI SFP+ optical module is an optical module using WDM (wavelength division multiplexing) bidirectional transmission technology, which realizes bidirectional transmission in the optical channel on one optical fiber at the same time. The 10G BIDI SFP+ optical module has only one port and transmits and receives signals on one optical cable through an integrated bidirectional coupler. Therefore, it must be used in pairs.


How does the 10G BIDI SFP+ optical module work?

To work efficiently, 10G BIDI SFP+ optical modules must be used in pairs, enabling bidirectional data transmission by tuning the duplexer to match the desired wavelengths of the transmitter and receiver. The rate of a 10G BIDI SFP+ optical module is up to 10.7Gbps.


The most obvious advantage of a 10G BIDI SFP+ optical module is to reduce the cost of optical fiber cabling infrastructure. The 10G BIDI SFP+ optical module cuts the number of ports on the fiber patch cord panel, reduces the footprint of the tray dedicated to fiber management, and reduces the number of fiber optic cables that need to be used.


1. SFP-10G23-BX10

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 10km Reach

1270nm TX / 1330nm RX

Part Number

Product Description

SFP-10G23-BX10C

1270T/1330R, 10Gbps, LC, 10km, 0°C~+70°C, with DDM

SFP-10G23-BX10I

1270T/1330R, 10Gbps, LC, 10km, -40°C~+85°C, with DDM

Product Features

    Supports up to 10.7Gbps bit rates

           Hot-pluggable SFP+ footprint

           1270nm DFB laser and PIN photodiode, Up to 10km for SMF transmission

           Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle

           Compatible with RoHS

     Single +3.3V power supply

     Real-Time Digital Diagnostic Monitoring

     Operating case temperature:

Standard: 0 to +70°C

Industrial: -40 to +85°C


Applications

   10Gbps Optical systems

   10GBASE-LR at 10.3125Gbps

   10GBASE-LW at 9.953Gbps

    LTE systems

   Other Optical links


2. SFP-10G23-BX20

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 20km Reach

1270nm TX / 1330nm RX

Part Number

Product Description

SFP-10G23-BX20C

1270T/1330R, 10Gbps, LC, 20km, 0°C~+70°C, with DDM

SFP-10G23-BX20I

1270T/1330R, 10Gbps, LC, 20km, -40°C~+85°C, with DDM

Product Features

  •  Supports up to 10.7Gbps bit rates
  •  Hot-pluggable SFP+ footprint
  •  1270nm DFB laser and PIN photodiode, Up to 20km for SMF transmission
  •  Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  •  Real-Time Digital Diagnostic Monitoring
  • Operating case temperature:

Standard:  0 to +70°C

Industrial: -40 to +85°C


Applications

  • 10Gbps Optical systems
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • LTE systems
  • Other Optical links


3. SFP-10G23-BX40

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 40km Reach

1270nm TX / 1330nm RX

Part Number

Product Description

SFP-10G23-BX40C

1270T/1330R, 10Gbps, LC, 40km, 0°C~+70°C, with DDM

SFP-10G23-BX40I

1270T/1330R, 10Gbps, LC, 40km, -40°C~+85°C, with DDM

Product Features

  • Supports up to 10.7Gbps bit rates
  • Hot-pluggable SFP+ footprint
  • 1270nm DFB laser and PIN photodiode, Up to 40km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real-Time Digital Diagnostic Monitoring
  • Operating case temperature:

Standard: 0 to +70°C

Industrial: -40 to +85°C



Applications

  • 10Gbps Optical systems
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • LTE systems
  • Other Optical links

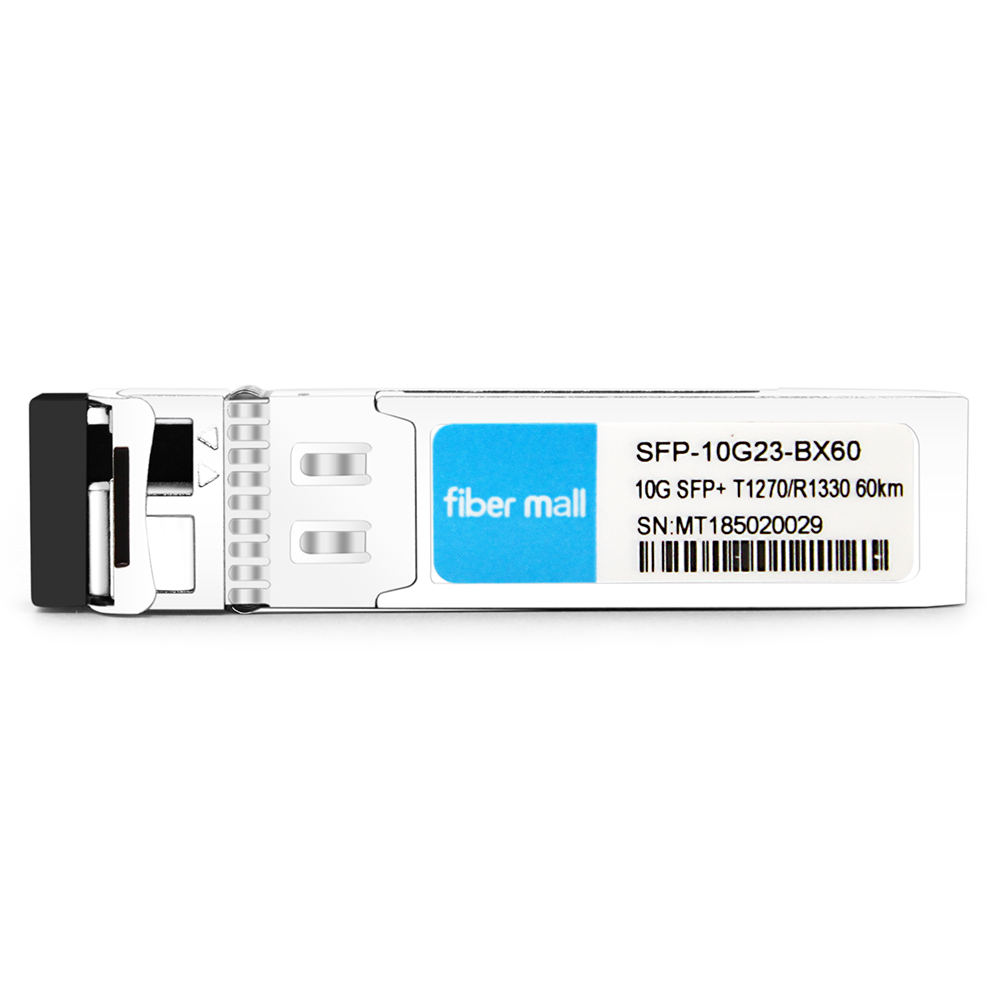

4. SFP-10G23-BX60

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 60km Reach

1270nm TX / 1330nm RX

Part Number

Product Description

SFP-10G23-BX60C

1270T/1330R, 10Gbps, LC, 60km, 0°C~+70°C, with DDM

SFP-10G23-BX60I

1270T/1330R, 10Gbps, LC, 60km, -40°C~+85°C, with DDM

Product Features

  •  Supports up to 10.7Gbps bit rates
  •  Hot-pluggable SFP+ footprint
  • 1270nm DFB laser and APD photodiode, Up to 60km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real-Time Digital Diagnostic Monitoring
  • Operating case temperature:

Standard:  0 to +70°C

Industrial: -40 to +85°C



Applications

  • 10Gbps Optical systems
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • LTE systems


5. SFP-10G23-BX70

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 70km Reach

1270nm TX / 1330nm RX

Part Number

Product Description
SFP-10G23-BX70C
1270T/1330R, 10Gbps, LC, 70km, 0°C~+70°C, with DDM
SFP-10G23-BX70I
1270T/1330R, 10Gbps, LC, 70km, -40°C~+85°C, with DDM

Product Features

  • Supports up to 10.7Gbps bit rates
  • Hot-pluggable SFP+ footprint
  • 1270nm DFB laser and APD photodiode, Up to 70km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real-Time Digital Diagnostic Monitoring
  • Operating case temperature:

Standard:  0 to +70°C

Industrial: -40 to +85°C



Applications

  • 10Gbps Optical systems
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • LTE systems
  • Other Optical links



6. SFP-10G32-BX10

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 10km Reach

1330nm TX / 1270nm RX


Part Number
Product Description
SFP-10G32-BX10C
1330T/1270R, 10Gbps, LC, 10km, 0°C~+70°C, with DDM
SFP-10G32-BX10I
1330T/1270R, 10Gbps, LC, 10km, -40°C~+85°C, with DDM

Product Features

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1330nm DFB laser and PIN photodiode, Up to 10km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real-Time Digital Diagnostic Monitoring

Operating case temperature:

Standard:  0 to +70°C

Industrial: -40 to +85°C



Applications

10Gbps Optical systems

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

LTE systems

Other Optical links



7. SFP-10G32-BX20

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 20km Reach

1330nm TX / 1270nm RX


Part Number
Product Description
SFP-10G32-BX20C
1330T/1270R, 10Gbps, LC, 20km, 0°C~+70°C, with DDM
SFP-10G32-BX20I
1330T/1270R, 10Gbps, LC, 20km, -40°C~+85°C, with DDM

Product Features

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1330nm DFB laser and PIN photodiode, Up to 20km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real-Time Digital Diagnostic Monitoring

Operating case temperature:

Standard: 0 to +70°C

Industrial: -40 to +85°C



Applications

10Gbps Optical systems

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

LTE systems

Other Optical links



8. SFP-10G32-BX40

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 40km Reach

1330nm TX / 1270nm RX


Part Number
Product Description
SFP-10G32-BX40C
1330T/1270R, 10Gbps, LC, 40km, 0°C~+70°C, with DDM
SFP-10G32-BX40I
1330T/1270R, 10Gbps, LC, 40km, -40°C~+85°C, with DDM

Product Features

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1330nm DFB laser and PIN photodiode, Up to 40km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real-Time Digital Diagnostic Monitoring

Operating case temperature:

Standard: 0 to +70°C

Industrial: -40 to +85°C



Applications

10Gbps Optical systems

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

LTE systems

Other Optical links

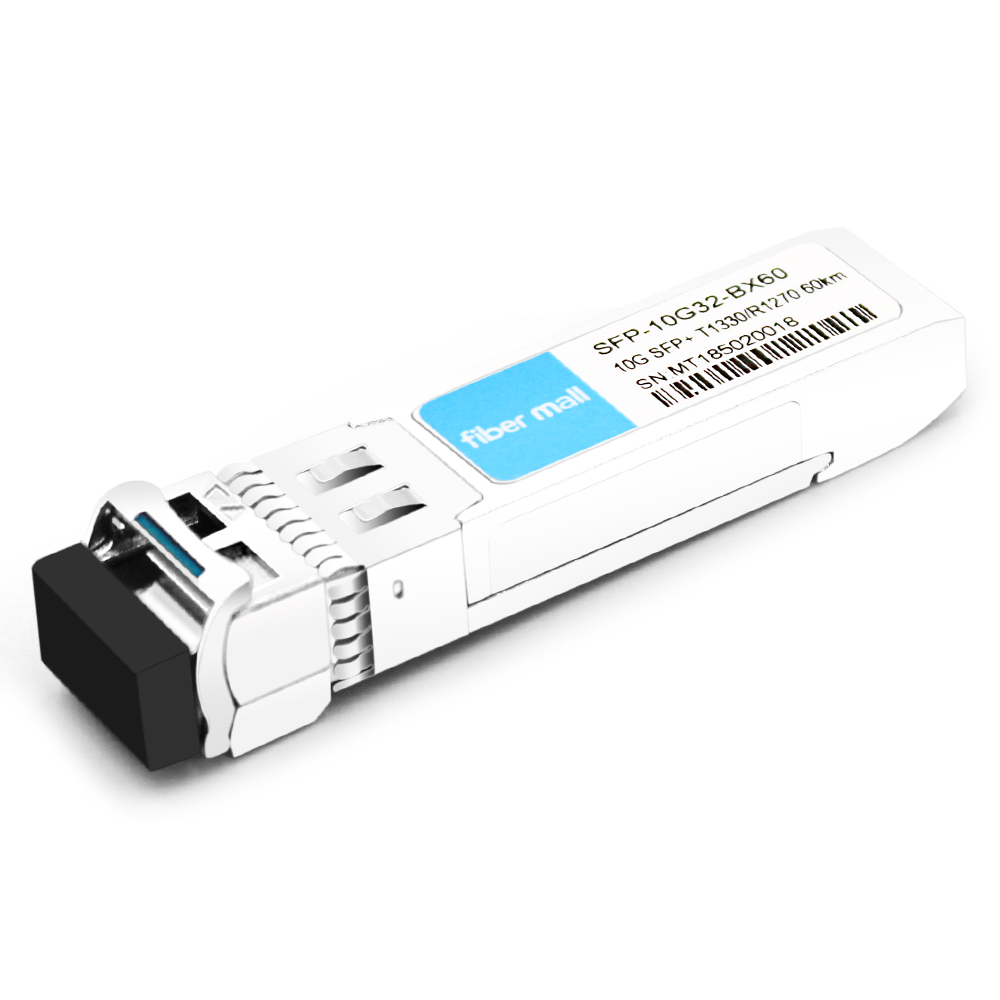

9. SFP-10G32-BX60

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 60km Reach

1330nm TX / 1270nm RX


Part Number
Product Description
SFP-10G32-BX60C
1330T/1270R, 10Gbps, LC, 60km, 0°C~+70°C, with DDM
SFP-10G32-BX60I
1330T/1270R, 10Gbps, LC, 60km, -40°C~+85°C, with DDM

Product Features

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1330nm DFB laser and APD photodiode, Up to 60km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real-Time Digital Diagnostic Monitoring

Operating case temperature:

Standard: 0 to +70°C

Industrial: -40 to +85°C



Applications

10Gbps Optical systems

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

LTE systems

Other Optical links

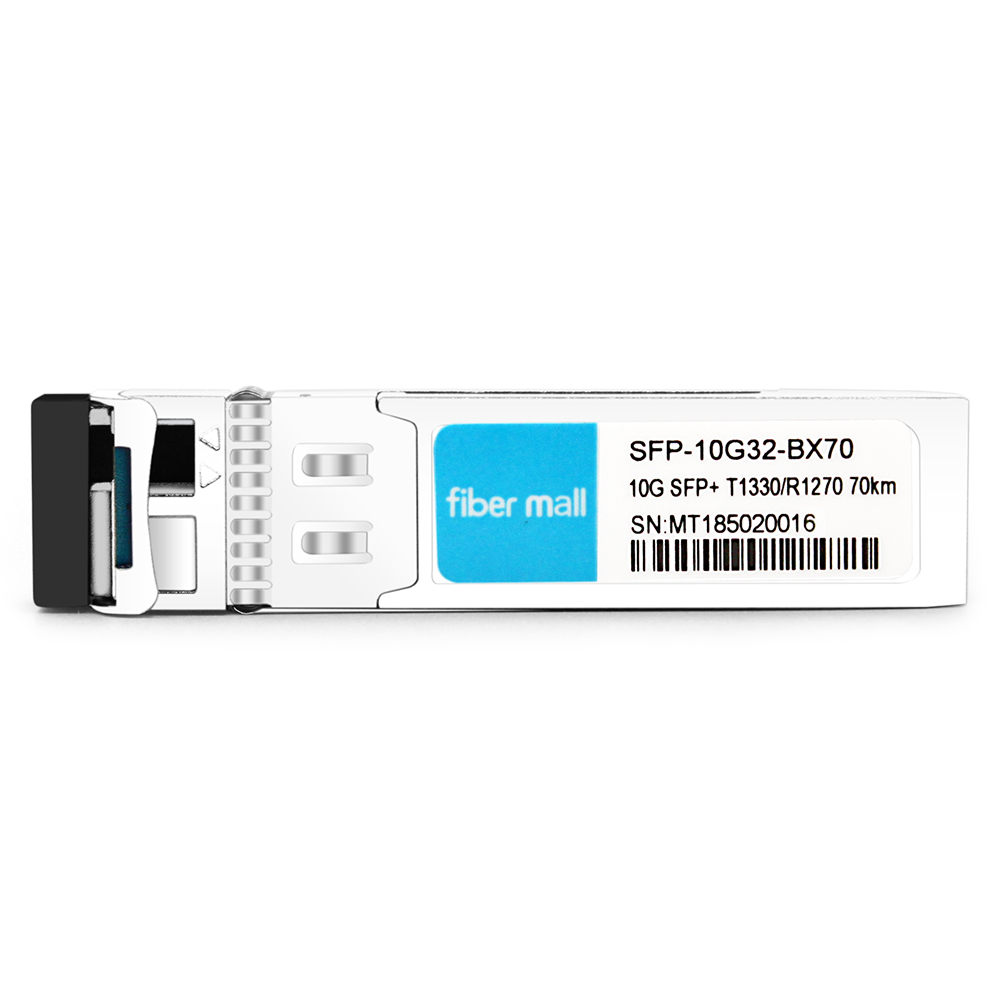

10. SFP-10G32-BX70

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 70km Reach

1330nm TX / 1270nm RX


Part Number
Product Description
SFP-10G32-BX70C
1330T/1270R, 10Gbps, LC, 70km, 0°C~+70°C, with DDM
SFP-10G32-BX70I
1330T/1270R, 10Gbps, LC, 70km, -40°C~+85°C, with DDM

Product Features

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1330nm DFB laser and APD photodiode, Up to 70km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real-Time Digital Diagnostic Monitoring

Operating case temperature:

Standard: 0 to +70°C

Industrial: -40 to +85°C



Applications

10Gbps Optical systems

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

LTE systems

Other Optical links



11. SFP-10G45-BX80

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 80km Reach

1490nm TX / 1550nm RX

Part Number
Product Description
SFP-10G45-BX80
1490T/1550R, 10Gbps, LC, 80km, 0°C~+70°C, with DDM

Product Features

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1490nm Cooled EML laser and APD photodiode, Up to 80km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real-Time Digital Diagnostic Monitoring

Operating case temperature:

Standard: 0 to +70°C



Applications

10Gbps Optical systems

10GBASE-ZR at 10.3125Gbps

10GBASE-ZW at 9.953Gbps

LTE systems

Other Optical links



12. SFP-10G45-BX100

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 100km Reach

1490nm TX / 1550nm RX


Part Number
Product Description
SFP-10G45-BX100
1490T/1550R, 10Gbps, LC, 100km, 0°C~+70°C, with DDM

Product Features

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1490nm Cooled EML laser and APD photodiode, Up to 100km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real-Time Digital Diagnostic Monitoring

Operating case temperature:

Standard: 0 to +70°C


Applications

10Gbps Optical systems

10GBASE-ZR at 10.3125Gbps

10GBASE-ZW at 9.953Gbps

LTE systems

Other Optical links



Introduction of 10G SFP+ BiDi ZR

SFP+ is a form factor, and BiDi refers to single-fiber bidirectional, that is, bidirectional transmission can be realized on one optical fiber. ZR stands for Ze best Range, which is "the longest distance". It supports the transmission of 1550nm wavelength on single-mode fiber, and the transmission distance can reach 80km. It was Cisco that originally introduced a private 10 Gigabit Ethernet standard, not within the physical layer protocol of EEE 802.3ae standard, which later transferred to the form of MSA with more and more manufacturers participating.


The transmitter part of the 10G SFP+ BiDi ZR optical module adopts EML - modulated laser, and the detector part adopts APD (Avalanche Photo-Diode) scheme with built-in CDR, which improves the performance of the module better, and the sensitivity is -22dBm after connecting the fiber. For EML lasers, the temperature is an important factor affecting the wavelength of emitted light. According to industry standards, the wavelength shift caused by each 1°C is less than 0.12nm; 10G SFP+ BiDi 80km optical module uses ADI ADN8833 plus software PID algorithm to control the laser temperature and ensure that the laser emits light stably.


13. SFP-10G54-BX80

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 80km Reach

1550nm TX / 1490nm RX


Part Number
Product Description
SFP-10G54-BX80
1550T/1490R, 10Gbps, LC, 80km, 0°C~+70°C, with DDM

Product Features

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1550nm Cooled EML laser and APD photodiode, Up to 80km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real-Time Digital Diagnostic Monitoring

Operating case temperature:

Standard: 0 to +70°C



Applications

10Gbps Optical systems

10GBASE-ZR at 10.3125Gbps

10GBASE-ZW at 9.953Gbps

LTE systems

Other Optical links

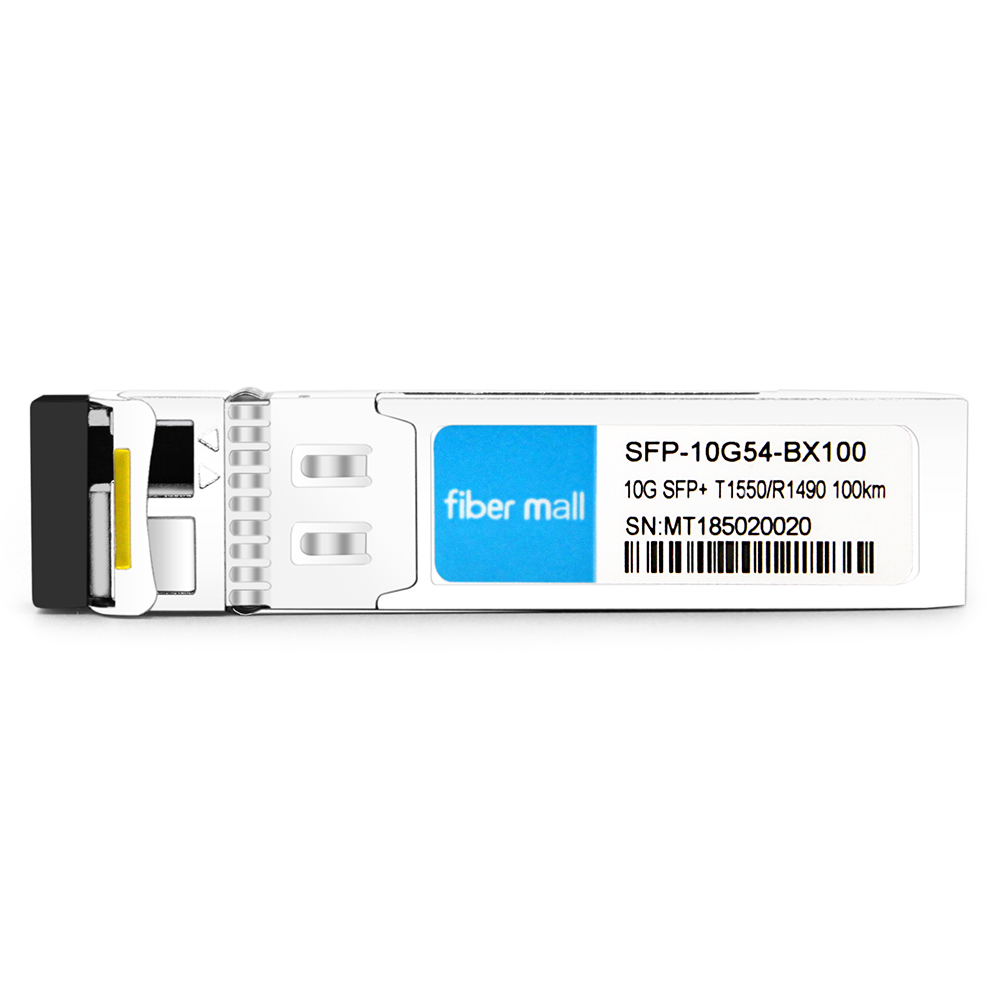

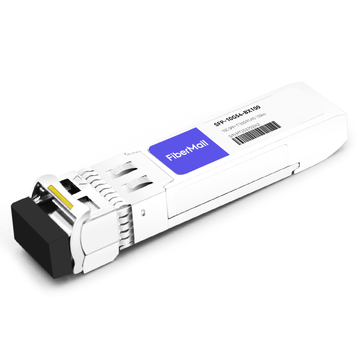

14. SFP-10G54-BX100

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 100km Reach

1550nm TX / 1490nm RX

Part Number
Product Description
SFP-10G54-BX100
1550T/1490R, 10Gbps, LC, 100km, 0°C~+70°C, with DDM

Product Features

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1550nm Cooled EML laser and APD photodiode, Up to 100km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real-Time Digital Diagnostic Monitoring

Operating case temperature:

Standard:  0 to +70°C



Applications

10Gbps Optical systems

10GBASE-ZR at 10.3125Gbps

10GBASE-ZW at 9.953Gbps

LTE systems

Other Optical links



More ↓
