Procuring 400G Interconnects for AI Clusters, Cloud Data Centers, and HPC Networks
Procuring 400G interconnects for AI clusters, cloud data centers, and HPC networks means balancing bandwidth, compatibility, and cost. A 400G QSFP-DD AOC cable delivers the low-latency, high-density connections these environments demand—without the OEM markup that drains infrastructure budgets.
The Problem With OEM 400G Cables
Network engineers and procurement teams face a familiar dilemma: OEM 400G QSFP-DD AOC cables work reliably, but they cost significantly more than third-party alternatives. That premium pricing becomes painful when you are cabling hundreds or thousands of ports across AI training clusters, hyperscale data centers, or telecom central offices.
The risk, however, is compatibility. A poorly coded AOC can trigger platform alarms, reduce link stability, or fail to initialize on your switches. Procurement teams need a supplier that matches OEM part numbers, supports the right management interfaces, and stands behind the product with fast replacement—not just a low price.
400G QSFP-DD AOC Specifications & Features
400G Base Connectivity

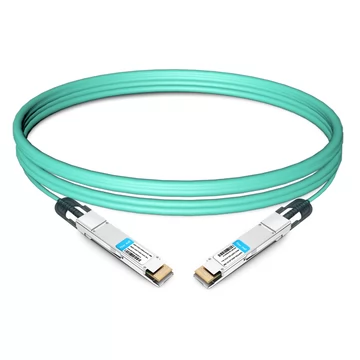

Each 400G QSFP-DD AOC supports a 400 Gbps aggregate data rate over eight lanes of 50G PAM4 signaling. The QSFP-DD form factor doubles density compared to QSFP28, making it ideal for high-port-count switches and AI/HPC clusters where rack space and power are constrained.
Reach and Fiber Type
Standard 400G QSFP-DD AOCs use multimode fiber and support reaches up to 100 meters, depending on length and cable construction. This covers typical data center row-to-row, top-of-rack, and spine-leaf interconnect distances without needing discrete transceivers and structured cabling.
Multi-Vendor Coding Service
FiberMall programs each cable with the vendor-specific EEPROM profile your switch expects. If your platform is not in our standard library, we can code to your exact part number. This reduces the risk of compatibility alarms and simplifies spare-parts management.
DDM/DOM and CMIS Support
Active monitoring through Digital Diagnostic Monitoring (DDM/DOM) and Common Management Interface Specification (CMIS) gives your operations team visibility into temperature, voltage, transmitter bias, and optical power. Early warnings help you avoid unexpected link failures in production.
Standards Compliance
Our 400G QSFP-DD AOC cables comply with IEEE 802.3cd/bs, QSFP-DD MSA, RoHS, CE, FCC, and TUV standards. A TAA-compliant option is available for government and federal deployments.
400G AOC vs DAC vs AEC: Which Should You Choose?
Buyers often compare three short-reach interconnect technologies. The right choice depends on reach, power budget, and cost:
400G QSFP-DD DAC: Offers a typical reach of up to ~3m with the lowest power consumption. It is best suited for top-of-rack, very short links, and cost-sensitive deployments.
400G QSFP-DD AEC: Supports a typical reach of up to ~7m with low power consumption. It is ideal for slightly longer intra-rack links that need signal conditioning.
400G QSFP-DD AOC: Provides a typical reach of up to 100m with moderate power consumption. It is the best choice for row-to-row, spine-leaf, AI clusters, and flexible cable routing.
Choose a 400G QSFP-DD DAC cable when the reach is under 3m, and you want the lowest possible power. Choose a 400G QSFP-DD AOC cable when you need longer reach, cleaner cable routing, or the lighter weight of fiber in dense racks. FiberMall supplies both 400G QSFP-DD DAC cables and AOCs so you can standardize on one vendor across your data center.
Compatible Platforms
FiberMall 400G QSFP-DD AOC cables are tested for compatibility with mainstream networking platforms, including:
Cisco Nexus 9000 series and Catalyst switches
Arista 7500R, 7280R, and 7060X5 platforms
Juniper PTX and QFX series routers and switches
NVIDIA Mellanox Quantum-2 and Spectrum switches
H3C, Ruijie, and Huawei data center switches
Note: If your platform is not listed, share the OEM part number or switch model. Our engineering team can confirm coding before shipment.
Available Lengths and Breakout Options
Standard FiberMall 400G QSFP-DD AOC cables are available in lengths from 1m to 100m, including common data center lengths such as 1m, 3m, 5m, 7m, 10m, 15m, 20m, and 30m. Custom lengths are available on request.
Breakout configurations are also available for environments migrating from lower-speed ports:
400G QSFP-DD to 2x200G QSFP56 breakout AOC
400G QSFP-DD to 8x50G SFP56 breakout AOC
These options help you connect next-generation 400G switches to existing 200G or 50G server ports without buying new NICs.
Applications: Data Centers, AI Clusters, and HPC
AI and Machine Learning Clusters
AI training workloads require massive east-west bandwidth between GPU servers and leaf switches. 400G QSFP-DD AOC cables deliver the low-latency, high-throughput connections InfiniBand HDR and 400G Ethernet fabrics need, while the smaller fiber cable diameter improves airflow in densely packed GPU racks.
Cloud and Hyperscale Data Centers
Spine-and-leaf architectures depend on reliable 400G links between switches. AOCs simplify deployment because the transceivers and fiber are pre-terminated and tested as a single assembly. Fewer components mean fewer points of failure and faster installation.
High-Performance Computing
HPC environments need predictable latency and consistent signal quality across thousands of nodes. FiberMall 400G QSFP-DD AOC cables are tested for bit-error-rate performance to ensure stable operation under sustained load.
Telecom and Enterprise Core Networks
For central offices and enterprise data centers upgrading to 400G, AOCs provide a cost-effective alternative to short-reach transceiver-plus-fiber deployments. Multi-vendor coding also simplifies interoperability testing across mixed switch environments.
Quality Assurance and Certifications
Every FiberMall 400G QSFP-DD AOC cable undergoes testing before shipment, including:
EEPROM coding verification against target switch platforms
Optical power and receiver sensitivity measurement
Temperature cycling and burn-in testing
Bit-error-rate validation at rated speed
Insertion-loss and return-loss checks
Compliance certifications include IEEE 802.3cd/bs, QSFP-DD MSA, RoHS, CE, FCC, and TUV. ISO 9001 and ISO 14001 quality management systems govern production.
Frequently Asked Questions
What is the maximum reach of a 400G QSFP-DD AOC?
Standard 400G QSFP-DD AOC cables support reaches up to 100 meters over multimode fiber. The exact distance depends on cable construction and the specific switch platform. For longer distances, consider 400G QSFP-DD SR8 or DR4 transceivers with structured fiber cabling.
What fiber type does 400G QSFP-DD AOC use?
Most 400G QSFP-DD AOC cables use multimode fiber, typically OM3 or OM4, depending on the desired reach and cable design. The fiber is integrated into the cable assembly, so no separate patch cords are required.
Is 400G QSFP-DD AOC compatible with my switch?
Yes, if your switch has QSFP-DD ports and supports 400G. FiberMall codes each AOC for the specific switch vendor and model you specify, including Cisco, Arista, Juniper, NVIDIA Mellanox, H3C, Ruijie, and Huawei. We guarantee compatibility or provide a replacement.
What is the power consumption per end?
Typical 400G QSFP-DD AOC power consumption is under 10 watts per end, though this varies by length and design. This is higher than a passive DAC but lower than many optical transceiver solutions, making AOCs a balanced choice for reach and power.
Does it support DDM/DOM and CMIS 4.0?
Yes. FiberMall 400G QSFP-DD AOC cables support DDM/DOM for real-time monitoring of optical and electrical parameters, and are managed through CMIS for platform-independent diagnostics and control.
What is the difference between QSFP-DD AOC and QSFP112/OSFP AOC?
QSFP-DD AOC uses the QSFP-DD form factor with eight electrical lanes to deliver 400G. QSFP112 AOC uses four lanes of 112G PAM4 signaling in a QSFP form factor for 400G. OSFP AOC uses a slightly larger form factor with an integrated heatsink. FiberMall also offers 400G QSFP112 AOC and 800G QSFP-DD AOC options.
