What is a QSFP-DD Transceiver?

The QSFP-DD optical transceiver form factor enables 400G and 800G connections while supporting existing QSFP systems because it maintains backward compatibility with those systems.

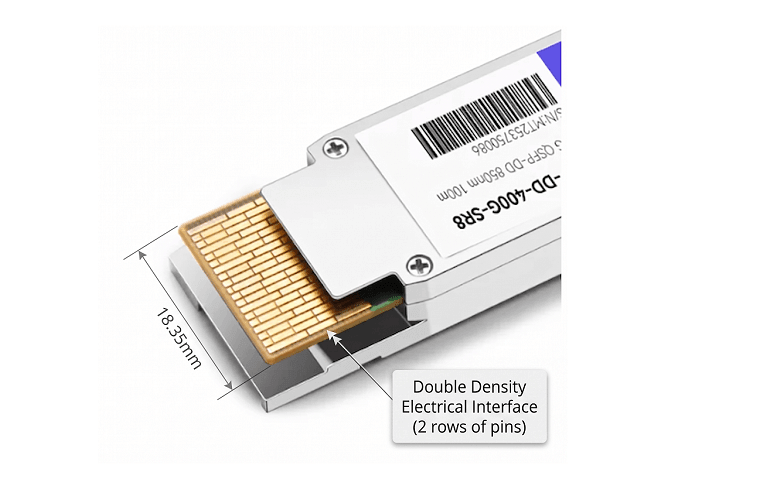

The “double density” designation refers to the electrical interface. The QSFP-DD system provides double the electrical lane capacity of QSFP28 which operates with 4 electrical lanes that transmit data at 25G to achieve a total of 100G. The clever part: QSFP-DD achieves this density increase while maintaining the same physical width as QSFP28—just 18.35 millimeters.

Key Innovation: Backward Compatibility

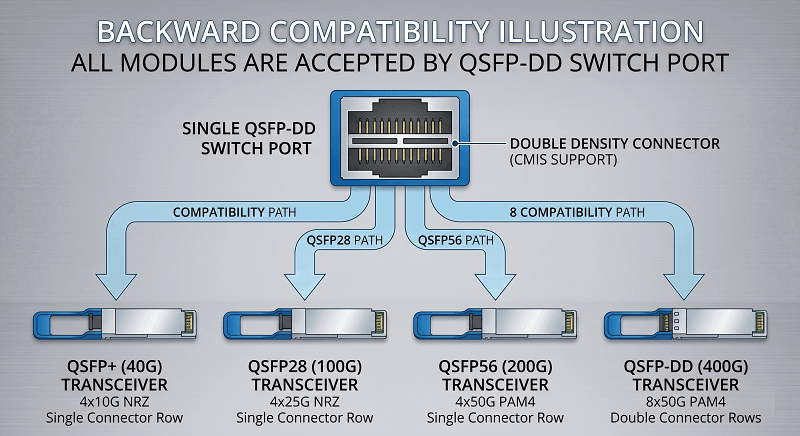

QSFP-DD’s defining advantage is its mechanical backward compatibility. A QSFP-DD port can accept:

QSFP+ (40G) modules
QSFP28 (100G) modules
QSFP56 (200G) modules
QSFP-DD (400G) modules
QSFP-DD800 (800G) modules

The solution enables you to implement QSFP-DD switches while maintaining your current QSFP28 optical equipment and upgrading to 400G or 800G modules when your bandwidth needs increase. The solution allows you to keep your current system because it does not require complete equipment replacement and prevents any financial loss from unused assets.

The system has a major restriction because it permits only one-way compatibility. The design of QSFP-DD modules prevents them from being used with existing QSFP28 ports. The additional electrical pins and deeper form factor prevent this.

QSFP-DD MSA and Standards

The QSFP-DD form factor is governed by the QSFP-DD Multi-Source Agreement (MSA), a consortium of major networking vendors including Cisco, Broadcom, Juniper, and others. Key specifications include:

SFF-8665: Mechanical specifications
CMIS 4.0/5.0: Common Management Interface Specification for module management
IEEE 802.3bs/cm/cu: Ethernet physical layer standards for 400G operation

This industry collaboration ensures interoperability between different vendors’ modules and switches—a critical requirement for data center operators who source equipment from multiple suppliers.

QSFP-DD vs Other Form Factors

Choosing the right transceiver form factor requires understanding the trade-offs between QSFP-DD and its primary alternatives.

QSFP28 vs QSFP-DD vs OSFP

Specification	QSFP28	QSFP-DD	OSFP
Max Speed	100G	400G/800G	800G/1.6T
Electrical Lanes	4×25G NRZ	8×50G/100G PAM4	8×50G/100G/200G PAM4
Width	18.35mm	18.35mm	22.58mm
Height	8.5mm	8.5mm	13.0mm
Backward Compatibility	QSFP+	QSFP+/28/56	None (requires adapter)
Integrated Heatsink	No	No	Yes (typical)
Power Capacity	~6W	~15W	~25W
Port Density (1RU)	36 ports	36 ports	~32 ports

When to Choose QSFP-DD

Select QSFP-DD for these scenarios:

Mixed infrastructure environments: If you have existing QSFP28 modules and want to upgrade switches without replacing all optics immediately, QSFP-DD is your only option.

Maximum port density: QSFP-DD maintains the same 18.35mm width as QSFP28, enabling up to 36 ports in a 1RU switch. OSFP’s larger footprint typically reduces this to 32 ports.

Enterprise and cloud data centers: The balance of performance, compatibility, and density makes QSFP-DD ideal for general-purpose data center upgrades.

Gradual migration strategies: Backward compatibility allows phased upgrades—install switches now, upgrade optics later as budget and requirements dictate.

When to Consider OSFP

OSFP (Octal Small Form-factor Pluggable) may be preferable for:

AI/HPC clusters with dedicated infrastructure: If you’re building a new AI training cluster from scratch and don’t need backward compatibility, OSFP offers better thermal headroom for high-power coherent optics.

Maximum power applications: OSFP’s larger size and integrated heatsink support modules up to 25W, compared to QSFP-DD’s ~15W practical limit. This matters for 400G ZR+ coherent optics and future 1.6T modules.

Hyperscale greenfield deployments: Google, Meta, and other hyperscalers often choose OSFP for new builds where legacy compatibility isn’t a concern.

The Real-World Decision

Most organizations find QSFP-DD the practical choice. The backward compatibility alone justifies the selection—you’re not forced into a wholesale infrastructure replacement. Unless you have specific requirements that demand OSFP’s thermal advantages, QSFP-DD delivers the bandwidth you need with the flexibility to upgrade incrementally. For a detailed comparison, see our QSFP-DD vs OSFP guide.

QSFP-DD Transceiver Module Types and Specifications

QSFP-DD transceiver modules are categorized by reach and optical technology. Selecting the right type depends on your distance requirements, fiber infrastructure, and budget constraints.

400G Transceiver Module Types

Module Type	Reach	Fiber Type	Connector	Typical Power	Best For
SR8	100m (OM4)	Multimode	MPO-16	6–8W	In-rack, ToR-to-server
DR4	500m	Single-mode	MPO-12 APC	8–10W	Spine-leaf, inter-rack
FR4	2km	Single-mode	Duplex LC	8–12W	Campus, DCI
LR4	10km	Single-mode	Duplex LC	12–15W	Metro, aggregation
ZR	80–120km	Single-mode	Duplex LC	15–20W	Long-haul DCI
ZR+	120km+	Single-mode	Duplex LC	18–25W	Extended reach

Module Technology Deep-Dive

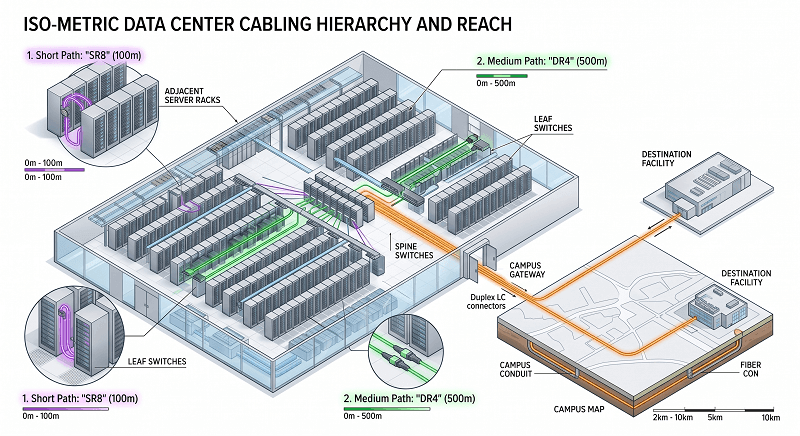

SR8 (Short Reach 8-lane)

SR8 uses 8 parallel VCSEL lasers at 850nm over multimode fiber. Each lane operates at 50G PAM4, providing 400G aggregate bandwidth. The MPO-16 connector handles all 8 transmit and 8 receive fibers in a single connection.

Use SR8 for:

Top-of-Rack to server connections under 100 meters
High-density in-rack cabling
Environments with existing OM4/OM5 multimode infrastructure

Limitations: Cannot traverse single-mode fiber. Maximum reach of 100 meters on OM4 (70 meters on OM3).

DR4 (Direct Reach 4-lane)

Despite the name, DR4 actually uses 8 lanes for 400G—but they’re arranged as 4 pairs of 100G PAM4 signaling over single-mode fiber. The MPO-12 APC connector provides 4 fibers for transmit and 4 for receive.

Use DR4 for:

Spine-leaf connections within the same data center (up to 500m)
Cost-effective single-mode deployment
Breakout applications (400G → 4×100G)

FR4 (Fiber Reach 4-lane)

FR4 uses CWDM4 (Coarse Wavelength Division Multiplexing) technology, combining 4 wavelengths (1271nm, 1291nm, 1311nm, 1331nm) over a single duplex LC fiber pair. Each wavelength carries 100G PAM4.

Use FR4 for:

Campus connections up to 2km
Data center interconnect between nearby facilities
Cost-optimized medium-reach applications

LR4 (Long Reach 4-lane)

Similar to FR4 but with higher-power lasers and enhanced DSP for extended reach up to 10km. The technology is essentially the same—CWDM4 over duplex LC—but with optical components specified for longer distances.

Use LR4 for:

Metro data center interconnect
Cross-campus links
Telecom aggregation applications

800G QSFP-DD Module Types

The transition to 800G doubles the per-lane rate from 50G to 100G PAM4 while maintaining the same 8-lane electrical interface.

Module Type	Configuration	Reach	Connector
SR8	8×100G PAM4	100m	MPO-16
2×DR4	Dual 400G DR4	500m	2× MPO-12
2×FR4	Dual 400G FR4	2km	2× Duplex LC

Key 800G consideration: QSFP-DD800 modules maintain the same physical form factor as 400G QSFP-DD, enabling upgrade paths without switch replacement. However, power consumption increases to 14–18W typical (up to 20W+ for some variants), requiring careful thermal planning.

QSFP-DD Transceiver Cable Compatibility

Cable selection significantly impacts deployment cost, power consumption, and signal integrity. QSFP-DD transceivers support three primary cable types for different reach requirements.

Passive Direct Attach Copper (DAC)

Reach: 1–3 meters
Power: <1.5W total (no active components)
Cost: Lowest ($50–150 per cable)

DAC cables use twinax copper wiring with no signal conditioning electronics. They’re the simplest, cheapest option for very short connections.

Best for:

Same-rack Top-of-Rack switch connections
Adjacent rack units in the same cabinet
Cost-sensitive deployments

Limitations: Limited to 3 meters maximum. Heavier and less flexible than optical alternatives. No signal conditioning means higher susceptibility to interference.

Active Electrical Cable (AEC)

Reach: 1–7 meters
Power: ~9W total (QSFP-DD end: ~5W, breakout ends: ~1W each)
Cost: Mid-range ($150–400 per cable)

AECs include retimer and signal conditioning electronics within the cable assembly. This active circuitry cleans and regenerates the signal, extending reach beyond passive DAC limits.

Best for:

ToR to spine connections within the same row
AI clusters requiring signal integrity (NVIDIA-certified options available)
Environments where optical cables are unnecessary

Active Optical Cable (AOC)

Reach: 1–30 meters (some models to 100m)
Power: ~10–12W (QSFP-DD end) + ~3.5W per breakout end
Cost: Highest ($300–800 per cable)

AOCs convert electrical signals to optical at the connector, transmitting over multimode fiber within the cable assembly. They’re thin, lightweight, and immune to electromagnetic interference.

Best for:

Inter-rack spine-leaf connections
Longer reach requirements (up to 30m standard, 100m extended)
Environments with tight cable management constraints

Breakout Configurations

QSFP-DD enables flexible port utilization through breakout cables:

400G → 4×100G
The most common breakout, splitting 8×50G lanes into four 100G connections using 2 lanes each. Connects to QSFP28 ports for gradual 100G-to-400G migration.

400G → 2×200G
Splits 8×50G lanes into two 200G connections using 4 lanes each. Connects to QSFP56 ports.

800G → 2×400G
Splits 8×100G lanes into two 400G connections. Used for spine-to-spine aggregation or 800G-to-400G fan-out.

Critical breakout requirement: Method B (crossover) polarity is mandatory for MPO breakout cables. Incorrect polarity causes transmit-to-transmit or receive-to-receive connections that will not link.

400G Deployment with QSFP-DD

Deploying 400G QSFP-DD infrastructure requires understanding switch compatibility, power requirements, and migration strategies.

Switch Platform Compatibility

Cisco

Nexus 9300-GX2 Series: 64× 400G QSFP-DD (2RU)
Supports breakout: 400G → 4×100G or 2×200G
Note: Cisco maintains strict compatibility policies; third-party MSA modules may trigger “unsupported” warnings without affecting operation

Arista

7060X6 Series: Full backward compatibility with QSFP+, QSFP28, QSFP56
Enhanced Class 8 power support (up to 15W per port) for ZR optics
External heatsink design runs warmer than OSFP alternatives

Juniper

PTX10008: 36× 400G QSFP-DD line cards
QFX10002-60C: Fixed-configuration data center switches
Strong coherent optics support for DCI applications

NVIDIA/Mellanox

Primary choice for InfiniBand NDR and AI Ethernet backends
Spectrum-4 switches: 64× 800G QSFP-DD ports
800G ports backward compatible with 400G QSFP-DD modules

Power Class Requirements

QSFP-DD defines power classes that must be matched to switch capabilities:

Power Class	Maximum Power	Typical Applications
Class 4	8.5W	Legacy modules
Class 6	10W	400G SR8
Class 7	12W	400G DR4, FR4
Class 8	15W+	400G ZR, 800G modules

Critical: Verify your switch ports support the required power class before deploying high-power optics. A fully populated 32-port switch with Class 8 modules can draw 480W+ for optics alone—chassis power supplies must be sized accordingly.

Migration from 100G

The typical migration path leverages QSFP-DD’s backward compatibility:

Phase 1: Install QSFP-DD switches, continue using existing QSFP28 modules
Phase 2: Upgrade spine links to 400G QSFP-DD where bandwidth demands require
Phase 3: Gradually upgrade ToR connections to 400G as server NICs transition

This phased approach spreads capital expenditure over multiple budget cycles while immediately gaining the switch platform benefits (buffer capacity, feature sets, future-proofing).

800G and Future Roadmap

While 400G is the current mainstream, 800G deployment is accelerating—particularly in AI/ML clusters where GPU interconnect bandwidth is critical.

QSFP-DD800 Specifications

QSFP-DD800 maintains the same 18.35mm width while increasing per-lane rates:

Lanes: 8×100G PAM4 (vs. 8×50G for 400G)
Aggregate: 800 Gbps
Power: 14–18W typical, up to 20W for high-power variants
Management: CMIS 5.0+

Key advantage: QSFP-DD800 modules fit into existing QSFP-DD cages. A switch deployed for 400G today can accept 800G modules tomorrow—assuming the switch ASIC supports 100G lane rates.

1.6T Roadmap (2025–2027)

The next evolution pushes per-lane rates to 200G PAM4:

2025: 1.6T QSFP-DD early samples (8×200G)
2026: Mainstream 1.6T deployment
Power challenge: 1.6T modules may exceed QSFP-DD’s thermal capabilities, potentially requiring OSFP or new form factors

Emerging Alternatives

Linear Pluggable Optics (LPO)
LPO removes DSP chips from the module, reducing power by 4–10W. However, this requires host ASICs with specific signal conditioning support—limiting LPO to homogeneous deployments with compatible switch and module vendors.

Co-Packaged Optics (CPO)
CPO moves optical engines directly onto switch ASIC packages, eliminating the pluggable module entirely. This dramatically reduces power but eliminates field-serviceability. CPO is expected for 1.6T+ deployments in hyperscale environments.

QSFP-DD Transceiver Power and Thermal Considerations

Power consumption becomes a significant design factor at 400G and 800G densities.

Module Power by Type

Module	Typical Power	32-Port Switch Total
400G SR8	6–8W	192–256W
400G DR4	8–10W	256–320W
400G FR4	8–12W	256–384W
400G LR4	12–15W	384–480W
400G ZR	15–20W	480–640W
800G SR8	14–18W	448–576W

Thermal Design Implications

A 32-port 800G switch with fully populated SR8 modules generates over 500W of heat just from optics. Combined with switch ASIC power (300–500W), total chassis dissipation can exceed 1,000W.

Planning considerations:

Front-to-back airflow: Standard for data centers, but verify cable management doesn’t obstruct exhaust
Ambient temperature: QSFP-DD modules operate to 70°C case temperature, but sustained high temperatures reduce laser lifetime
Finned-top modules: Some high-power variants include integrated heatsinks for better thermal transfer

Power Budget Calculation

When planning a QSFP-DD deployment, calculate total power draw:

Total Power = (Number of QSFP-DD modules × Module power) + Switch base power + Safety margin (20%)

For a 64-port 400G switch fully populated with FR4 modules:

Optics power: 64 × 10W = 640W
Switch base: ~400W
Safety margin: 20% × 1,040W = 208W
Total: ~1,250W

Ensure your rack power distribution and cooling can handle these loads before deployment.

QSFP-DD for AI and HPC

AI training clusters represent one of the fastest-growing applications for QSFP-DD, with unique requirements that differ from traditional data center traffic patterns.

GPU Interconnect Requirements

Modern AI training uses distributed computing across hundreds or thousands of GPUs. These GPUs must exchange gradient and activation data constantly during training—creating massive east-west traffic patterns.

Bandwidth requirements:

NVIDIA H100: 400G per GPU (4th generation NVSwitch)
NVIDIA H200: 400G per GPU
Next-generation: 800G per GPU anticipated

A 1,024 GPU cluster requires over 400 Tb/s of network fabric capacity. QSFP-DD provides the density to build this fabric in a reasonable number of rack units.

Spine-Leaf for AI

AI clusters typically use two-tier spine-leaf architectures:

Leaf layer (Top-of-Rack)

32–48× 400G downlinks to GPU servers
8–16× 400G/800G uplinks to spine switches
Uses SR8 for GPU connections (short reach within rack)

Spine layer

32–64× 800G ports connecting all leaf switches
Full bisection bandwidth for all-to-all GPU communication
Uses DR8 or FR8 for longer reach between rows

NVIDIA Compatibility

NVIDIA’s InfiniBand NDR and Spectrum Ethernet switches widely use QSFP-DD:

InfiniBand NDR: 400G per port, QSFP-DD form factor
Spectrum-4: 64× 800G QSFP-DD ports
SHARP: In-network computing for collective operations

When building NVIDIA-certified clusters, verify specific cable and module compatibility—NVIDIA maintains strict qualification lists.

QSFP-DD Transceiver Pricing and TCO Analysis

Understanding QSFP-DD transceiver pricing helps build realistic budgets and evaluate the total cost of ownership.

Module Price Ranges (2025)

Module Type	OEM List (Cisco)	Third-Party/MSA
400G SR8	~$6,200	1,400–1,400–8,000
400G DR4	~5,200(new)/ 5,200(new)/ 3,100 (reman)	2,850–2,850–12,000
400G FR4	~$6,700	~769–769–2,500
400G LR4	~$10,400	~925–925–3,500
400G ZR	~$111,000	10,857–10,857–30,000
800G SR8	~8,000–8,000–12,000	3,500–3,500–10,000

Key observations:

Third-party MSA-compliant modules typically cost 60–90% less than OEM list prices
Volume discounts: Orders of 10,000+ units can achieve 30–40% off list pricing
Remanufactured OEM modules offer ~40–60% savings with full warranty

Cable Costs

Cable Type	3m	7m	15m
DAC (400G)	$100–150	N/A	N/A
AEC (400G)	$200–300	$300–400	N/A
AOC (400G)	$400–600	$500–800	$800–1,200

TCO Comparison: 100G vs 400G

Migrating from 100G to 400G delivers approximately 42% total cost of ownership reduction over three years:

Factor	100G Baseline	400G QSFP-DD	Improvement
Cost per Gbps	1.0×	0.65×	35% lower
Ports for 1 Tbps	10 ports	2.5 ports	75% reduction
Switch count	10× 100G	1× 400G	90% reduction
Power per Gbps	0.045W	0.025W	44% savings
Fiber count	Higher	Lower	Simplified cabling

The TCO advantage comes primarily from port consolidation—fewer switches, less fiber, reduced management overhead—rather than per-module price reductions alone.

QSFP-DD Transceiver Troubleshooting: Common Issues and Solutions

Even with proper planning, QSFP-DD transceiver deployments can encounter issues. Here’s how to diagnose and resolve the most common problems.

Issue 1: MPO Connector Contamination

Symptoms: Intermittent link flaps, high error rates, gradual signal degradation
Root cause: Dust, oil, or debris on MPO connector end-faces
Solution:

Inspect with 400× fiber microscope
Clean using wet-to-dry method with MPO-specific cleaning tools
Verify APC polish angle (8 degrees) hasn’t been damaged
Re-inspect before reconnecting

Prevention: Keep dust caps installed until immediate use. Clean before every insertion. For detailed procedures, see our MPO connector cleaning guide.

Issue 2: CMIS State Machine Hang

Symptoms: Module recognized but link won’t establish; stuck in “not ready” state
Root cause: Data-path initialization failure, often from firmware/CMIS version mismatch
Solution:

Check switch logs for CMIS errors
Verify module reaches “ModuleReady” state
Confirm data-path reaches “DPActivated” state
Update switch firmware to support module’s CMIS version

Issue 3: Power Class Insufficient

Symptoms: High-power modules (ZR, 800G) not recognized or randomly reset
Root cause: Switch port cannot supply required power (Class 8)
Solution:

Verify switch supports required power class
Check power budget hasn’t been exceeded by other ports
Consider lower-power alternatives (FR4 vs ZR for shorter reach)

Issue 4: Breakout Configuration Mismatch

Symptoms: Some breakout ports work, others don’t; partial connectivity
Root cause: Incorrect lane mapping or polarity
Solution:

Verify switch breakout configuration matches cable (4×100G vs 2×200G)
Confirm Method B polarity for MPO breakout cables
Check FEC mode consistency across all lanes

Diagnostic Commands

Most switches provide diagnostic visibility:

show interface transceiver eeprom # Module identification

show interface transceiver detail # Power, temperature, voltages

show interface transceiver ddm # Optical levels (TX/RX power)

Monitor these DDM parameters:

TX power: Should be within vendor spec; degradation indicates laser aging
RX power: Should be above receiver sensitivity with margin
Temperature: Should be below 70°C case temperature
Laser bias current: Increasing current over time indicates end-of-life

FAQ

What is a QSFP-DD transceiver?

The QSFP-DD transceiver serves as an optical module which provides 400G and 800G connectivity through its 8 electrical lanes that enable double the transmission capacity of QSFP28. The system provides multiple reach options which range from 100 meters (SR8) to more than 120 kilometers (ZR+) while maintaining compatibility with previous QSFP modules. See our complete guide to MPO fiber connectors for fiber infrastructure details.

What is a QSFP-DD transceiver used for?

QSFP-DD transceivers operate in data centers and AI/ML clusters and high-performance computing environments which demand 400G or 800G bandwidth. The technology is primarily used in spine-leaf switch connections, GPU interconnects, and data center interconnects (DCI).

Is QSFP-DD backward compatible with QSFP28?

The system enables one-way operation. Organizations can install QSFP-DD switches together with existing 100G optics through QSFP28 modules which QSFP-DD ports permit. Users cannot use QSFP-DD modules with legacy QSFP28 ports because the latter require additional electrical pins.

How much power does QSFP-DD use?

Devices operate between 6W and 20W power consumption for 400G SR8 and 400G ZR and 800G modules respectively. A fully populated 32-port switch can draw 250W to 640W for optics alone which requires organizations to plan their thermal management system.

QSFP-DD versus OSFP: which option should I select?

Select QSFP-DD when your existing QSFP28 system needs backward compatibility and you require the highest possible port density. Select OSFP when you build a new AI or HPC cluster that needs maximum thermal capacity and you do not require support for older systems.

What cable do I need for QSFP-DD breakout?

The active optical cable (AOC) and active electrical cable (AEC) should be used at 400G to 4×100G breakout when you have the correct breakout configuration. You must use Method B polarity for MPO connection purposes.

How do I troubleshoot QSFP-DD link failures?

Begin the process by inspecting physical components which includes cleaning MPO connectors and checking their proper installation and testing for bent pins. The system needs to show “ModuleReady” status according to CMIS state. The DDM system displays optical power levels through its readings. FEC mode and breakout configuration need verification on both ends to ensure they match.

Conclusion

The QSFP-DD transceiver has established itself as the dominant form factor for 400G and 800G data center connectivity. Its unique combination of backward compatibility, port density, and future-proofing makes it the practical choice for most organizations upgrading from 100G infrastructure.

Key takeaways for your deployment:

Module selection: Match reach requirements to module type (SR8/DR4/FR4/LR4)
Cable planning: Choose DAC for <3m, AEC for 3–7m, AOC for longer reaches
Power planning: Calculate total power draw including optics (can exceed 500W per switch)
Backward compatibility: Leverage QSFP-DD ports to accept existing QSFP28 modules during migration
800G readiness: QSFP-DD800 fits existing cages, enabling future upgrade paths

The transition to 400G and beyond isn’t just about speed—it’s about building infrastructure that can handle the AI/ML workloads, cloud-scale applications, and high-performance computing that define modern data centers. QSFP-DD provides the foundation for that infrastructure.

For assistance with QSFP-DD module selection, compatibility verification, or deployment planning, contact FiberMall’s technical team for expert guidance.

Sources:
