Classification of 800G Optical Transceivers

Mass production of 800G optical transceivers started this year. Thanks to the outbreak of AI technologies such as ChatGPT, the market demand for 800G optical transceivers has further increased. Here we sort out the information of 800G optical transceivers for your reference.

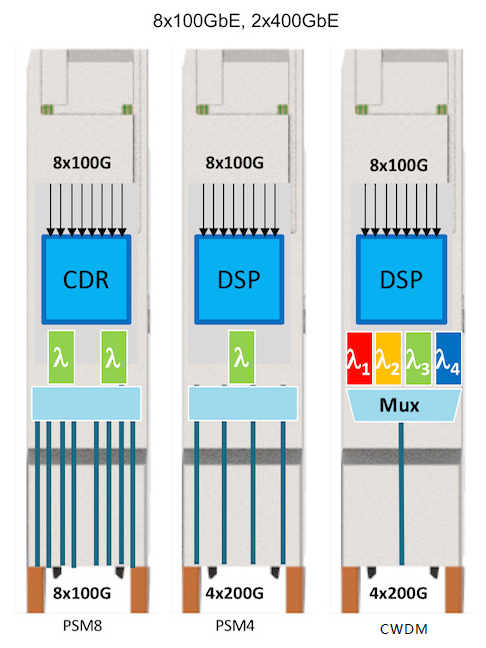

800G=8*100G=4*200G, therefore, according to the single-channel rate, it can be divided into two categories, namely, single-channel 100G and 200G. The corresponding architecture is shown in the figure below.
Single channel 100G optical transceivers can be implemented quickly, while 200G has higher requirements for optical devices. Since the current maximum rate supported by the electrical interface is 112Gbps PAM4, for the case of a single channel of 200G, gearbox is required for conversion.

8X100GbE, 2X200GbE

For the case of multi-mode, there are mainly two standards for 800G optical transceivers, corresponding to the case where the transmission distance is less than 100m.
1) 800G SR8

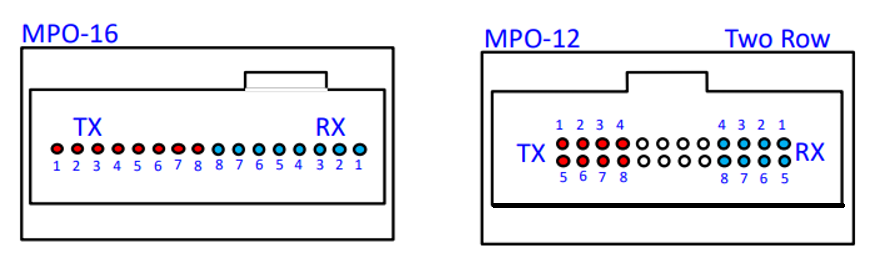

It uses VCSEL scheme, the wavelength is 850nm and the single-channel rate is 100Gbps PAM4, which requires 16 fibers. This can be regarded as an upgraded version of 400G SR4, with the number of channels doubled. Its optical interface is MPO-16 or 2-row MPO-12, as shown in the figure below.

MPO-16 or MPO-12 TWO ROW

2) 800G SR4.2

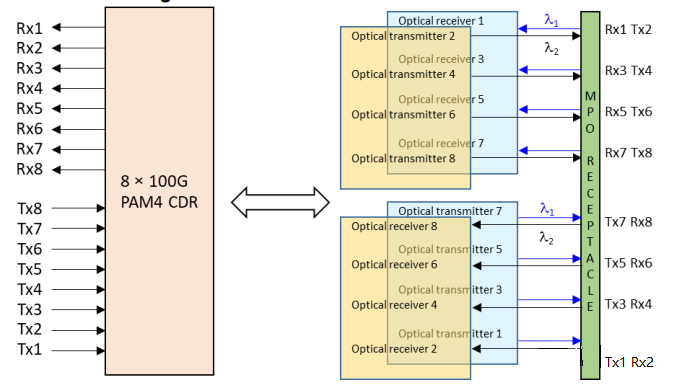

The scheme adopts 850nm/910nm wavelengths and bi-directional transmission, using DeMux in the module to split the two wavelengths. The single-channel rate is 100Gbps PAM4, which requires 8 fibers. Compared with SR8, the number of fibers in this solution is reduced by half. Its block diagram is shown in the figure below:

800G PAM4 CDR

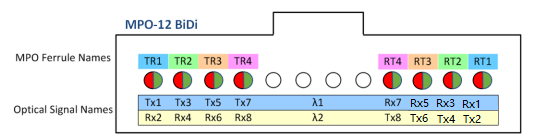

Its optical interface is shown in the figure below, using MPO-12interface.

MPO-12 BiDi

For the case of single mode, there are various standards for 800G optical transceivers,
1) 800G DR8, 800G 2xDR4 and 800G PSM8
The internal architecture of these three standards is similar, including 8 Tx and 8 Rx, with a single channel rate of 100Gbps, requiring 16 fibers.

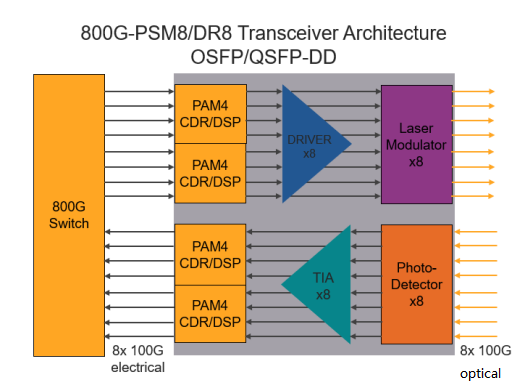

800G-PSM8/DR8 transceiver architecture OSFP/QSFP-DD

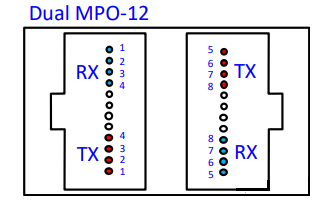

The transmission distance of PSM8 is 100m, and the transmission distance of DR8 and 2*DR4 is 500m. The optical interface of 2xDR4 is 2 MPO-12, as shown in the figure below, it can be interconnected with 400G DR4 optical modules to facilitate data center upgrades. The optical interface for PSM8 and DR8 is MPO-16.

Dual MPO-12

2) 800G 2xFR4 and 2xLR4

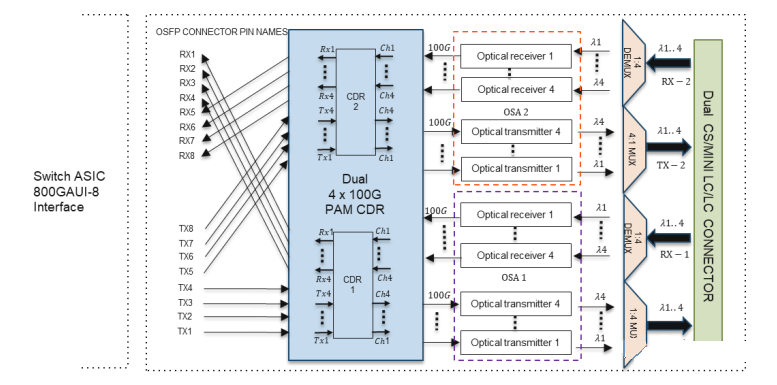

The internal structures of these two standards are similar, including 4 wavelengths, and the single-channel rate is 100Gbps. The number of fibers is reduced through Mux, and 4 fibers are required, as shown in the figure below.

Dual 400G PAM CDR

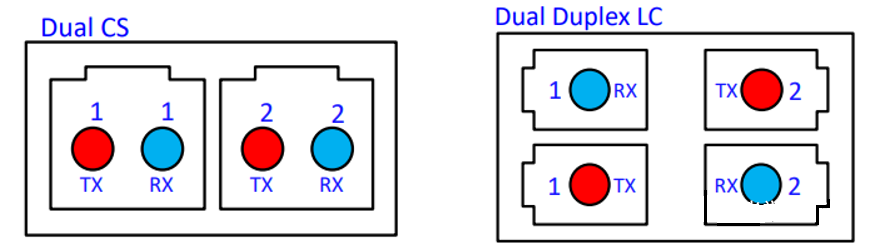

These two solutions are upgrades to 400G FR4 and LR4 optical transceivers, using CWDM4 wavelengths of 1271/1291/1311/1331nm. 2xFR4 supports a transmission distance of 2km, and 2xLR4 supports a transmission distance of 10km. Its optical interface adopts dual CS or dual duplex LC interface.

Dual CS and Dual Duplex LC

3) 800G FR4

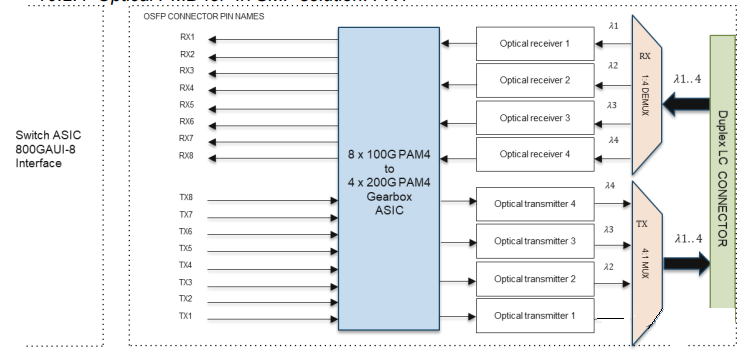

This scheme uses four wavelengths, and the single channel rate is 200Gbps, which requires two optical fibers to support a transmission distance of 2km, as shown in the figure below.

800G PAM4 to 400G PAM4 Gearbox ASIC

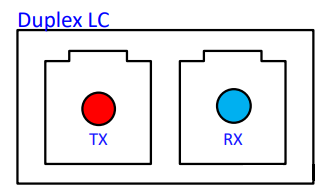

It uses a duplex LC optical interface, as shown in the figure below.

Duplex LC Optical Interface

4) 800G FR8

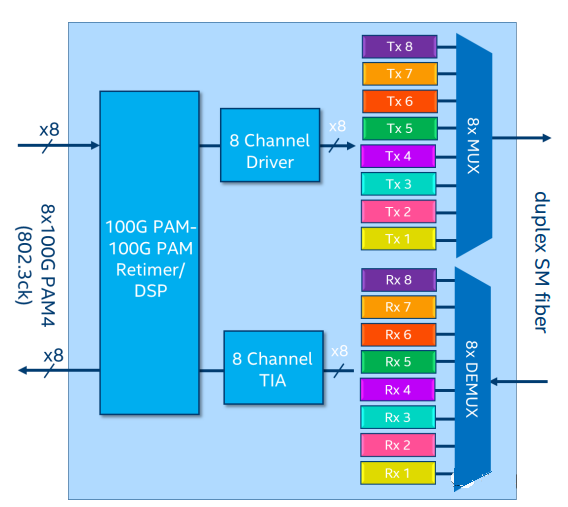

The solution uses 8 wavelengths, and the rate of each wavelength is 100Gbps, two optical fibers are required to support a transmission distance of 2km, as shown in the figure below. The eight wavelength channels are 1271/1291/1311/1331/1351/1371/1391/1411nm respectively.

800G FR8

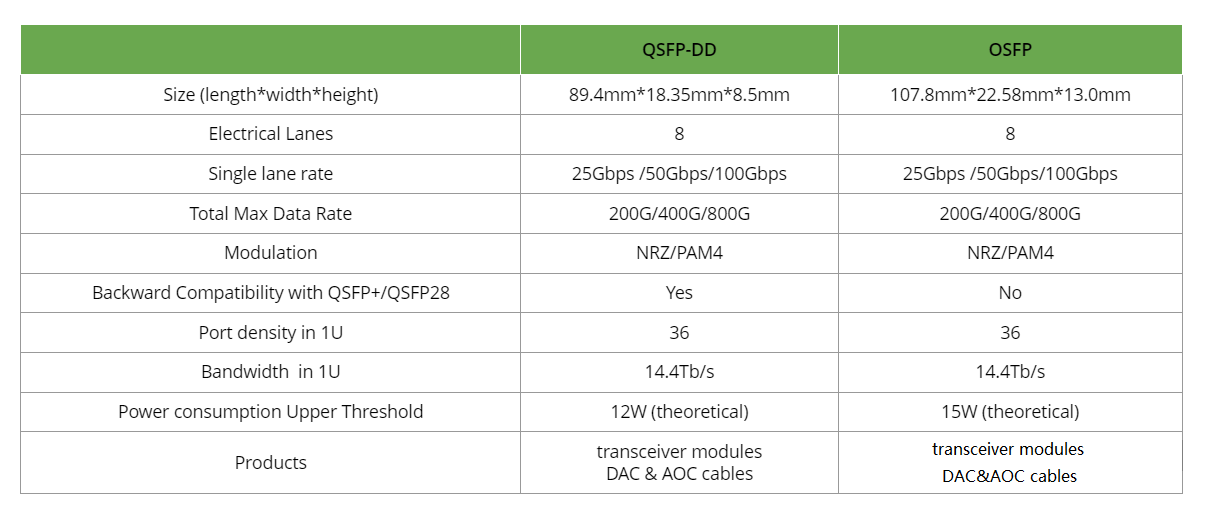

Both QSFP-DD and OSFP can support 800G, and the comparison between the two is shown in the figure below. For 800 optical transceivers, QSFP-DD has made some supplementary updates, namely QSFP-DD800.

QSFP-DD and OSFP

The main differences between the two are:
1) size: OSFP is slightly larger in size

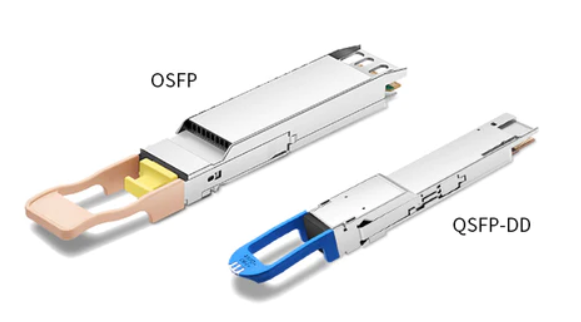

Size comparison of QSFP-DD and OSFP

2) power consumption: the power consumption of OSFP is slightly higher than that of QSFP-DD.
3) compatibility: QSFP-DD is perfectly compatible with QSFP28 and QSFP+, while OSFP is not compatible.

Currently mass-produced single mode 800G optical transceivers mainly adopt the EML solution. Can the silicon photonics solution find a place in the market? Still unknown, it mainly depends on cost and power consumption. For the single-wavelength 200G solution, EML or thin-film lithium niobate are two possible technical routes.
