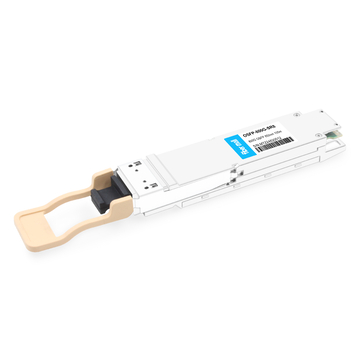

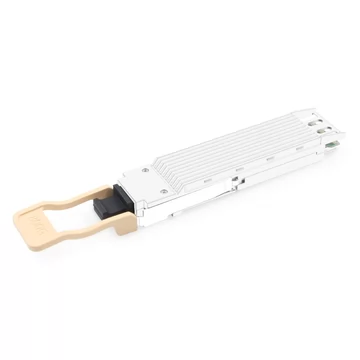

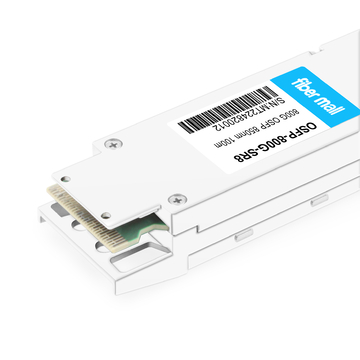

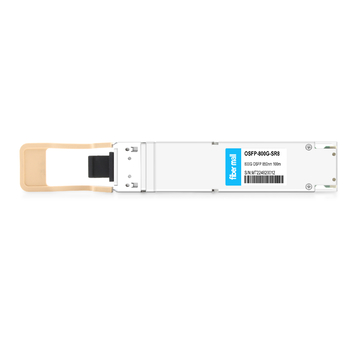

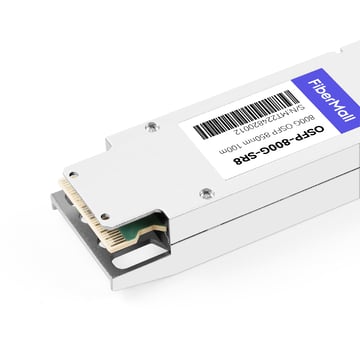

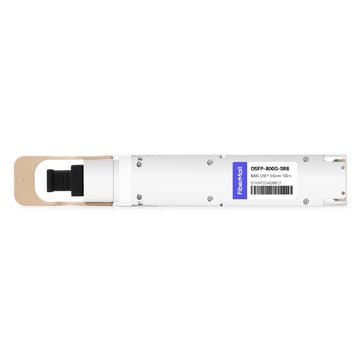

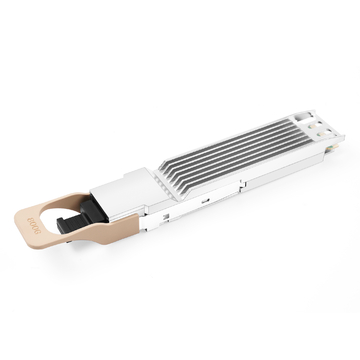

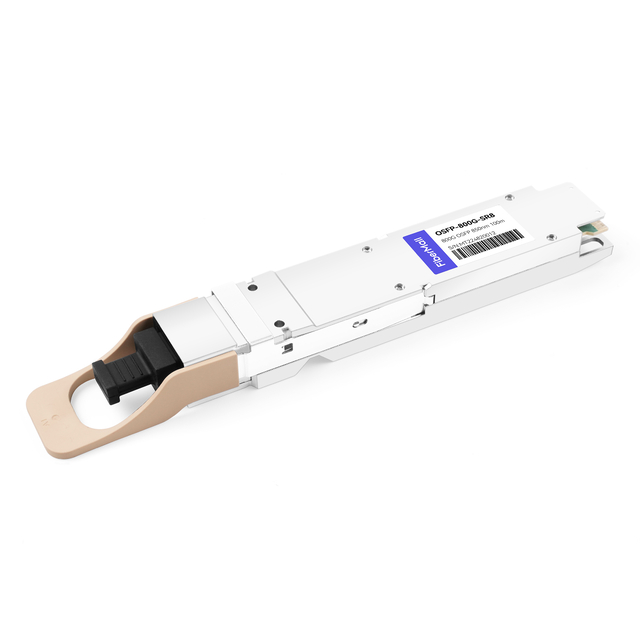

OSFP-800G-SR8 OSFP 8x100G SR8 PAM4 850nm MTP/MPO-16 100m OM4 MMF FEC Optical Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

FM PN:
OSFP-800G-SR8
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

OSFP-800G-SR8 OSFP 8x100G SR8 PAM4 Optical Transceiver Module (850nm MTP/MPO-16 MMF 100m OM4 with FEC DDM)

OSFP 8x100G SR8 transceiver modules are designed for 800 Gigabit Ethernet links over 60m OM3 or 100m OM4 fiber. The module has 8 independent channels of electrical input/output, each operating at up to 106.25Gbps. The transceiver consists of two transmitter/receiver units, each operating at 850nm wavelength. The transmitter path of the module contains a PAM4 re-timer ASIC with two 4-channel modulator drivers and 8 modulated lasers. On the receiver path, it consists of 8 photodiodes and two 4-channel TIAs with a PAM4 re-timer. The electrical interface of the module complies with the 800GAUI-8 interface defined by IEEE 802.3ck and complies with OSFP MSA.

Product Details

FiberMall P/N OSFP-800G-SR8Vendor Name FiberMall
Form Factor OSFPMax Data Rate 850Gbps(8x 106.25Gbps)
Wavelength 850nmMax Distance 60m on OM3/100m on OM4
Modulation Format PAM4Host Required FEC

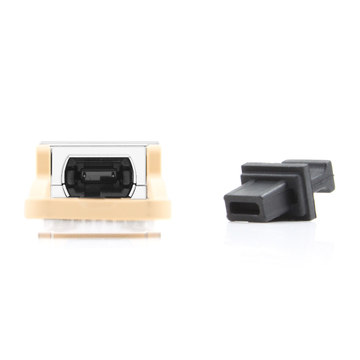

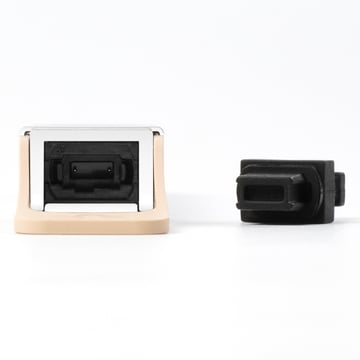

Connector MTP/MPO-16Voltage Supply 3.3V
Cable Type MMFDDM Support Yes
Transmitter Type 850nm VCSELReceiver Type PIN
TX Power -4.6~+4.0dBmReceiver Sensitivity < -4.6dBm
Operation Temperature 0 to 70°C (32 to 158°F)Maximum Power < 15W
Protocols CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cuApplication 800G Ethernet, Data Center Interconnect, Infiniband Interconnects


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall

our advantages

OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall

Keep In Stock

Fast Delivery
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall

Professional Service

Technical Support
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall
Coding(EEPROM Programming)
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall
Testing system

Partial test demonstartion

OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall
Cisco N9k-C92160YC-X-C
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall
HP ProCurve 5406zl J8697A
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall
ARISTA 7-50QX-32
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall
Juniper EX4300
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall
HW S5700-28X-L1-AC
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall
Brocade VDX 6720
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall
DELL S4048 ON
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall
DATACOM DM4100
OSFP 8x100G SR8 PAM4 Optical Transceiver Module | FiberMall
H3C LS-5500-28C-S
Product Features
v Supports 850Gbps
v Single 3.3V Power Supply
v Power dissipation < 15W
v MTP/MPO-16
v VCSEL Transmitter
v PIN and TIA Array on the Receiver Side
v I2C Interface with Integrated Digital Diagnostic Monitoring

v Safety Certification: TUV/UL/FDA*

v RoHS Compliant

v OSFP MSA Compliant

v Application for 1x800G Ethernet, 2x400G Ethernet, 4x200G Ethernet, 8x100G Ethernet
