OSFP-800G-SR8D OSFP 8x100G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

Name: OSFP-800G-SR8D OSFP 8x100G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module
Brand: fibermall
SKU: 18988
Price: 1400.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18988

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

FM PN:

OSFP-800G-SR8D

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

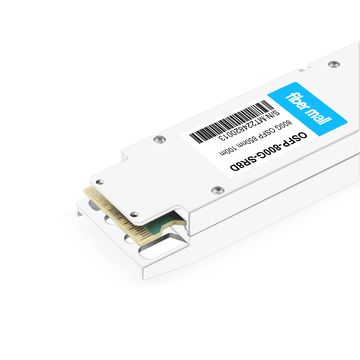

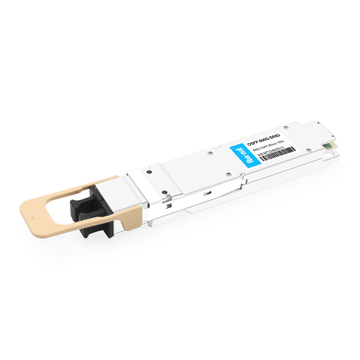

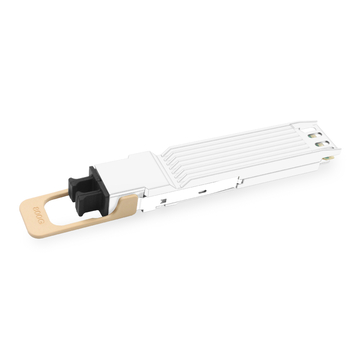

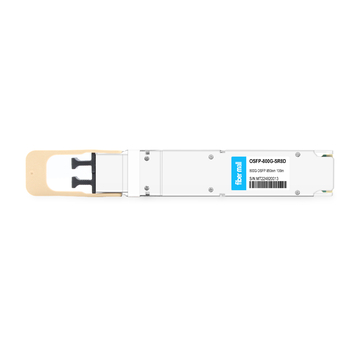

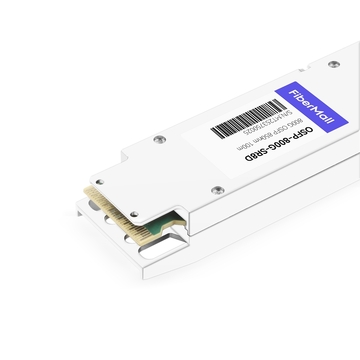

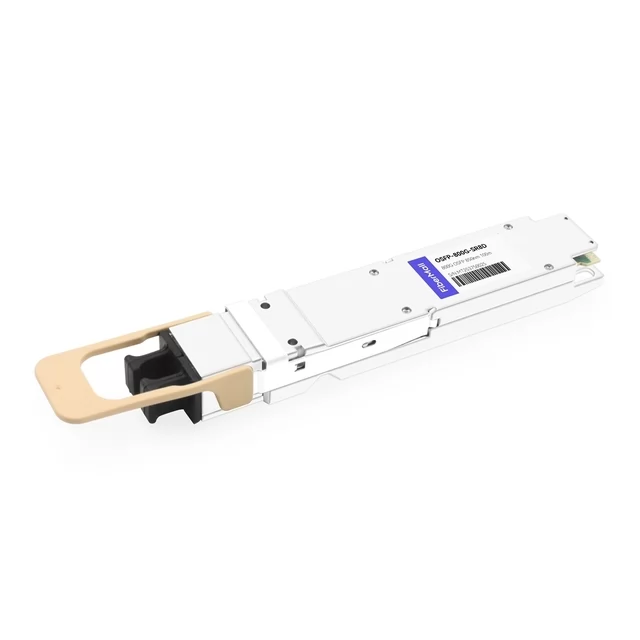

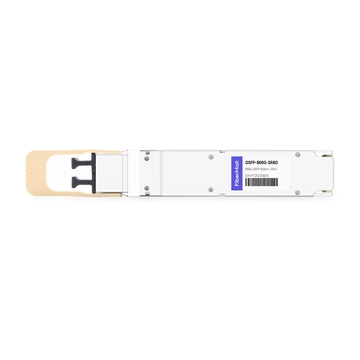

OSFP-800G-SR8D OSFP 8x100G SR8 Optical Transceiver Module (MMF, 850nm, 100m, Dual MPO-12, DOM)

OSFP 800G transceiver modules are designed for 800 Gigabit Ethernet links over 60m OM3 or 100m OM4 fiber. The module has 8 independent channels of electrical input/output, each operating at up to 106.25Gbps. The transceiver consists of two transmitter/receiver units, each operating at 850nm wavelength. The transmitter path of the module contains a PAM4 re-timer ASIC with two 4-channel modulator drivers and 8 modulated lasers. On the receiver path, it consists of 8 photodiodes and two 4-channel TIAs with a PAM4 re-timer. The electrical interface of the module complies with the 800GAUI-8 interface defined by IEEE 802.3ck and complies with OSFP MSA.

Product Details

FiberMall P/N	OSFP-800G-SR8D	Vendor Name	FiberMall
Form Factor	OSFP	Max Data Rate	850Gbps(8x 106.25Gbps)
Wavelength	850nm	Max Distance	60m on OM3/100m on OM4
Modulation Format	PAM4	Host Required	FEC
Connector	Dual MTP/MPO-12	Voltage Supply	3.3V
Cable Type	MMF	DDM Support	Yes
Transmitter Type	850nm VCSEL	Receiver Type	PIN
TX Power	-4.6~+4.0dBm	Receiver Sensitivity	< -4.6dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 15W
Protocols	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu	Application	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

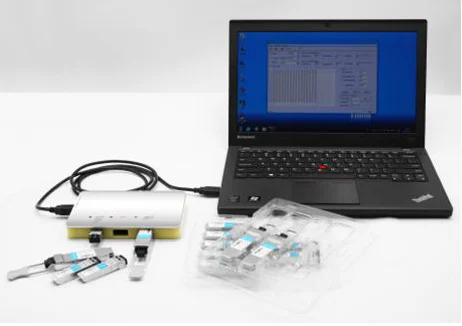

: Coding(EEPROM Programming)

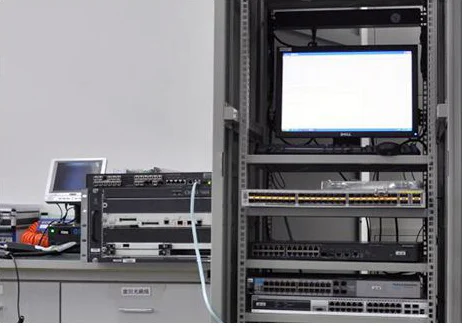

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

800g OSFP

Product Features

v Supports 850Gbps

v Single 3.3V Power Supply

v Power dissipation < 15W

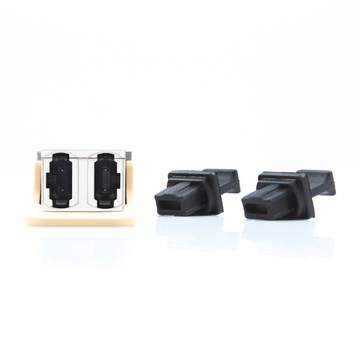

v Dual MPO-12 Connector APC

v VCSEL Transmitter

v PIN and TIA Array on the Receiver Side

v I2C Interface with Integrated Digital Diagnostic Monitoring

v Safety Certification: TUV/UL/FDA*

v RoHS Compliant

v OSFP MSA Compliant

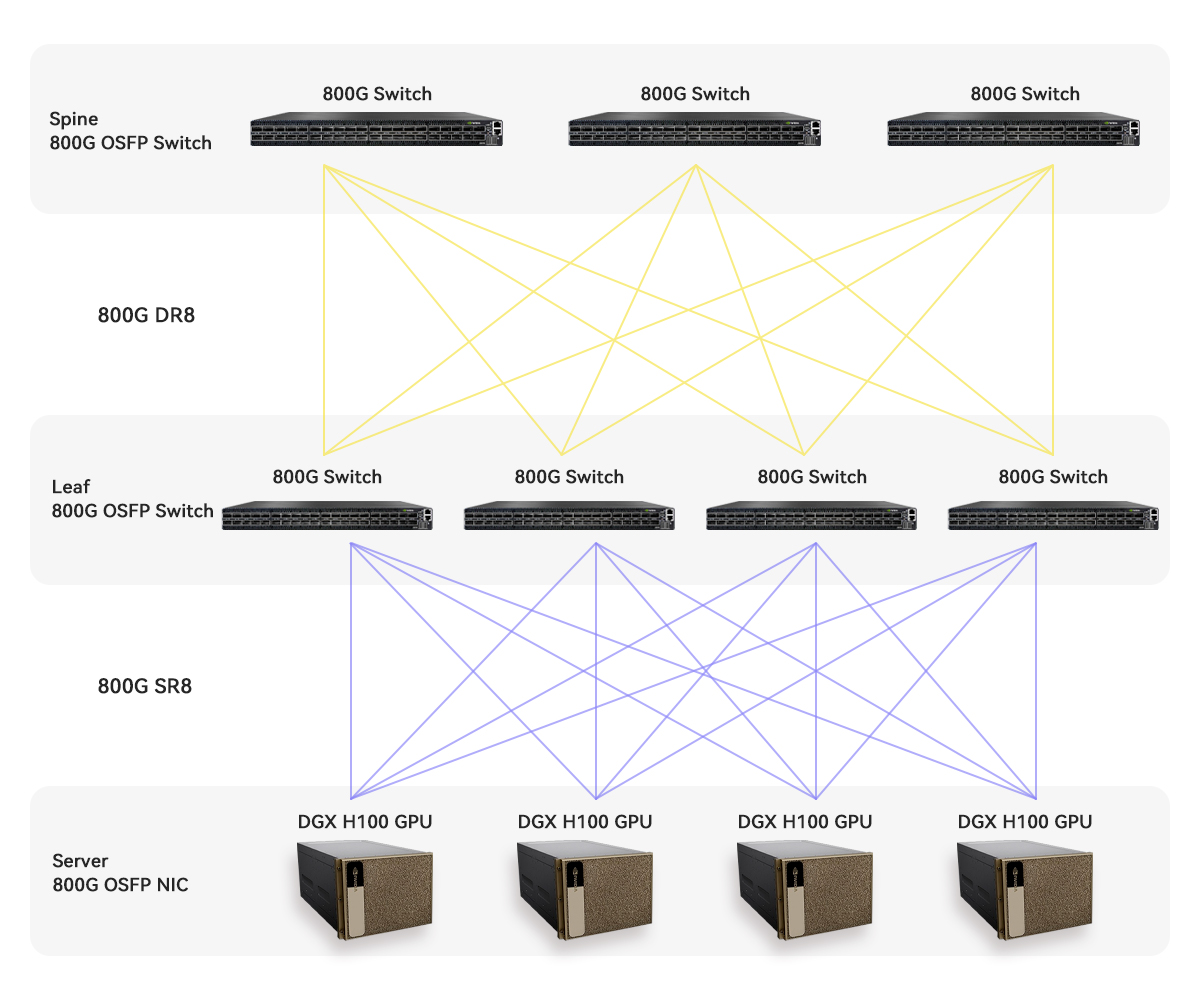

v Application for 8x100G Ethernet, 2x400G Ethernet, 4x200G Ethernet, 8x100G Ethernet

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

O***m

Verified Purchase

5.0

2024-01-04

The module fits seamlessly into my existing setup with minimal effort on my part. The documentation is clear and comprehensive, providing easy-to-follow steps and ensuring a hassle-free setup. The plug-and-play nature of the module significantly reduced downtime, allowing me to get my network back up and running in no time.

5 Helpful vote Comments

V***y

Verified Purchase

5.0

2023-11-26

I recently upgraded my network setup using the NVIDIA MMA4Z00-NS optical module and I must say, it exceeded my expectations in terms of performance and reliability.

5 Helpful vote Comments

M***b

Verified Purchase

5.0

2023-10-19

I recently had the opportunity to integrate NVIDIA MMA4Z00-NS optical modules into our data center infrastructure, and I must say, the experience has been nothing short of revolutionary.

5 Helpful vote Comments

Verified Purchase

{{comments.rating}}.0

Showing {{comments.replies.length}} comment

{{reply_items.text?reply_items.text:reply_items.topic}}By {{reply_items.author}}

{{comments.helpfulvote}} Helpful vote Comments

{{pageindex}}

Not yet rated . Be the first to Write a Review
