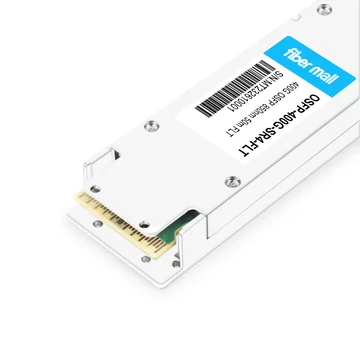

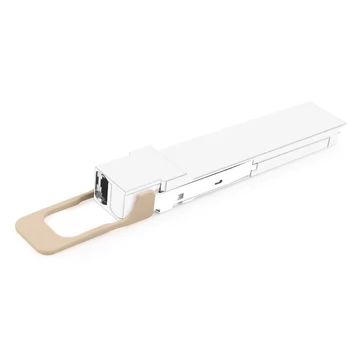

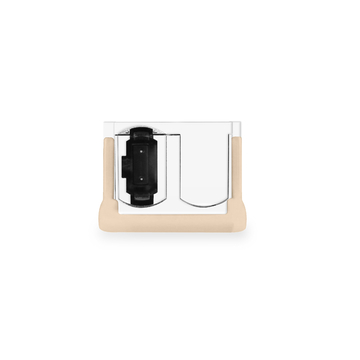

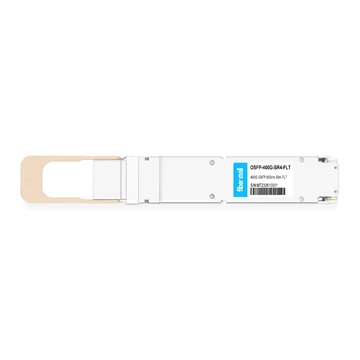

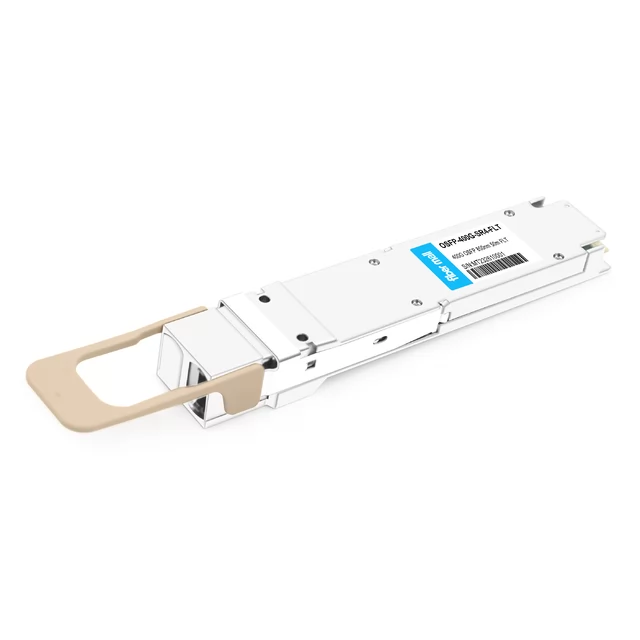

NVIDIA MMA4Z00-NS400 Compatible 400G OSFP SR4 Flat Top PAM4 Optical Transceiver Module (850nm MTP/MPO12 OM3/OM4 50m with FEC DDM)
Product Details
NVIDIA Compatible
MMA4Z00-NS400
Vendor Name
FiberMall
Form Factor
OSFP
Max Data Rate
425Gbps
Wavelength
850nm
Max Distance
30m on OM3/50m on OM4
Modulation Format
PAM4
Host Required
FEC
Connector
MPO-12 (APC)
Voltage Supply
3.3V
Cable Type
MMF
DDM Support
Yes
Transmitter Type
850nm VCSEL
Receiver Type
PIN
TX Power
-4.6~+4.0dBm
Receiver Sensitivity
< -4.6dBm
Operation Temperature
0 to 70°C (32 to 158°F)
Maximum Power
< 8W
Protocols
OSFP MSA, IEEE 802.3bs
Application
400G Ethernet, Data Center Interconnect, Infiniband Interconnects
Quality Assurance
Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Our Advantages
Keep In Stock
Fast Delivery
Professional Service
Technical Support
Worry-Free Guarantee
Shopping Satisfactorily
Premium Quality
High stability
Rigorous Industrial ProductTesting
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
High and low temperature cycle,aging test to ensure good temperature characteristics
Mechanical Impact
Mechanicalvibration testing to ensure the stability of products
MTBF(Mean Time between Failures)testing ensure high stablility
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

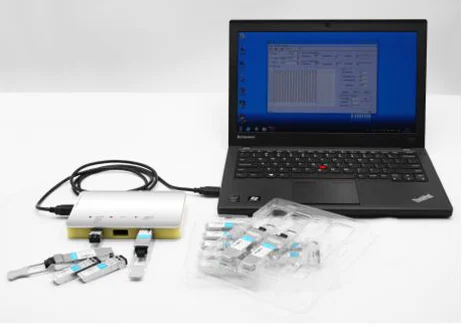

Coding (EEPROM Programming)

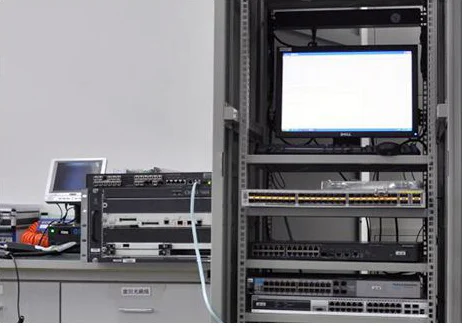

Testing system
Switch Introduction
NVIDIA Quantum-2 Switches
Network Card Introduction
e
Network Card List
Notes:
1. 100G can be supported as either 4x25G NRZ or 2x50G.
2. 200G can be supported as either 4x50G or 2x100G.
3. 400G is supported as 4x100G.
4. QSFP112 is backwards compatible with QSFP56 and QSFP28.
