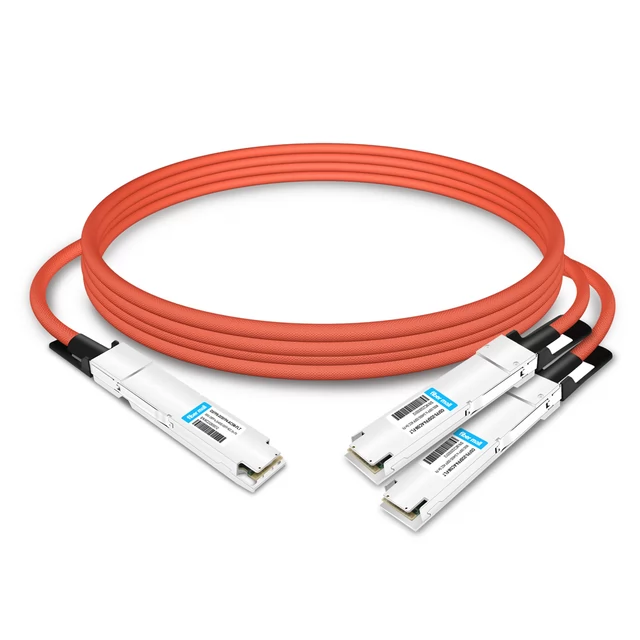

NVIDIA MCA7J60-N005 Compatible 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout ACC (OSFP to OSFP Breakout Active Copper Cable 26AWG 5m)
Product Details
NVIDIA Compatible
MCA7J60-N005
Vendor Name
FiberMall
Connector
OSFP to OSFP
Max Data Rate
800Gb/s
Wire Gages
AWG 30
Cable Length
5m (16ft)
Jacket Material
Hair Tail Technology Net
Minimum Bend Radius
89mm
Operation Temperature
0~ 70 °C (32 to 158°F)
Modulation Format
PAM4
Protocols
OSFP MSA, CMIS, ETC 800GBASE-CR8
Application
800G InfiniBand NDR and Ethernet
Quality Assurance
Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Our Advantages
Keep In Stock
Fast Delivery
Professional Service
Technical Support
Worry-Free Guarantee
Shopping Satisfactorily
Premium Quality
High stability
Rigorous Industrial ProductTesting
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
High and low temperature cycle,aging test to ensure good temperature characteristics
Mechanical Impact
Mechanicalvibration testing to ensure the stability of products
MTBF(Mean Time between Failures)testing ensure high stablility
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Coding (EEPROM Programming)
Testing system
Switch Introduction
NVIDIA Quantum-2 Switches
Network Card Introduction
e
Network Card List
Notes:
1. 100G can be supported as either 4x25G NRZ or 2x50G.
2. 200G can be supported as either 4x50G or 2x100G.
3. 400G is supported as 4x100G.
4. QSFP112 is backwards compatible with QSFP56 and QSFP28.
Switch to Switch (NDR) - Optics
Switch to Switch (NDR) - Copper
Switch to Switch (NDR) - Active Copper & Direct Attached Copper
