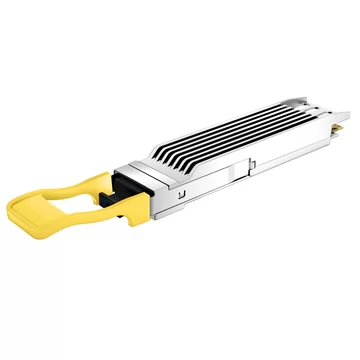

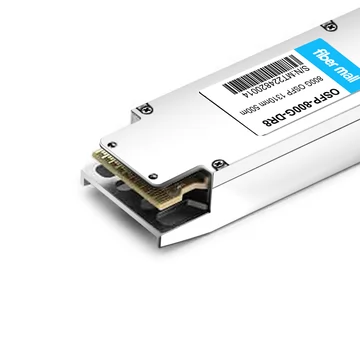

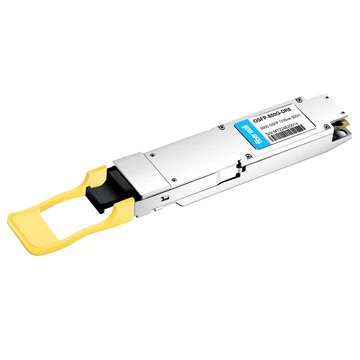

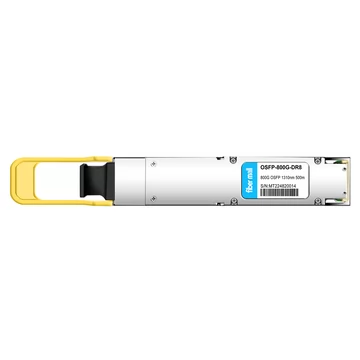

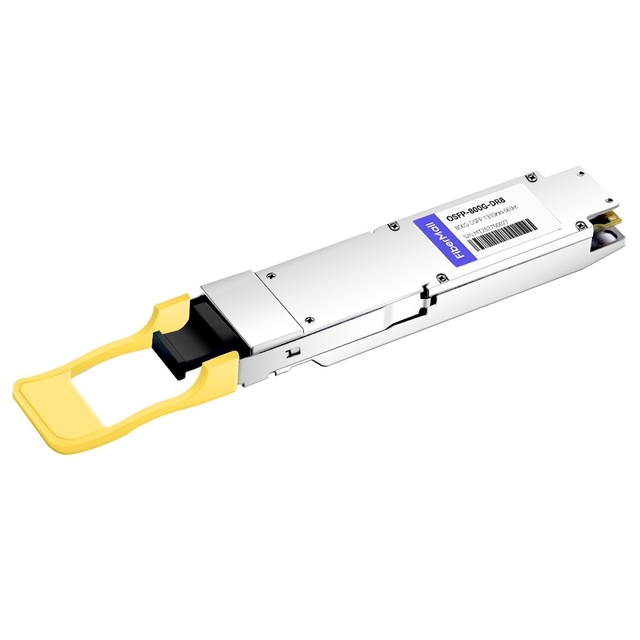

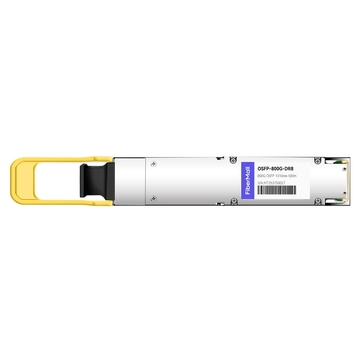

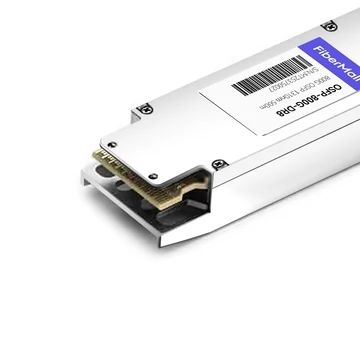

OSFP-800G-DR8 OSFP 8x100G DR PAM4 1310nm MPO-16 500m SMF DDM Optical Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

FM PN:
OSFP-800G-DR8
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

OSFP-800G-DR8 OSFP 8x100G DR Optical Transceiver Module (SMF, 1310nm, 500m, MPO-16, DDM)

OSFP 8x100G DR transceiver modules are designed for 800 Gigabit Ethernet links over 500m of single-mode fiber. The module has 8 independent channels of electrical input/output, each operating at up to 106.25Gbps. This transceiver consists of two transmitter/receiver units, with each operating on a set of wavelengths on the ITU G.694.2 CWDM grid at 1310nm. The module's transmitter path consists of a bidirectional PAM4 re-timer ASIC integrated with a silicon photonic laser and two 4-channel modulator drivers. On the receiver path, 8 photodiodes and two 4-channel TIA arrays are used, along with a PAM4 re-timer.

Product Details

FiberMall P/N OSFP-800G-DR8Vendor Name FiberMall
Form Factor OSFPMax Data Rate 850Gbps(8x 106.25Gbps)
Wavelength 1310nmMax Distance 500m
Modulation Format PAM4Host Required FEC
Connector MTP/MPO-16Voltage Supply 3.3V
Cable Type SMFDDM Support Yes
Transmitter Type EMLReceiver Type PIN
TX Power -5.9~+4.0dBmReceiver Sensitivity < -3.9dBm
Operation Temperature 0 to 70°C (32 to 158°F)Maximum Power < 18W
Protocols CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cuApplication 800G Ethernet, Data Center Interconnect, Infiniband Interconnects


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

OSFP 8x100G DR8 Optical Transceiver Module | FiberMall

our advantages

OSFP 8x100G DR8 Optical Transceiver Module | FiberMall

Keep In Stock

Fast Delivery
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall

Professional Service

Technical Support
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

OSFP 8x100G DR8 Optical Transceiver Module | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

OSFP 8x100G DR8 Optical Transceiver Module | FiberMall
Coding(EEPROM Programming)
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall
Testing system

Partial test demonstartion

OSFP 8x100G DR8 Optical Transceiver Module | FiberMall
Cisco N9k-C92160YC-X-C
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall
HP ProCurve 5406zl J8697A
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall
ARISTA 7-50QX-32
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall
Juniper EX4300
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall
HW S5700-28X-L1-AC
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall
Brocade VDX 6720
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall
DELL S4048 ON
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall
DATACOM DM4100
OSFP 8x100G DR8 Optical Transceiver Module | FiberMall
H3C LS-5500-28C-S
Product Features
v 0 to 500m over SMF with KP4 FEC supported at the Host side
v MPO16 connector
v Triple Rate operation: 106.25Gbps (PAM4), 53.125Gbps (PAM4), 26.5625Gbps (NRZ)
v Silicon Photonics 1310nm transmitter
v PIN and TIA array on the receiver side
v Power dissipation < 18W
v Case temperature range: 0°C to 70°C(commercial)
v Safety Certification: TUV/UL/FDA*1
v RoHS Compliant
v Application for 8x100G Ethernet, 2x400G Ethernet, 1x800G Ethernet, 2x200G Ethernet
