H3C QSFP-40G-BIDI-WDM850 40G QSFP+ SWDM4 Transceiver | FiberMall

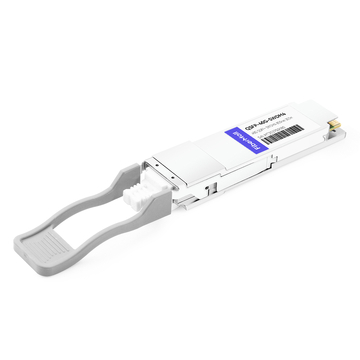

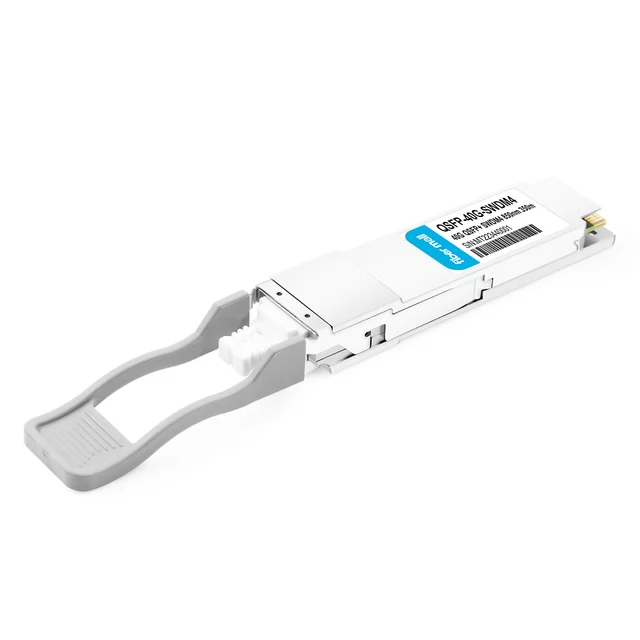

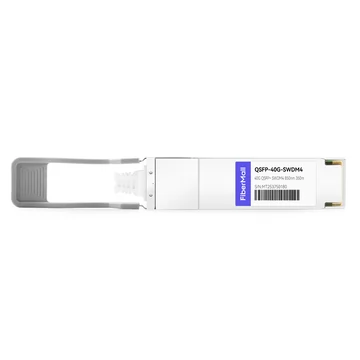

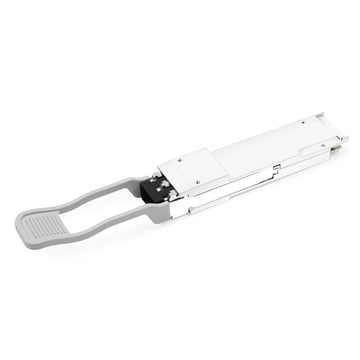

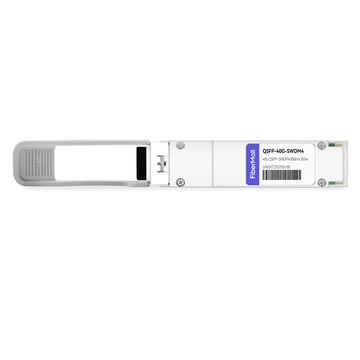

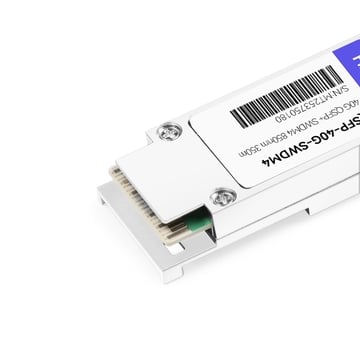

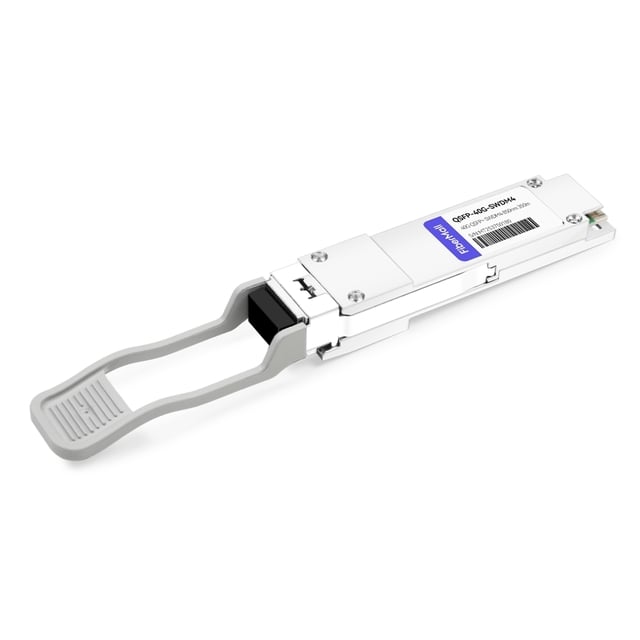

H3C QSFP-40G-BIDI-WDM850 Compatible 40G QSFP+ SWDM4 850nm-940nm 350m LC MMF DDM Optical Transceiver

Name: H3C QSFP-40G-BIDI-WDM850 Compatible 40G QSFP+ SWDM4 850nm-940nm 350m LC MMF DDM Optical Transceiver
Brand: fibermall
SKU: 18977
Price: 249.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18977

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall; H3C

Transceiver Type: QSFP-40G-SR4-MM850; QSFP-40G-CSR4-MM850; QSFP-40G-LR4-SM1310; QSFP-40G-BIDI-SR-MM850; QSFP-40G-BIDI-WDM850; QSFP-40G-IR4-PSM1310; QSFP-40G-LR4-PSM1310; QSFP-40G-LR4-WDM1300; QSFP-40G-LR4L-WDM1300; QSFP-40G-ER4-SM1310; QSFP-40G-ER4-WDM1300

FM PN:

QSFP-40G-SWDM4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

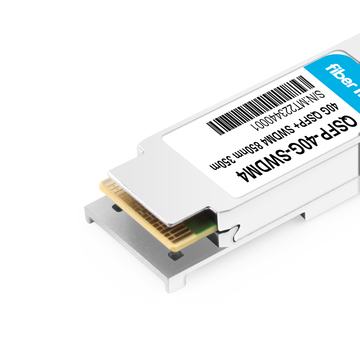

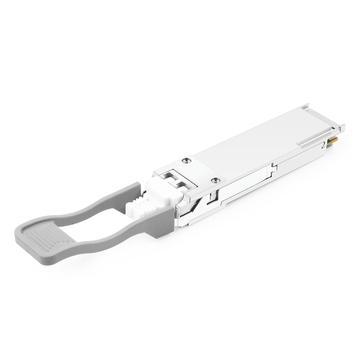

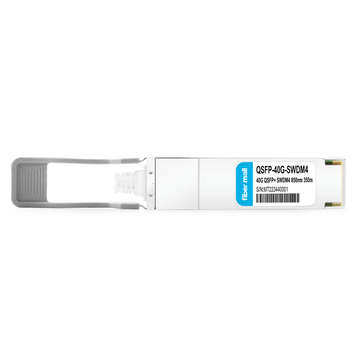

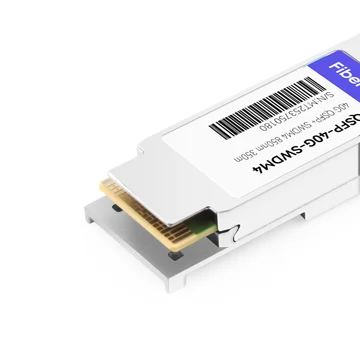

H3C QSFP-40G-BIDI-WDM850 QSFP-40G-SWDM4 Optical Transceiver (850nm, 880nm, 910nm, 940nm MMF 350m LC DDM)

The 40G QSFP+ SWDM4 transceiver modules are designed for use in 40G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region 10Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA.

Product Details

H3C Compatible	QSFP-40G-BIDI-WDM850	Vendor Name	FiberMall
Form Factor	QSFP+	Max Data Rate	41.2Gb/s
Wavelength	850nm, 880nm, 910nm, 940nm	Max Distance	240m@OM3/350m@OM4
Connector	Duplex LC	Transmitter Type	850mm VCSEL
Cable Type	MMF	Receiver Type	PIN
TX Power	-7.5~+3.0dBm	Receiver Sensitivity	< -9.1dBm
Protocols	40Gigabit Ethernet, 10Gigabit Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

?Product Features

? Compliant with QSFP+ MSA, SWDM MSA, SFF-8636,IEEE 802.3ba

? Hot-pluggable QSFP+ form factor

? 4x10Gb/s VCSEL-based SWDM transmitter

? Supports 41.2Gbps aggregate bit rate

? Power dissipation<3.5W

? Maximum link length of 240m on OM3 MMF and 350m on OM4 MMF

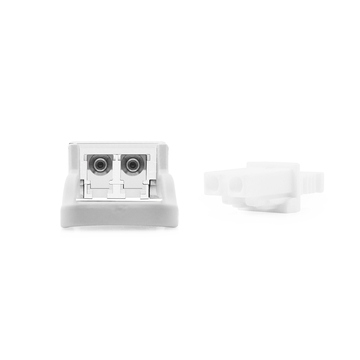

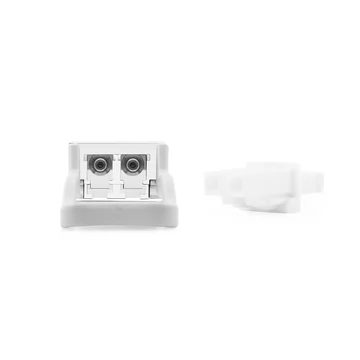

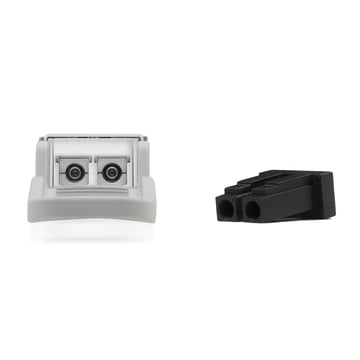

? Duplex LC receptacles

? XLPPI electrical interface

? RoHS compliant

? XLPPI electrical interface
