Passive CWDM Double Fiber Mux & Demux Module 16 CH (1310-1610nm) 1U Rack

SKU:40037
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
{{detail_data.feedbacks.count}} Questions
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
FM PN: FM-CWMD16-3161
Wavelength
Customized
1310-1610
Ship From:
China
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States {{now_chooseship?now_chooseship.name:''}}
Express shipping service estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Recently Viewed

16 Channels 1310 to 1610nm LC/UPC Dual Fiber CWDM MUX DEMUX 1U Rack Mount Chassis

Product Details


Operating Wavelength 16 Channels 1310-1610nmChannel Space 20nm
Passband ITU±6.5nmInsertion Loss ≤3.6dB
Directivity ≥ 50dBReturn Loss ≥45dB
Pass Band Ripple ≤ 0.5dBFiber Type SMF-28e or Customer Specified
Adjacent Channel Isolation ≥30dBNon-adjacent Channel Isolation ≥40dB
Polarization Dependent Loss ≤0.2dBPolarization Mode Dispersion ≤0.1ps

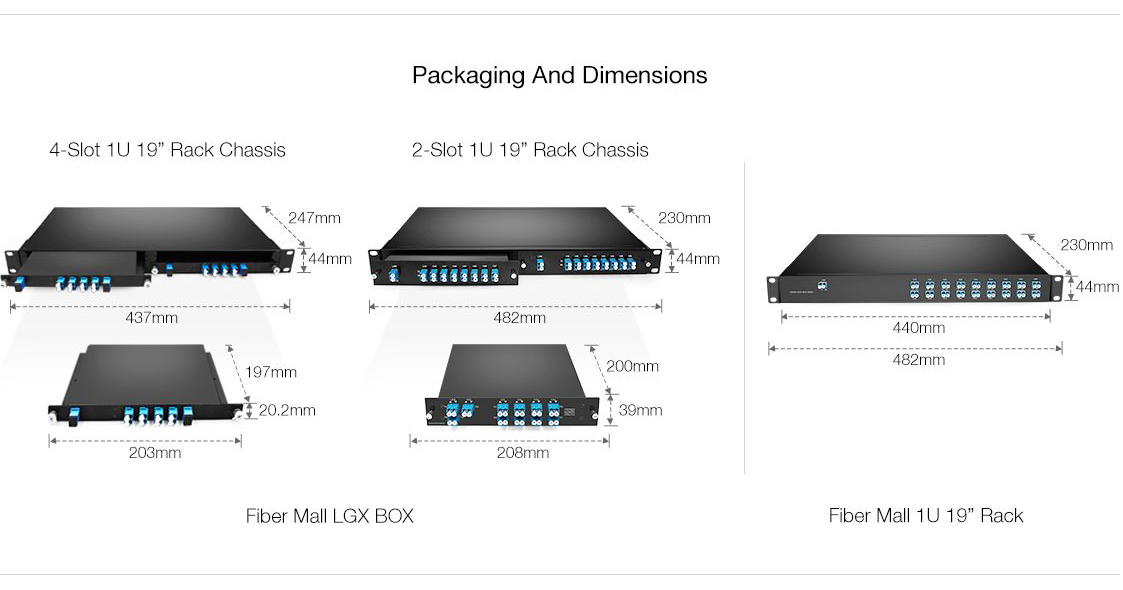

Maximum Optical Power 500mWDimensions (HxWxD) 44x482x230mm
Operating Temperature -20°C~+70°CStorage Temperature -40°C~+85°C

Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
