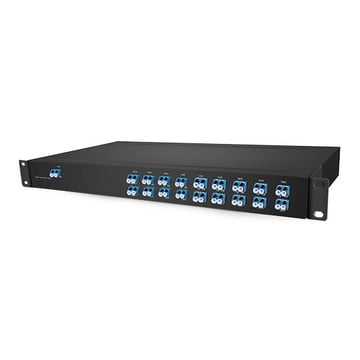

Passive CWDM Double Fiber Mux & Demux Module 18 CH (1270-1610nm) LC/UPC 1U Rack

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:40039
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Wavelength
1270-1610
FM PN:
FM-CWMD18-2761
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

18 Channels 1270 to 1610nm LC/UPC Dual Fiber CWDM MUX DEMUX 1U Rack Mount Chassis

Product Details

Operating Wavelength 18 Channels 1270-1610nmChannel Space 20nm
Passband ITU±6.5nmInsertion Loss ≤5.4dB
Directivity ≥ 50dBReturn Loss ≥45dB
Pass Band Ripple ≤ 0.5dBFiber Type SMF-28e or Customer Specified
Adjacent Channel Isolation ≥30dBNon-adjacent Channel Isolation ≥40dB
Polarization Dependent Loss ≤0.2dBPolarization Mode Dispersion ≤0.1ps
Maximum Optical Power 500mWDimensions (HxWxD) 44x482x230mm
Operating Temperature -20°C~+70°CStorage Temperature -40°C~+85°C


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

CWDM MUX 4CH 8 Wavelengths 1270-1610nm Dual Fiber | FiberMall

our advantages

CWDM MUX 4CH 8 Wavelengths 1270-1610nm Dual Fiber | FiberMall

Short Lead time

Fast Delivery
CWDM MUX 4CH 8 Wavelengths 1270-1610nm Dual Fiber | FiberMall

Professional Service

Technical Support
CWDM MUX 4CH 8 Wavelengths 1270-1610nm Dual Fiber | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
CWDM MUX 4CH 8 Wavelengths 1270-1610nm Dual Fiber | FiberMall

Premium Quality

High stability
CWDM MUX 4CH 8 Wavelengths 1270-1610nm Dual Fiber | FiberMall CWDM MUX 4CH 8 Wavelengths 1270-1610nm Dual Fiber | FiberMall CWDM MUX 4CH 8 Wavelengths 1270-1610nm Dual Fiber | FiberMall

Product Specification

Number of channels 4 8 16
Wavelength range

CWDM:1270nm to 1610nm

DWDM:C Band, 100 GHZ or 50 GHZ

Insertion loss < 1.5dB < 2.5dB < 3.5dB
Isolation ratio of adjacent channels >30dB >30dB >30dB
Isolation ratio of non-adjacent channels >40dB >40dB >40dB
Return loss >45dB >45dB >45dB
Direction >50dB >50dB >50dB
Interface type All interfaces are LC type
Work temperature -40〜85℃
Storage temperature -40〜85℃
