1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:50054
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Length
1m
2m
3m
5m
7m
10m
FM PN:
MTP8LCFLOM4B01
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

8 Fibers MTP to LC Breakout Cable, 1M (Multimode OM4 50/125 MTP Fanout Cable)

Product Details

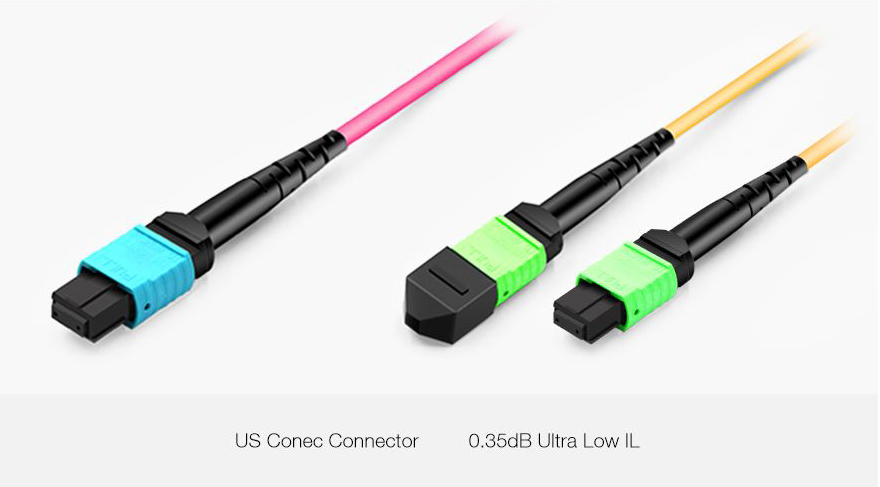

Connector A MTP Female (US Conec)Connector B LC UPC Duplex
Fiber Type OM4 50/125μm MultimodeWavelength 850/1300nm
Fiber Count 8 FibersDistance 1m (3ft)
Glass Fiber Corning ClearCurve®Cable Jacket LSZH
MTP Connector IL 0.35dB Max (0.15dB Typ.)LC Connector IL ≤0.2dB
MTP Connector RL ≥20dBLC Connector RL ≥20dB
Attenuation at 850nm ≤2.3 dB/kmAttenuation at 1300nm ≤0.6 dB/km
Cable Diameter 3.0mmFiber Color Aqua/Violet
Fan-Out Diameter 2.0mmMinimum Bend Radius 7.5mm
Installation Tensile Load 100 NLong-Term Tensile Load 50 N
Operating Temperature -10°C to +70°CStorage Temperature -40°C to +85°C


Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

our advantages

1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

Short Lead Time

Fast Delivery
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

Professional Service

Technical Support
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

Worry-Free Guarantee

Shopping Satisfactorily
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

Premium Quality

High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. Fiber Mall adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet
3D Interferometer Test
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet
End-Face Inspection
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet
Insertion Loss and Return Loss Testing

Specifications

Connectors

1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

Fiber Count

8 fibers

MTP-LC Harness Cables

1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

12 fibers

MTP Trunk Cables / MTP-LC Harness Cables

1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

24 fibers

MTP Trunk Cables

1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

Fiber Type

1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet
OM3 50/125 MMF
Corning ClearCurve Multimode Fiber
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet
OM4 50/125 MMF
Corning ClearCurve Multimode Fiber
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet
OS2 9/125 SMF
Corning SMF-28 Ultra Optical Fiber

Gender Type

1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet
MTP Male With Pins
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet
MTP Female Without Pins

Assembly Structure Schematic Diagram

1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

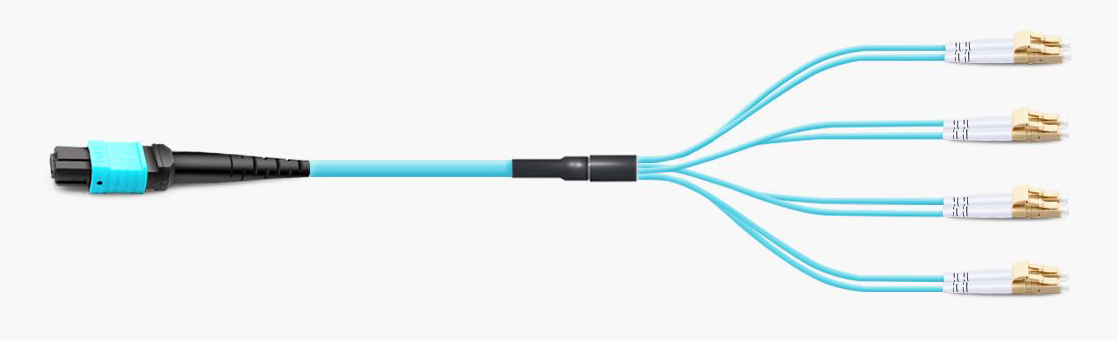

8 Fibers MTP-LC Harness Cables
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

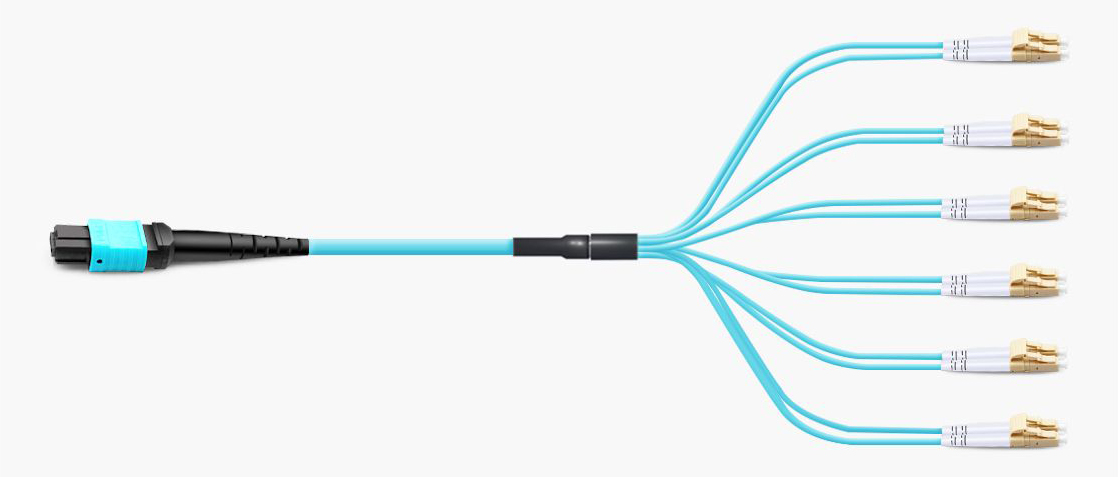

12 Fibers MTP-LC Harness Cables
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet

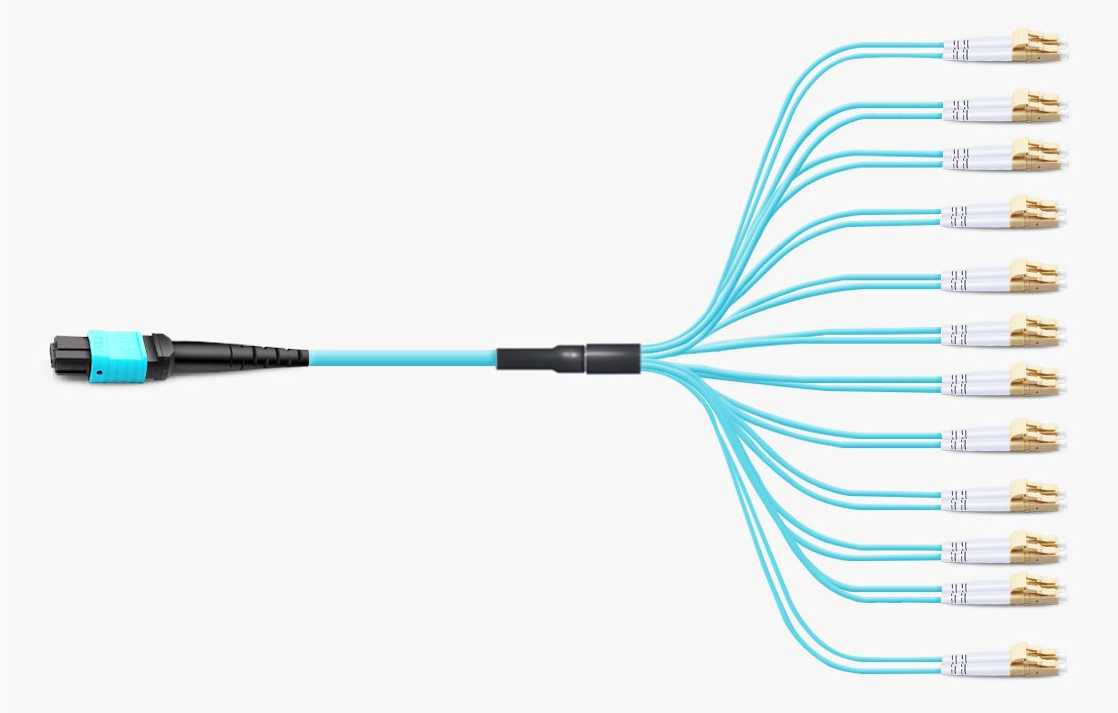

24 Fibers MTP-LC Harness Cables

Packaging & Labeling

1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet
Single Package
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet
Small Quantity Package
1m (3ft) MTP Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers, Type B, Elite, LSZH, Aqua/Violet
Bulk quantity package
