| Flash/SDRAM | 4G/2G | Packet Buffer | 9MB |
| Switching Capacity | 2.4Tbps | Packet Forwarding Rate | 660Mpps |
| Dimensions (W×D×H) (unit: mm) | 440×360×44 | Weight | <7.5kg |

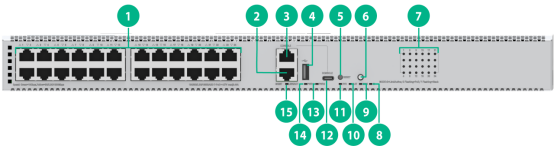

| Console Port | 1 | Ethernet Port for Management | 10/100/1000Base-T port: 1 |
| USB Port | 1 | Service ports | 24×100M/1G/2.5G/5G/10G Base-T(UPOE) |
| Expansion Card Slot | 1 (8-Port 25G SFP28 Interface Module) | Input Voltage (PSR600-54A-B) | AC:90V~264V DC:180V~320V |
| Power Consumption (PSR600-54A-B) | Dual AC:1307W Dual DC:1307W | MTBF (Year) | 83.3 |
| MTTR (Hour) | 1 | Working Temperature | -5 ºC to 45 ºC (23°F~113°F) |
| Relative Humidity of Working Environment | 5 % to 95 % (non-condensing) |
| Model | Speed | Ports | Throughput | Form Factor | Cooling | Supported Operating Systems | Key Features |
| S5590-24X4YC-EI | 10G | 24×1/10G SFP+/4×25G SFP28 | 1.44 Tbps | 1U | Air | Comware | IRF2, SDN/OpenFlow. OSPF/BGP; high availability (M-LAG). VxLAN, advanced security |
| S5590-24UXMC-EI | 10G | 24×Multigigabit Base-T PoE++ | 2.4 Tbps | 1U | Air | Comware | IRF2, SDN, OSPF/BGP; PoE++(90W/port), M-LAG, VxLAN, MACsec |
| S6520X-54HF-EI | 10G/100G | 48×1/10G SFP+/6×100G QSFP28 | 2.16 Tbps | 2U | Air | Comware | IRF, SDN, OSPF/BGP; multicast, high resiliency advanced telemetry |
| S6520-22SG-SI | 10G | 8×GE+14×1/10GSFP+ | 2.56 Tbps | 1U | Air | Comware | IRF2, SDN/OpenFlow, OSPF/BGP; VXLAN, high availability, QoS |
| S6520X-26C-SI | 10G | 24×1/10G SFP+ | 2.56 Tbps | 1U | Air | Comware | RF, SDN, OSPF/BGP; multicast, flexible expansion, security features |
| S6520X-54QC-EI | 10G/40G | 48×1/10G SFP+/2×40G QSFP+ | 1.44 Tbps | 2U | Air | Comware | IRF, SDN, OSPF/BGPuplink fexibility. esiliency, multicast |
| S6520X-54HC-UPWR-EI | 10G/100G | 24×Multigigabit Base-T PoE++ +4×100G QSFP28 | 1.44 Tbps | 2U | Air | Comware | IRF, SDN, OSPF/BGP; PoE++support, high availability, VxLAN |
To ensure timely heat dissipation and maintain system stability, the switch employs a high-performance cooling system. When planning the installation location, always account for adequate site ventilation.

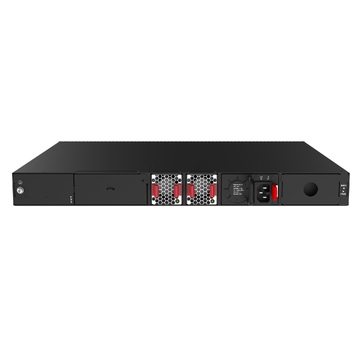

The switch features removable fan trays that support airflow in either direction—from the port side to the power supply side, or vice versa—depending on the fan tray type selected. All fan trays installed on the switch must be of the same model.
Figure1 Airflow direction
Figure2 Airflow direction
Figure3 Airflow direction
