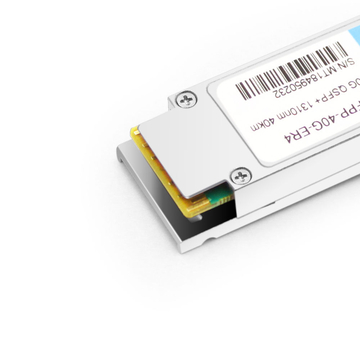

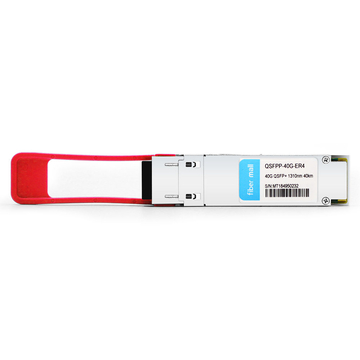

HPE H3C JL306A Compatible 40G QSFP+ ER4 1310nm (CWDM4) 40km LC SMF DDM Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:10146
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
FM PN:
QSFPP-40G-ER4
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

HPE H3C JL306A Compatible 40G QSFP+ ER4 Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm SMF 40km LC DDM)

The QSFPP-40G-ER4 is a transceiver module designed for 40km optical communication applications. The design is compliant with 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDMoptical signals and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4CWDM channels signals and converts them to 4-channel output electrical data.

Product Details

HPE Compatible JL306AVendor Name FiberMall
Form Factor QSFP+Max Data Rate 40Gbps
Wavelength 1271nm, 1291nm
1311nm, 1331nm
Max Distance 40km
Connector LC DuplexTransmitter Type 4 Lanes CWDM DFB
Cable Type SMFReceiver Type APD
TX Power -3.7~4.5dBmReceiver Sensitivity < -22dBm
Protocols OTN OTU3, 40G Ethernet, Infiniband, Fiber Channel, SATA/SAS3, MSA CompliantOperation Temperature 0 to 70°C (32 to 158°F)


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall

our advantages

HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall

Keep In Stock

Fast Delivery
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall

Professional Service

Technical Support
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall
Coding(EEPROM Programming)
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall
Testing system

Partial test demonstartion

HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall
Cisco N9k-C92160YC-X-C
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall
HP ProCurve 5406zl J8697A
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall
ARISTA 7-50QX-32
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall
Juniper EX4300
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall
HW S5700-28X-L1-AC
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall
Brocade VDX 6720
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall
DELL S4048 ON
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall
DATACOM DM4100
HPE X140 JL306A 40G QSFP+ ER4 Optical Transceiver | FiberMall
H3C LS-5500-28C-S

Product Features

v 4 CWDM lanes MUX/DEMUX design

v Up to 11.2Gbps per channel bandwidth

v Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard

v QSFP MSA compliant

v Up to 40 km transmission

v Compliant with QDR/DDR Infiniband data rates

v Single +3.3V power supply operating

v RoHS Compliant Part

v Supports 40 Gigabit Ethernet interconnectsDatacom/Telecom switch & router connections, Data aggregation, and 40G BASE-ER4 Ethernet Links.
