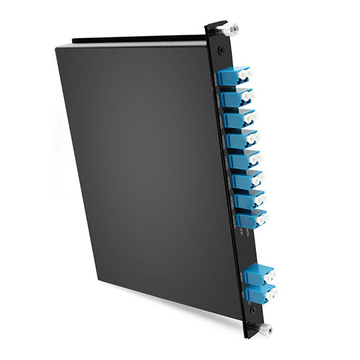

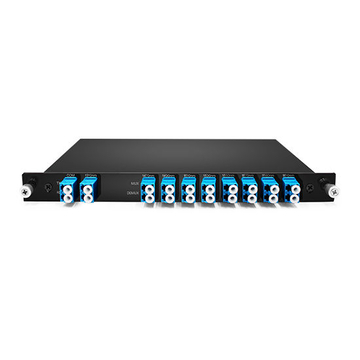

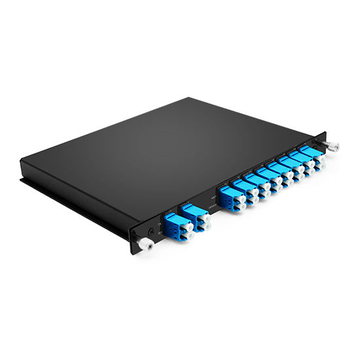

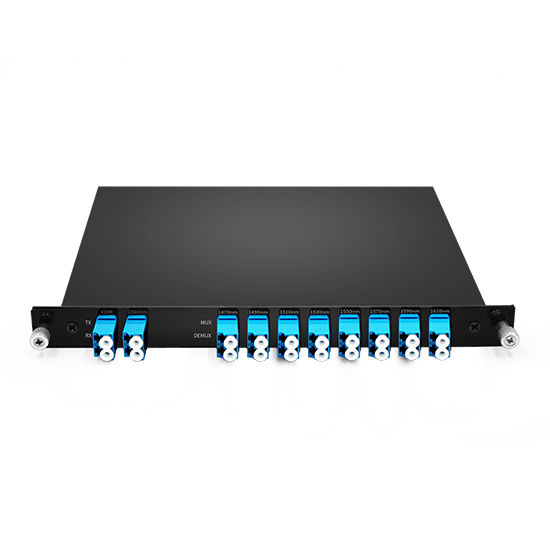

Passive CWDM Double Fiber Mux & Demux Module 8CH (XX-XXnm Customer Specified) & Additional 1310 Window LC/UPC LGX BOX

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:40036
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
FM PN:
FM-CWMD8-XXXX+31
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

8 Channels 1xx0 to 1xx0nm Customized With 1310nm Port LC/UPC Dual Fiber CWDM MUX DEMUX LGX BOX

Product Details

Operating Wavelength 8 Channels 1270-1610nmChannel Space 20nm
Passband ITU±6.5nmInsertion Loss ≤2.4dB
Insertion Loss @ Mon ≤24.3dBReturn Loss ≥45dB
Directivity ≥50dBFiber Type SMF-28e or Customer Specified
Adjacent Channel Isolation ≥30dBNon-adjacent Channel Isolation ≥40dB
Polarization Dependent Loss ≤0.2dBPolarization Mode Dispersion ≤0.1ps
Maximum Optical Power 500mWDimensions (HxWxD) 20.2x203x197mm
Operating Temperature -20°C~+70°CStorage Temperature -40°C~+85°C


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

CWDM Double Fiber Mux Demux 8CH 1310 Window Customized | FiberMall

our advantages

CWDM Double Fiber Mux Demux 8CH 1310 Window Customized | FiberMall

Short Lead time

Fast Delivery
CWDM Double Fiber Mux Demux 8CH 1310 Window Customized | FiberMall

Professional Service

Technical Support
CWDM Double Fiber Mux Demux 8CH 1310 Window Customized | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
CWDM Double Fiber Mux Demux 8CH 1310 Window Customized | FiberMall

Premium Quality

High stability
CWDM Double Fiber Mux Demux 8CH 1310 Window Customized | FiberMall CWDM Double Fiber Mux Demux 8CH 1310 Window Customized | FiberMall CWDM Double Fiber Mux Demux 8CH 1310 Window Customized | FiberMall

Product Specification

Number of channels 4 8 16
Wavelength range

CWDM:1270nm to 1610nm

DWDM:C Band, 100 GHZ or 50 GHZ

Insertion loss < 1.5dB < 2.5dB < 3.5dB
Isolation ratio of adjacent channels >30dB >30dB >30dB
Isolation ratio of non-adjacent channels >40dB >40dB >40dB
Return loss >45dB >45dB >45dB
Direction >50dB >50dB >50dB
Interface type All interfaces are LC type
Work temperature -40〜85℃
Storage temperature -40〜85℃
