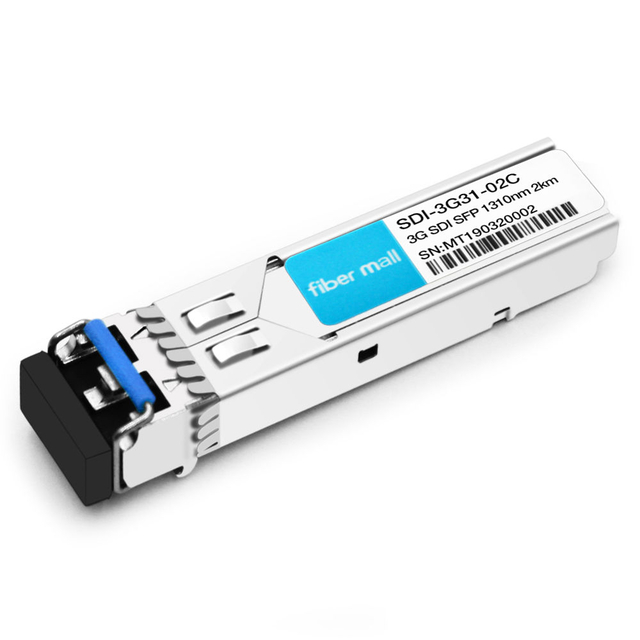

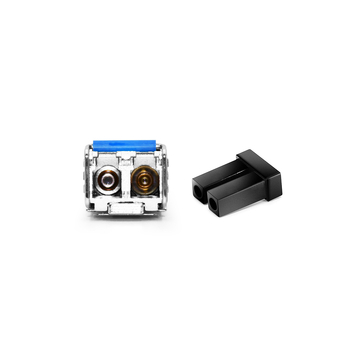

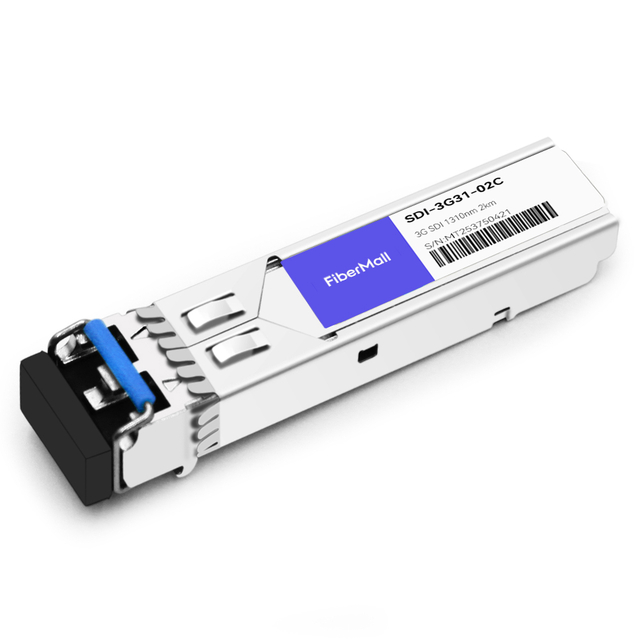

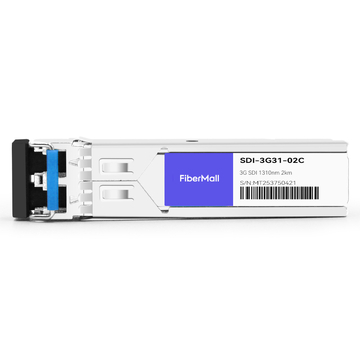

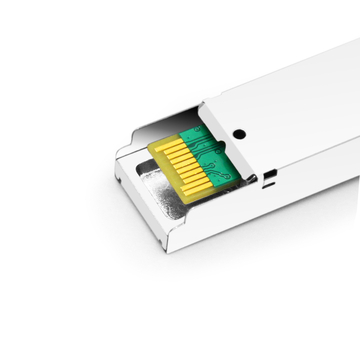

3G SDI HD Video SFP 1310nm 2km Transceiver | FiberMall

Add to wish

SDI-3G31-02C 3Gps MSA SDI 1310nm 2km SMF LC DDM Transmitter & Receiver Video Pathological Patterns Transceiver Module

Name: SDI-3G31-02C 3Gps MSA SDI 1310nm 2km SMF LC DDM Transmitter & Receiver Video Pathological Patterns Transceiver Module
Brand: fibermall
SKU: 17077
Price: 60.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: SDI-3G31-02C 3Gps MSA SDI 1310nm 2km SMF LC DDM Transmitter & Receiver Video Pathological Patterns Transceiver Module

$ 60.00
Available

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

SKU:17077

$ 60.00

Compatible: FiberMall

Transceiver Type: SDI-3G31-02C; SDI-3G31-20C; SDI-3G31-40C; SDI-3G55-40C; SDI-12G31-10C; SDI-12G31-20C

FM PN:

SDI-3G31-02C

Ship From:

Asia

Shipping:

$ 29.66

to United States Via DHL

Estimated delivery time : 3-5 working days. See details

Quantity:

Total Price:

$ 60.00

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

3Gps MSA SDI Transmitter & Receiver Video Pathological Patterns Transceiver Module (1310nm SMF 2km LC DDM)

Product Details

FiberMall P/N	SDI-3G31-02C	Vendor Name	FiberMall
Package	SFP	Data Rate	3Gb/s
Wavelength	1310nm	Max Distance	2km
TX Power	-10.0~-3.0dBm	Transmitter Type	1310nm FP
Receiver Sensitivity	< -18.0dBm	Receiver Type	PIN
Connector	Duplex LC	Power Supply	3.3V Single Power Supply
Operation Temperature	0 to 70°C (32 to 158°F)	Video Pathological Patterns Support	Yes
