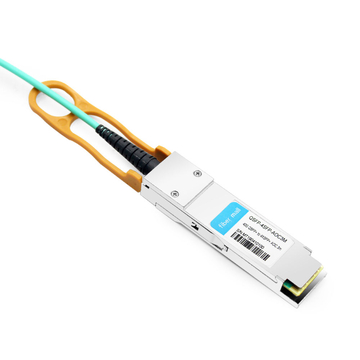

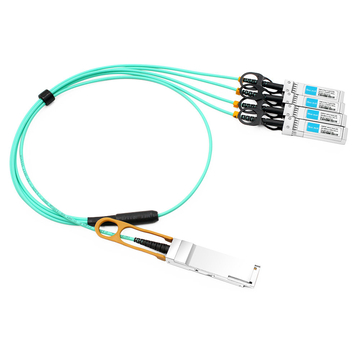

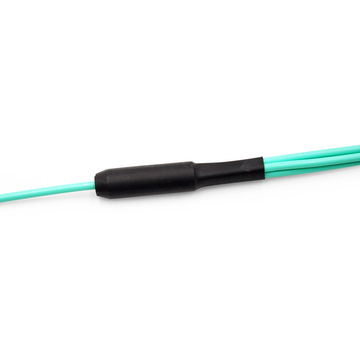

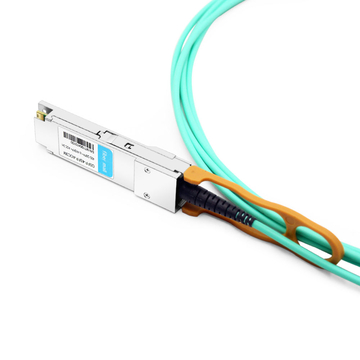

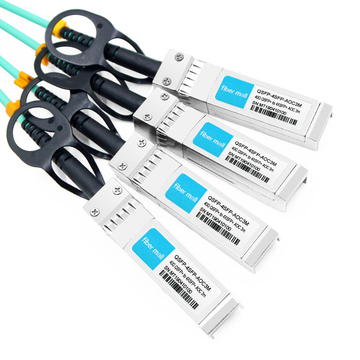

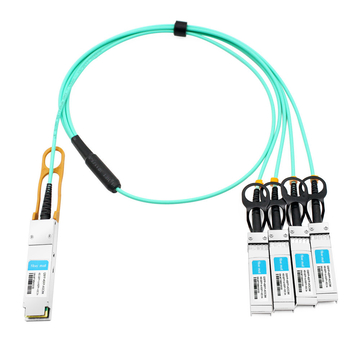

EdgeCore ET6402-10AOC-3M Compatible 3m 40G QSFP+ to 4x 10G SFP+ Active Optical Breakout Cable (QSFP+ to SFP+ AOC Breakout Cable, Active OM3 3m)
The 40G QSFP+ Breakout AOC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+Active Optical Cable to 4× SFP+ Active Optical Cable break-out solution. It is intended for 40G to 4× 10G applications. This AOC is a high-performance cable for short-range multi-lane data communication and interconnects applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G InfiniBand QDR applications and are backward compatible with the 4 ×5GIBDDR and 4 × 2.5G IB single IB SDR applications.
Product Details
| EdgeCore Compatible | ET6402-10AOC-3M | Vendor Name | FiberMall |
| Connector | 40G QSFP+ to 4xSFP+ | Max Data Rate | 40Gbps |
| Cable Length | 3m (9.8ft) | Fiber Cable | OM3 MMF |
| Jacket Material | OFNP | Minimum Bend Radius | 7.5mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Protocols | 40G InfiniBand 8x DDR, 4x QDR,
10/40 Gigabit Ethernet, Fibre Channel |
Quality
Assurance
Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
![EdgeCore ET6402-10AOC-3M 40G QSFP+ Breakout AOC | FiberMall]()
Keep In Stock
- Fast Delivery
![EdgeCore ET6402-10AOC-3M 40G QSFP+ Breakout AOC | FiberMall]()
Professional Service
- Technical Support
![EdgeCore ET6402-10AOC-3M 40G QSFP+ Breakout AOC | FiberMall]()
Worry-Free Guarantee
- Shopping Satisfactorily
![EdgeCore ET6402-10AOC-3M 40G QSFP+ Breakout AOC | FiberMall]()
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
![EdgeCore ET6402-10AOC-3M 40G QSFP+ Breakout AOC | FiberMall]()
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
![EdgeCore ET6402-10AOC-3M 40G QSFP+ Breakout AOC | FiberMall]()
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
![EdgeCore ET6402-10AOC-3M 40G QSFP+ Breakout AOC | FiberMall]()
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
![EdgeCore ET6402-10AOC-3M 40G QSFP+ Breakout AOC | FiberMall]()
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
![EdgeCore ET6402-10AOC-3M 40G QSFP+ Breakout AOC | FiberMall]()
- Coding(EEPROM Programming)
![EdgeCore ET6402-10AOC-3M 40G QSFP+ Breakout AOC | FiberMall]()
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6
-
H3C S6850-56HF
-
Cisco N9K-C92160YC-X
-
HP JG510A
-
Juniper QFX5110-48S-AFO
-
Mellanox SN4700
-
Cisco-N9K-C93600CD-GX
-
NVIDIA QM9790
-
Ruijie RG-S6990-128QC2XS
