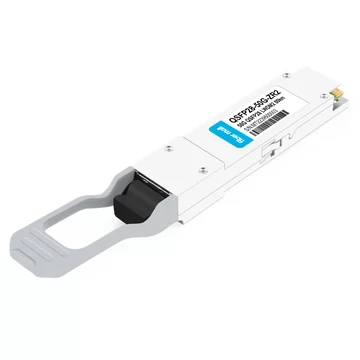

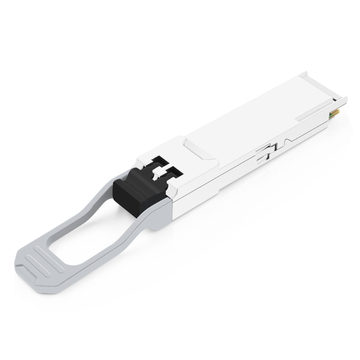

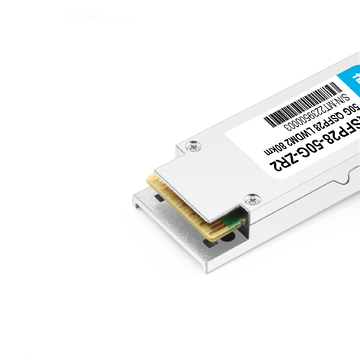

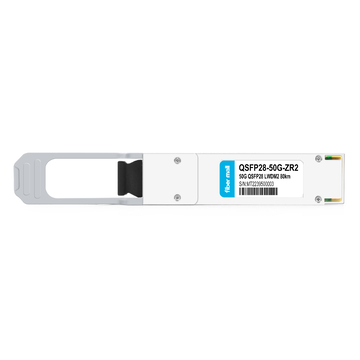

QSFP28-50G-ZR2 50G QSFP28 ZR2 1310nm (LAN WDM) 80km LC SMF DDM Transceiver Module

Name: QSFP28-50G-ZR2 50G QSFP28 ZR2 1310nm (LAN WDM) 80km LC SMF DDM Transceiver Module
Brand: fibermall
SKU: 18933
Price: 2000.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18933

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

Transceiver Type: QSFP28-50G-LR; SFP56-50G-SR; Q28-50G23-BX10; Q28-50G32-BX10; SFP56-50G-FRC; QSFP28-50G-ER; SFP56-50G-LRC; SFP56-50G-FRI; SFP56-50G-LRI; Q28-50G23-BX40; Q28-50G32-BX40; QSFP28-50G-ZR2

FM PN:

QSFP28-50G-ZR2

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

50G QSFP28 ZR2 Transceiver Module (1304.58nm, 1309.14nm SMF 80km Duplex LC DDM)

50GBASE-ZR2 QSFP28 is a high-performance transceiver that supports up to 80km link lengths over OS2 SMF. The maximum reach is 80km. The two transmitters are cooled 1310nm LAN-WDM lasers generating two optical 25Gbps output signals, which are multiplexed together at the optical output port. The two receivers are PIN Photodiodes which detect (after optical de-multiplexing) 2× 25Gbps optical input signals. This transceiver is compliant with QSFP28 MSA, SFF-8661, SFF-8679, and SFF-8636 standards. It is suitable for 50GBase Ethernet applications.

Product Details

FiberMall P/N	QSFP28-50G-ZR2	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	50Gbps
Wavelength	1304.58nm, 1309.14nm	Max Distance	80km
Connector	Duplex LC	Transmitter Type	LAN WDM EML
Cable Type	SMF	Receiver Type	PIN with SOA
TX Power	+2~+6.5dBm	Receiver Sensitivity	< -26.4dBm
Protocols	MSA Compliant, SFF-8665 and SFF-8679	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

50G QSFP28

Product Features

 Supports 50GBASE 50GE

 Lane bit rate 26.5625 Gb/s 50GE

 Up to 80km transmission on SMF

 LAN WDM EML laser and PIN receiver with SOA

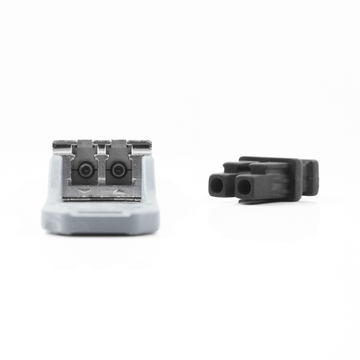

 QSFP28 MSA package with duplex LC connector

 Single +3.3V power supply

 Maximum power consumption 5.5 W

 High-Speed Electrical Interface Compliant with CAUI4

 Compliant to SFF-8665 and SFF-8679

 Complies with EU Directive 2015/863/EU

 50GBASE-ZR2
