40G QSFP 100G QSFP28 Dual fiber to Single fiber Converter | FiberMall

40G QSFP+ or 100G QSFP28 LR4 ER4 ZR4 Dual fiber to Single fiber Converter, TX/RX port LC/UPC, Line Port SC/APC Plug-in LGX Module

Name: 40G QSFP+ or 100G QSFP28 LR4 ER4 ZR4 Dual fiber to Single fiber Converter, TX/RX port LC/UPC, Line Port SC/APC Plug-in LGX Module
Brand: fibermall
SKU: 40098
Price: 120.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:40098

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

FM PN:

FM-Fiber-D-S

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

40G QSFP+ or 100G QSFP28 LR4 ER4 ZR4 Dual Fiber To Single Fiber Converter (1310nm, LC/UPC, SC/APC, SMF-28e)

Product Details

Wavelength	1260~1340nm	Rate	40G/100G
Insertion Loss	≤ 1dB	Technology	TFF (Thin Film Filter)
Line Insertion Loss	≤ 2.0dB	Isolation	≥35dB
Polarization Dependent Loss	≤ 0.1ps	Return Loss	≥ 45dB
TDL (dB)	≤0.15dB	PMD (ps)	≤0.055nm
Directivity	≥ 45dB	Power handling	≤500mW
Fiber Type	SMF-28e	Connector	LC/UPC, SC/APC
Temperature	-40 to 85°C	Net Weight	LGX BOX : 0.5KG

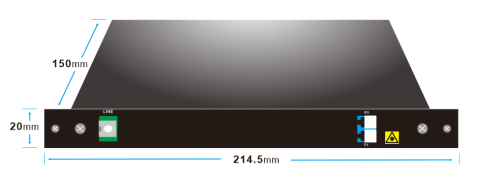

Dimensions (HxWxD)	LGX BOX: 214.515020mm

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

: Short Lead time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

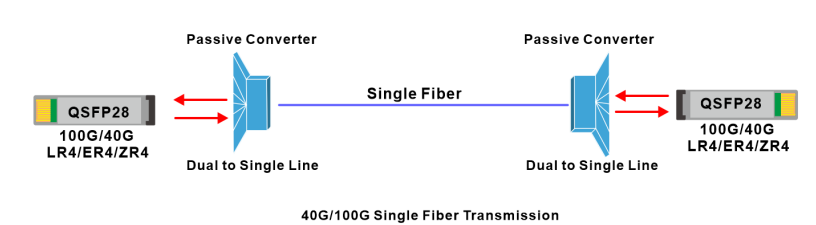

Dual fiber 100G transceiver in single fiber transmission application:

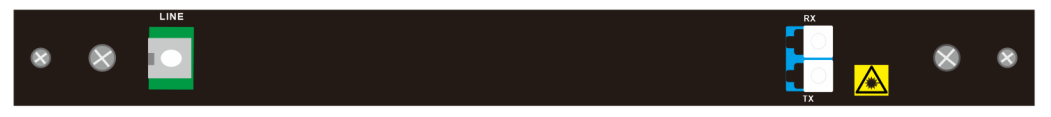

Product Panel

40G/100G Dual fiber to single fiber Converter

Package Information

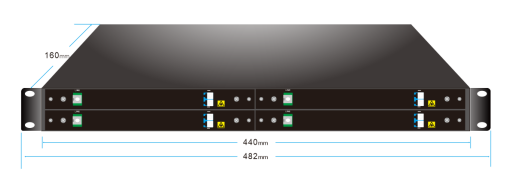

Plug-in LGX Box 4-Slot 1U Rack for LGX BOX

Fiber Converter

Product Features

v Supports 40G/100G LR4, ER4, ZR4, dual fiber to single fiber

v Operation wave 1260~1340nm

v TX/RX Port: LC Connector; Line Port SC/APC

v A passive device, Low Insertion Loss
