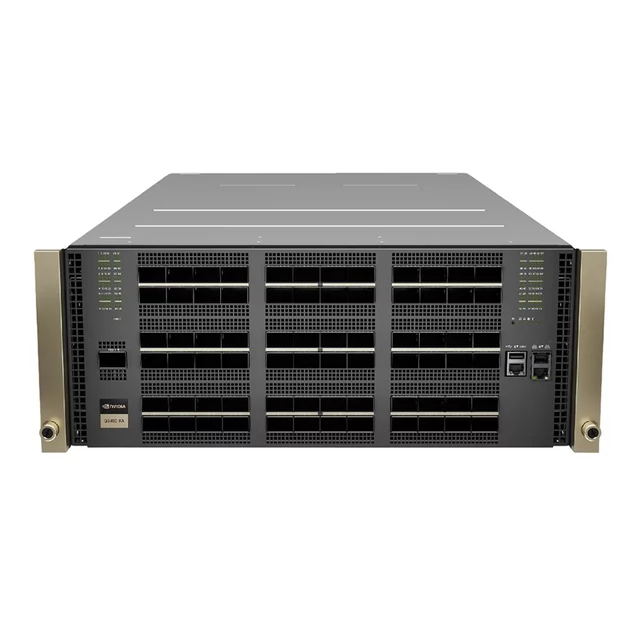

NVIDIA Q3400-RA Quantum-3 XDR InfiniBand Switch, 4U, 144x 800Gb/s XDR Ports, 72 OSFP Cages, 8 PSUs (No Power Cords), Managed, C2P Airflow, Standard Depth, Rail Kit

NVIDIA Q3400-RA Quantum-3 XDR InfiniBand Switch, 4U, 144x 800Gb/s XDR Ports, 72 OSFP Cages, 8 PSUs (No Power Cords), Managed, C2P Airflow, Standard Depth, Rail Kit

Product Details

Part Number	Q3400-RA	Mount Rack	4U
Ports	72xOSFP 2x800Gb/s	Airflow	Connector-to-Power (C2P)
Switching Capacity	654Mpps	Cooling Mechanism	Air Cooled
CPU	<10us	Security	CPU/CPLD/Switch IC based on IRoT
Software	NVOS	Input Voltage	200-240V AC
Dimensions(HxWxD)	4U, 7" (H) x 17.24" (W) x 33.5" (D) 177.8 mm (H) x 438 mm (W) x 850 mm (D)	Warranty	One year

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

Keep In Stock

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High stability

Switch Introduction

NVIDIA Quantum-2 Switches

Model	Speed	Ports	Throughput	Management	Cooling	Topologies	Key Features
Q3400-RA	XDR 800Gb/s	144 (72 OSFP)	115.2Tb/s	Managed	Air, C2P	Fat Tree, DragonFly+, Torus	SHARP™ v4, ultra-low latency
QM9700-NS2F	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Managed	Air, P2C	Fat Tree, DragonFly+, Torus	SHARP™ v3, subnet manager
MQM9700-NS2R	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Managed	Air, C2P	Fat Tree, DragonFly+, Torus	SHARP™ v3, DGX H100 optimized
MQM9790-NS2F	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Unmanaged	Air, P2C	Fat Tree, DragonFly+, Torus	SHARP™ v3, cost-effective
MQM9790-NS2R	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Unmanaged	Air, C2P	Fat Tree, DragonFly+, Torus	SHARP™ v3, scalable
MQM8700-HS2F	HDR 200Gb/s	40 (QSFP56)	16Tb/s	Managed	Air, P2C	Fat Tree, Torus	SHARP™, sub-130ns latency
MQM8790-HS2F	HDR 200Gb/s	40 (QSFP56)	16Tb/s	Unmanaged	Air, P2C	Fat Tree, Torus	SHARP™, cost-effective

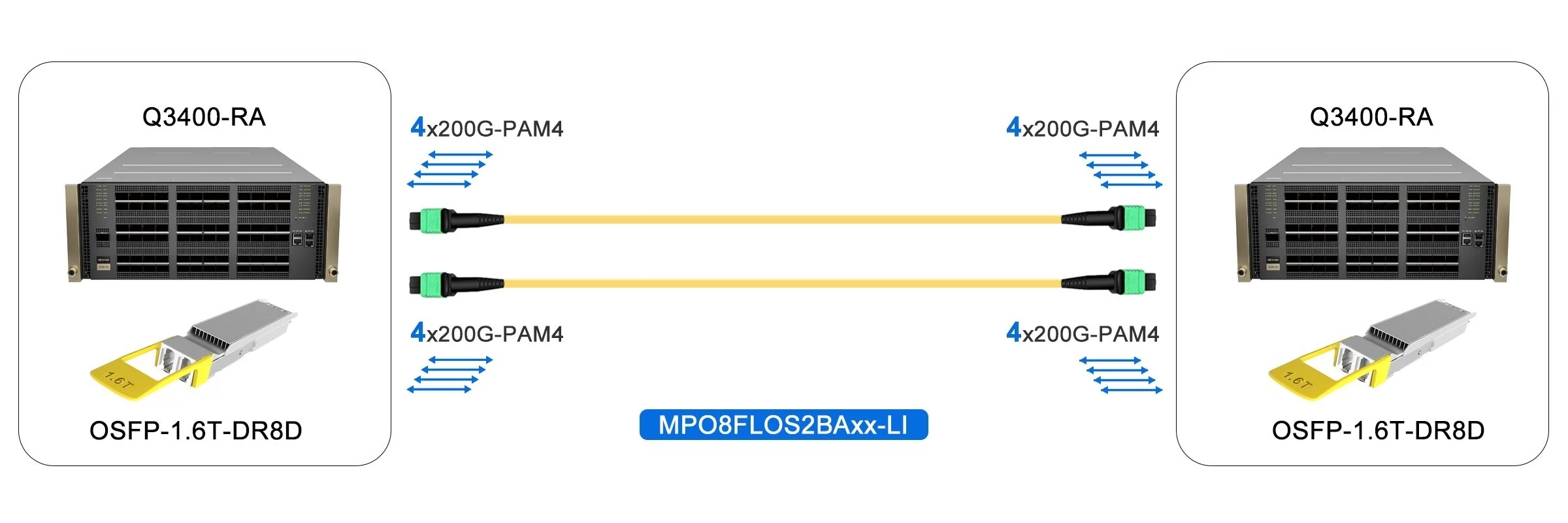

Switch to Switch (NDR) - Optics

Switch to Switch (NDR) - Copper

Switch to Switch (NDR) - Active Copper & Direct Attached Copper

Switch to Switch (NDR) - HDR&EDR

Switch to HCA

Switch to HCA (NDR) - Optics

Switch to HCA (NDR) - Copper

Switch-to-DGX H100 GPU Systems
