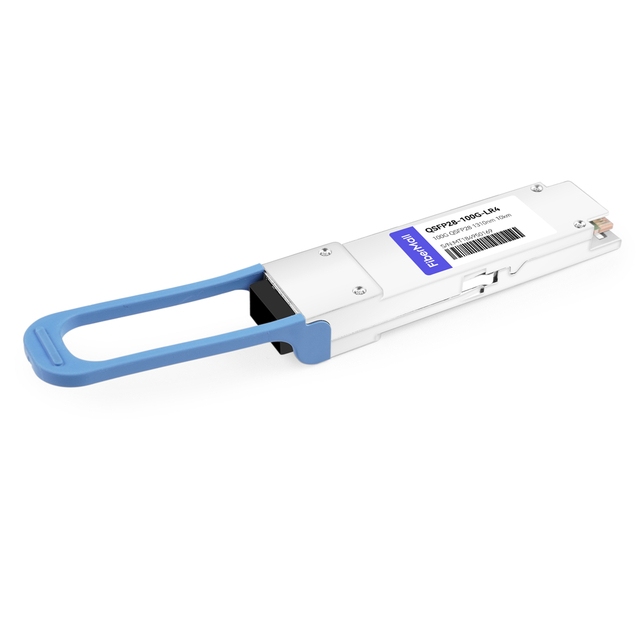

Huawei QSFP-100G-LR4 Compatible 100GE LR4 Transceiver | FiberMall

Add to wish

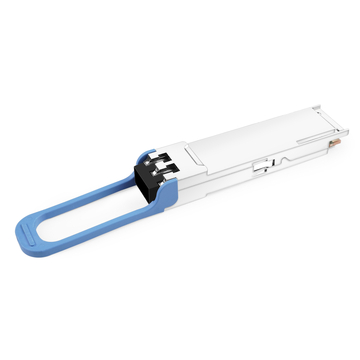

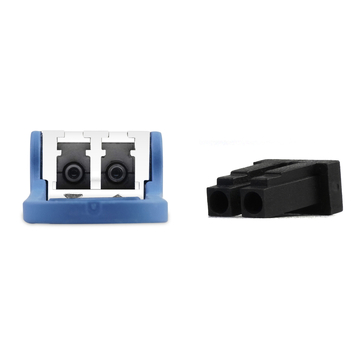

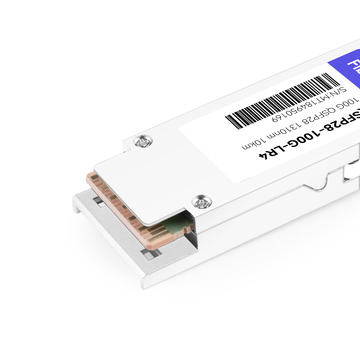

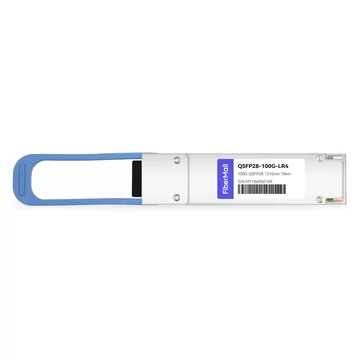

Huawei QSFP-100G-LR4 Compatible 100G QSFP28 LR4 1310nm (LAN WDM) 10km LC SMF DDM Transceiver Module

Name: Huawei QSFP-100G-LR4 Compatible 100G QSFP28 LR4 1310nm (LAN WDM) 10km LC SMF DDM Transceiver Module
Brand: fibermall
SKU: 10030
Price: 285.00 USD
Availability: OutOfStock
Rating: 4.6 (14 reviews)

: Huawei QSFP-100G-LR4 Compatible 100G QSFP28 LR4 1310nm (LAN WDM) 10km LC SMF DDM Transceiver Module

14 Reviews

$ 285.00
Available

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

14 Reviews

SKU:10030

$ 285.00

Compatible: Cisco; FiberMall; Arista Networks; Brocade; Ciena; DELL; EdgeCore; Extreme Networks; H3C; HPE (Aruba); HPE (H3C); Huawei; Juniper Networks; Mellanox; Palo Alto Networks

Transceiver Type: QSFP-100G-SR4; QSFP28-100G-eSR4; QSFP-100G-CWDM4; QSFP28-100G-PSM4; QSFP-100G-eCWDM4; QSFP-100G-BIDI-G2; QSFP-100G-LR4; 02311QUK; QSFP28-100G-BIDI; QSFP-100G-ER4-Lite

FM PN:

QSFP28-100G-LR4

Ship From:

Asia

Shipping:

$ 29.66

to United States Via DHL

Estimated delivery time : 3-5 working days. See details

Quantity:

Total Price:

$ 285.00

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Huawei QSFP-100G-LR4 Compatible 100G QSFP28 LR4 Transceiver Module (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm SMF 10km LC DDM)

The 100G QSFP28 LR4 transceiver module is designed for use in 100 Gigabit Ethernet links on up to 10km of single-mode fiber. It is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4, and IEEE 802.3bm CAUI-4. The digital diagnostics function is available via the I2C interface, as specified by the QSFP28 MSA.

Product Details

Huawei Compatible	QSFP-100G-LR4	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1295.56nm, 1300.05nm 1304.58nm, 1309.14nm	Max Distance	10km
Connector	Duplex LC	Transmitter Type	LAN WDM DFB
Cable Type	SMF	Receiver Type	PIN
TX Power	-4.3~+4.5dBm	Receiver Sensitivity	< -10.6dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably

: Temperature Impact; High and low-temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

: EMI Testing; Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF(Mean Time Between Failures)testing ensures high stability

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

ARISTA 7060SX2-48YC6

H3C S6850-56HF

Cisco N9K-C92160YC-X

HP JG510A

Juniper QFX5110-48S-AFO

Mellanox SN4700

Cisco-N9K-C93600CD-GX

NVIDIA QM9790

Ruijie RG-S6990-128QC2XS

	QSFP28-100G-4WDM-10	QSFP28-100G-LR4	QSFP28-100G-LR1
Huawei Compatible	QSFP-100G-eCWDM4	QSFP-100G-LR4	QSFP-100G-LR1
Vendor Name	FiberMall	FiberMall	FiberMall
Form Factor	QSFP28	QSFP28	QSFP28
Max Data Rate	111.81Gbps	103.1Gbps	100Gbps Single Lambda
Wavelength	1271nm, 1291nm 1311nm, 1331nm	1295.56nm, 1300.05nm 1304.58nm, 1309.14nm	1310nm
Max Distance	10km	10km	10km
Connector	Duplex LC	Duplex LC	Duplex LC
Transmitter Type	CWDM4 DML	LAN WDM DFB	EML
Cable Type	SMF	SMF	SMF
Receiver Type	PIN	PIN	PIN
TX Power	-6~+2.5dBm	-4.3~+4.5dBm	-1.4~+4.5dBm
Receiver Sensitivity	< -13.0dBm	< -10.6dBm	< -4.5dBm
Protocols	100G Ethernet, MSA Compliant	100G Ethernet, MSA Compliant	100G Lambda MSA 100G-LR, 100G Ethernet
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
