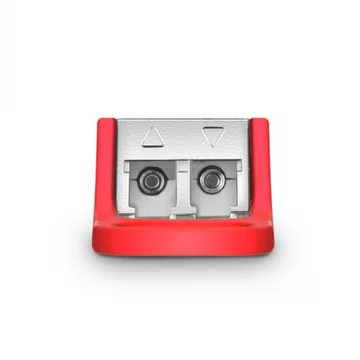

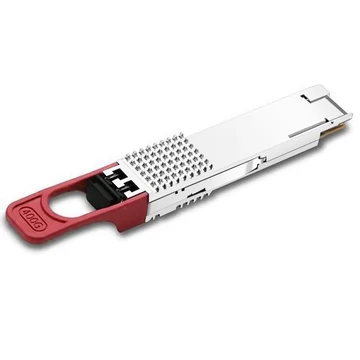

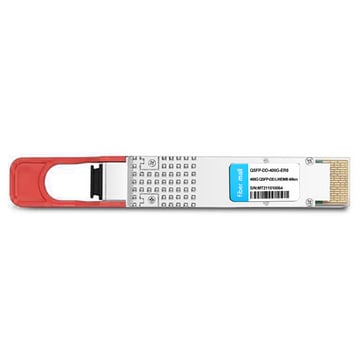

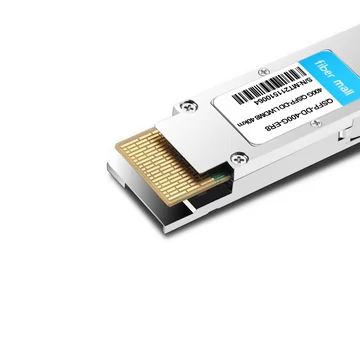

QSFP-DD-400G-ER8 400G QSFP-DD ER8 PAM4 LWDM8 40km LC SMF FEC Optical Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:18102
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Compatible
FiberMall
FM PN:
QSFP-DD-400G-ER8
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

400G QSFP-DD ER8 PAM4 8 LAN-WDM MUX/DEMUX design Optical Transceiver Module (LWDM8 SMF LC 40km with FEC DDM)

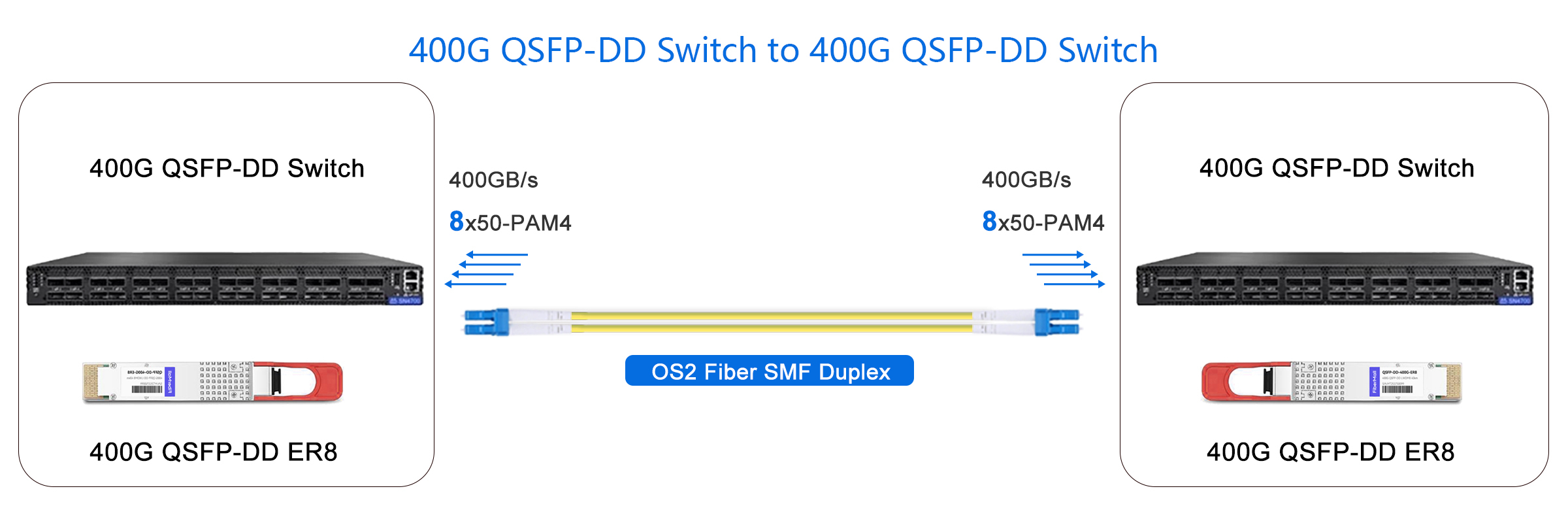

The 400GBASE-ER8 module supports link lengths of up to 40km over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors. It complies with the IEEE 802.3bs 400GBASE-ER8. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.

Product Details

FiberMall P/N QSFP-DD-400G-ER8Vendor Name FiberMall
Form Factor QSFP-DDMax Data Rate 425Gbps
Wavelength 1273.54nm, 1277.89nm, 1282.26nm
1286.66nm, 1295.56nm, 1300.05nm
1304.58nm, 1309.14nm
Max Distance 40km
Modulation Format PAM4Host Required FEC
Connector Duplex LCVoltage Supply 3.3V
Cable Type SMFDDM Support Yes
Transmitter Type EMLReceiver Type PIN
TX Power -18.6~-4.4dBmReceiver Sensitivity < -16.1dBm (SECQ–17.5dBm)
Operation Temperature 0 to 70°C (32 to 158°F)Maximum Power < 15.4W
Protocols QSFP-DD MSA,
IEEE 802.3bs 400GBASE-ER8
Application 400G Ethernet, Telecom Networking, Infiniband Interconnects


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall

our advantages

400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall

Keep In Stock

Fast Delivery
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall

Professional Service

Technical Support
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall
Coding(EEPROM Programming)
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall
Testing system

Partial test demonstartion

400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall
Cisco N9k-C92160YC-X-C
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall
HP ProCurve 5406zl J8697A
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall
ARISTA 7-50QX-32
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall
Juniper EX4300
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall
HW S5700-28X-L1-AC
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall
Brocade VDX 6720
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall
DELL S4048 ON
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall
DATACOM DM4100
400GBASE-ER8 QSFP-DD 40km Optical Transceiver | FiberMall
H3C LS-5500-28C-S

Product Features

v QSFP-DD MSA, RoHS 2.0 compliant

v Compliant to IEEE 802.3bs 400GBASE-ER8

v Hot pluggable 76-pin electrical interface

v 8 LAN-WDM lanes MUX/DEMUX design

v 53.125Gbit/s PAM4 Channel Electrical Serial Interface (400GAUI-8)

v Maximum power consumption 15.4W

v Single 3.3V power supply

v Supports Data Center Interconnect, 400GBASE-ER8 Ethernet, Infiniband interconnects, Enterprise networking
