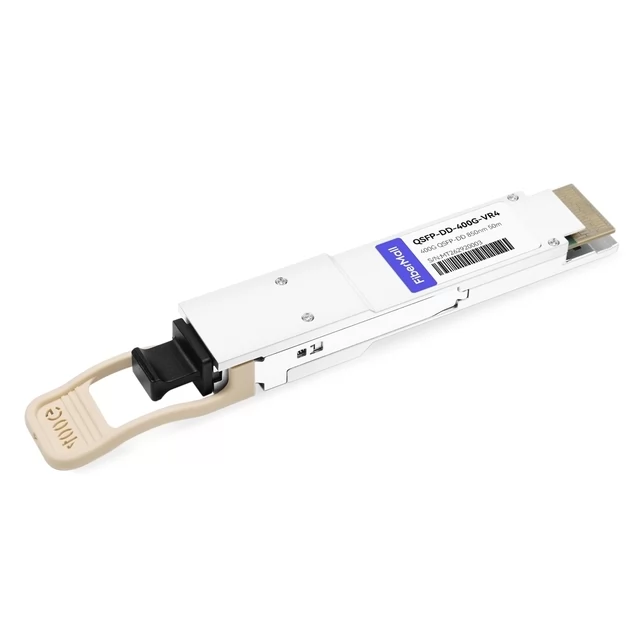

400G QSFP-DD VR4 OM4 50m Optical Transceiver Module | FiberMall

Add to wish

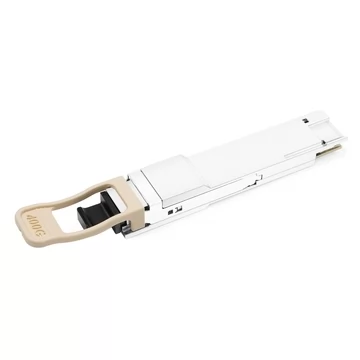

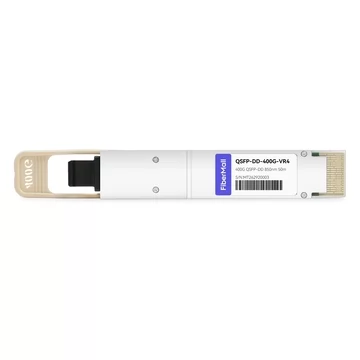

QSFP-DD-400G-VR4 400G QSFP-DD VR4 PAM4 850nm 50m MPO-12 OM4 FEC Optical Transceiver Module

Name: QSFP-DD-400G-VR4 400G QSFP-DD VR4 PAM4 850nm 50m MPO-12 OM4 FEC Optical Transceiver Module
Brand: fibermall
SKU: 21588
Price: 350.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:21588

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista; Dell; Huawei; Juniper

Transceiver Type: QSFP-DD-400G-SR8; QSFP-DD-400G-VR4; QSFP-DD-400G-DR4; QSFP-DD-400G-SR4; QSFP-DD-400G-FR4; QSFP-DD-400G-XDR4; QSFP-DD-400G-LR4; QDD-4X100G-FR-Si; QDD-4X100G-FR-4Si; QSFP-DD-400G-PLR4; QSFP-DD-400G-SR4.2; QSFP-DD-400G-ER4L; QSFP-DD-400G-ER4; QSFP-DD-400G-ER8; QSFP-DD-400G-LR8

FM PN:

QSFP-DD-400G-VR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

400G QSFP-DD VR4 PAM4 Optical Transceiver Module (850nm MPO-12 OM4 50m with FEC DDM)

Product Details

FiberMall P/N	QSFP-DD-400G-VR4	Vendor Name	FiberMall
Form Factor	QSFP-DD	Wavelength	850nm
Max Distance	50m on OM4	Modulation Format	PAM4
Host Required	FEC	Connector	Single MPO-12
Voltage Supply	3.3V	Cable Type	MMF
Modulation (electrical)	8x53.125Gb/s PAM4	Modulation (Optical)	4x106.25Gb/s PAM4
TX Power	-6.3~+4.0dBm	Receiver Sensitivity	<-6.2dBm
DDM Support	Yes	Receiver Type	PIN
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	<9W
Protocols	QSFP-DD MSA, IEEE 802.3bs	Application	400G Ethernet, Infiniband, Data Center Interconnect

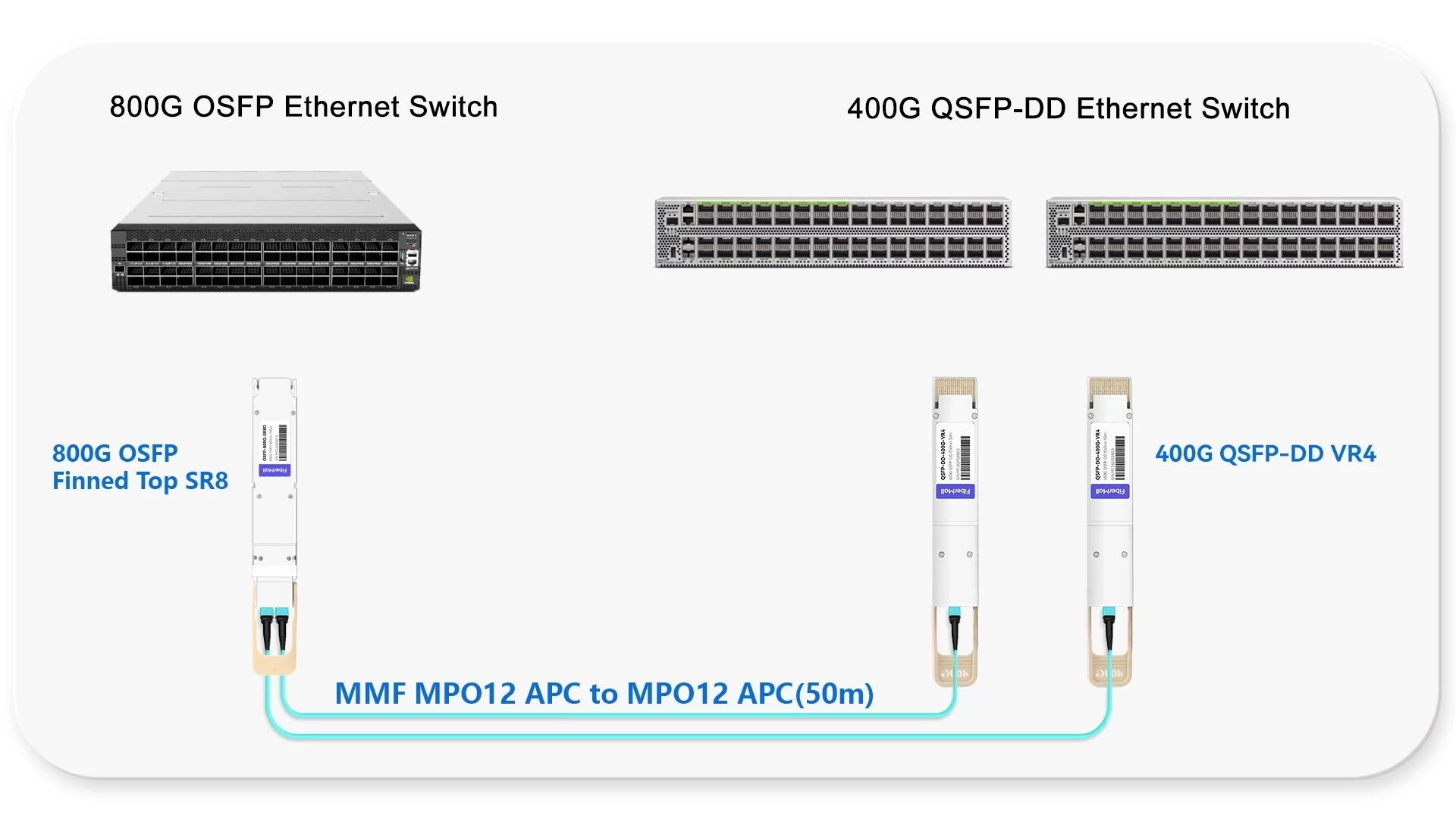

Use 800G OSFP SR8 transceivers on the 800G switch and 400G QSFP-DD VR4 transceivers on the 400G switch, connected via MPO Trunk Cables.

800G Ethernet Switch to 400G Ethernet Switch

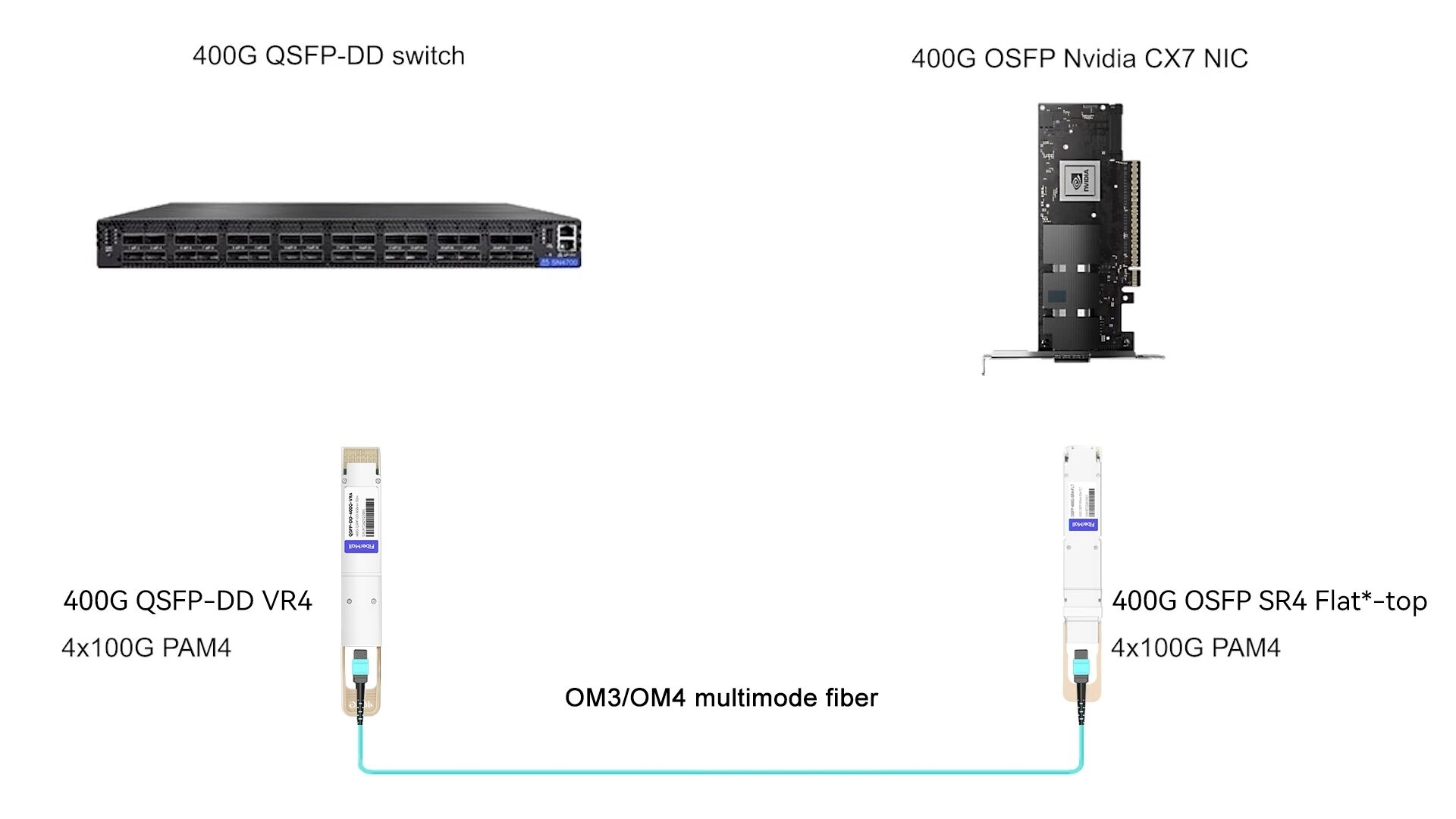

Use 400G QSFP-DD VR4 transceivers on the 400G switch and 400G OSFP SR4 transceivers on the 400G switch, connected via MPO Trunk Cables.

400G QSFP-DD Swtich to 400G OSFP NVIDIA ConnectX-7 NIC

Quality Assurance

Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably

: Temperature Impact; High and low-temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

: EMI Testing; Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF(Mean Time Between Failures)testing ensures high stability

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

ARISTA 7060SX2-48YC6

H3C S6850-56HF

Cisco N9K-C92160YC-X

HP JG510A

Juniper QFX5110-48S-AFO

Mellanox SN4700

Cisco-N9K-C93600CD-GX

NVIDIA QM9790

Ruijie RG-S6990-128QC2XS

	QSFP-DD-400G-SR8	OSFP-400G-SR4-FLT	OSFP-400G-SR8	QSFP-DD-400G-VR4	QSFP-DD-400G-SR4
FiberMall P/N	QSFP-DD-400G-SR8	OSFP-400G-SR4-FLT	OSFP-400G-SR8	QSFP-DD-400G-VR4	QSFP-DD-400G-SR4
Vendor Name	FiberMall	FiberMall	FiberMall	FiberMall	FiberMall
Form Factor	QSFP-DD	OSFP	OSFP	QSFP-DD	QSFP-DD
Max Data Rate	425Gbps	425Gbps	425Gbps	-	-
Wavelength	850nm	850nm	-	850nm	850nm
Max Distance	70m on OM3/100m on OM4	30m on OM3/50m on OM4	100m on OM3	50m on OM4	60m on OM3/100m on OM4
Modulation Format	PAM4	PAM4	PAM4	PAM4	PAM4
Host Required	FEC	FEC	FEC	FEC	FEC
Connector	MTP/MPO-16	MPO-12 (APC)	MTP/MPO-16	Single MPO-12	MTP/MPO-12
Voltage Supply	3.3V	3.3V	3.3V	3.3V	3.3V
Cable Type	MMF	MMF	MMF	MMF	MMF
DDM Support	Yes	Yes	Yes	Yes	Yes
Receiver Type	PIN	PIN	PIN	PIN	PIN
TX Power	-6.5~+4.0dBm	-4.6~+4.0dBm	-6.0~+4.0dBm	-6.3~+4.0dBm	-4.6~+4.0dBm
Receiver Sensitivity	< -7.9dBm	< -4.6dBm	< -7.0dBm	<-6.2dBm	<-6.4dBm
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	< 12W	< 8W	< 12.0W	<9W	<9W
Protocols	QSFP-DD MSA, IEEE 802.3bs	OSFP MSA, IEEE 802.3bs	OSFP MSA, IEEE 802.3bs	QSFP-DD MSA, IEEE 802.3bs	QSFP-DD MSA, IEEE 802.3bs
Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking	400G Ethernet, Infiniband, Data Center Interconnect	400G Ethernet, Data Center Interconnect

400G QSFP-DD

Product Features

v Support 100GBASE per lane in multimode fiber

v Data rate up to 425Gbps (4 x 106.25 Gbps)

v Reach up to 50m on MMF (OM4)

v 850nm VCSEL laser and PIN receiver

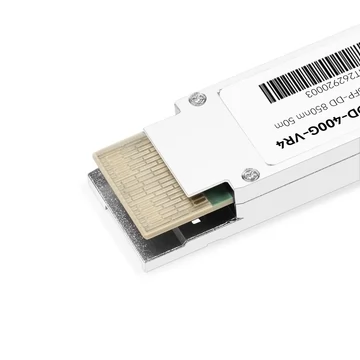

v High speed I/O electrical interface (400GAUI-8)

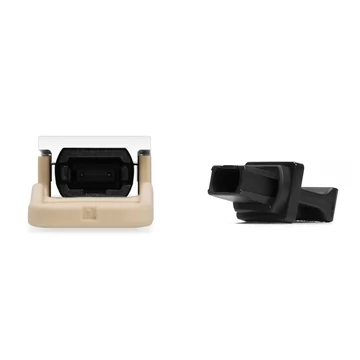

v Single MPO-12 receptacle

v Operating case temperature: 0 to +70°C

v Compliant to RoHS 6/6

v Compliant to QSFP-DD MSA and CMIS5.0

Applications

v 400G Ethernet and Infiniband

v Data center network
