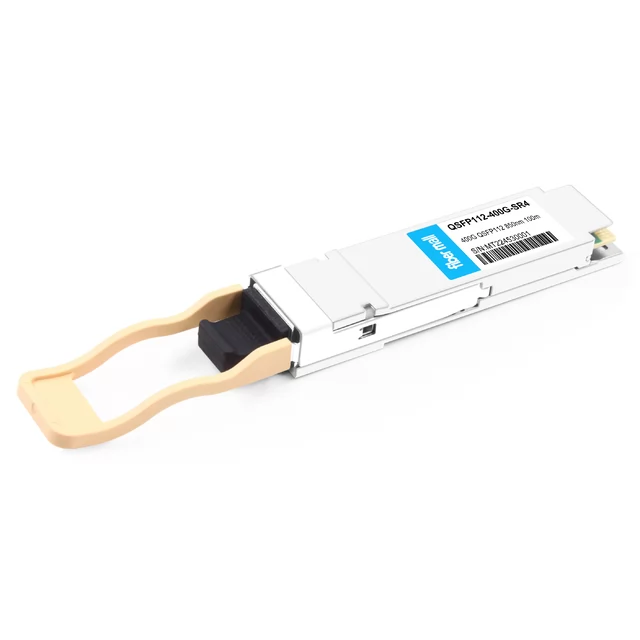

QSFP112-400G-SR4 400G QSFP112 SR4 PAM4 850nm 100m MTP/MPO-12 OM3 FEC Optical Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:19001
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Compatible
FiberMall
FM PN:
QSFP112-400G-SR4
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

400G QSFP112 SR4 PAM4 Optical Transceiver Module (850nm MTP/MPO12 OM3/OM4 100m with FEC DDM)

The QSFP112 400GBASE SR4 transceiver module is designed for 400G Ethernet links over 100m of Multi-mode fiber. The module contains 4 parallel channels at a center wavelength of 850nm, each operating at 106.25G. On the receiver path, 4 photodiodes and a 4-channel TIA array are used, along with PAM4 re-timers.

Product Details

FiberMall P/N QSFP112-400G-SR4Vendor Name FiberMall
Form Factor QSFP112Max Data Rate 425Gbps
Wavelength 850nmMax Distance 60m on OM3/100m on OM4
Modulation Format PAM4Host Required FEC
Connector MPO-12 (APC)Voltage Supply 3.3V
Cable Type MMFDDM Support  Yes
Transmitter Type  850nm VCSELReceiver Type  PIN
TX Power -4.6~+4.0dBmReceiver Sensitivity < -4.6dBm
Operation Temperature  0 to 70°C (32 to 158°F)Maximum Power < 8W
Protocols QSFP112 MSA, IEEE 802.3bsApplication 400G Ethernet, Data Center Interconnect, Infiniband Interconnects


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall

our advantages

400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall

Keep In Stock

Fast Delivery
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall

Professional Service

Technical Support
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall
Coding(EEPROM Programming)
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall
Testing system

Partial test demonstartion

400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall
Cisco N9k-C92160YC-X-C
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall
HP ProCurve 5406zl J8697A
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall
ARISTA 7-50QX-32
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall
Juniper EX4300
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall
HW S5700-28X-L1-AC
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall
Brocade VDX 6720
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall
DELL S4048 ON
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall
DATACOM DM4100
400GBASE SR4 QSFP112 Optical Transceiver Module | FiberMall
H3C LS-5500-28C-S

Product Features

v Supports 425Gbps

v Single 3.3V Power Supply

v 4x106.25Gbps (PAM4) electrical interface

v QSFP112 MSA, RoHS Compliant

v Up to 100m over MMF with FEC supported at the Host side

v Maximum power consumption 8W

v Supports Data Center Interconnect, 400GBASE SR4 , Infiniband interconnects, Enterprise networking
