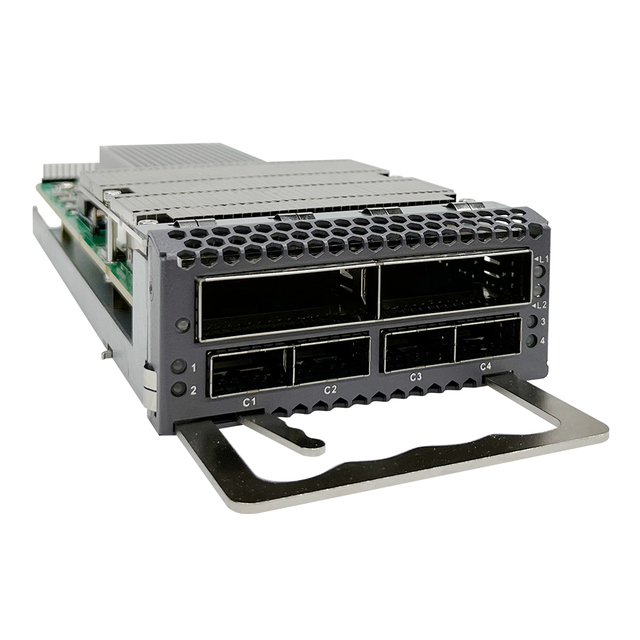

2x200G Muxponder Service Card: 4x100G QSFP28 to 2x200G CFP2, 1 Slot

Name: 2x200G Muxponder Service Card: 4x100G QSFP28 to 2x200G CFP2, 1 Slot
Brand: fibermall
SKU: 40111
Price: 4993.20 AUD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:40111

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

FM PN:

4Q28-2CFP2-200G

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

The 200G Muxponder service card supports mapping 4x100G optical signals received from the client into 2 OTUC2 signals and interconverting the OTUC2 signals to WDM optical signals with wavelengths compliant with ITU-T standards. The line side adopts pluggable CFP2 DCO to realize ultra-long-distance transmission based on advanced technologies such as coherent detection.

2x200G Muxponder Service Card
Function	Support 4x100G service signals mapping to 2 OTUC2 signals
Slot number	1/4 slot
Line side	Support 2 CFP2-DCO module hot-pluggable
Client-side	Support 4 QSFP28 modules hot-pluggable
OTN function	Frame format and overhead handling using ITU-T G709 recommendations ODUk (k=4, C2) layer: support for PM and other functions. OTUk (k=C2) layer: support for SM functions
SRWavelength adjustable	The range covers 191.35 THz ~ 196.1thz Supports 50GHz, 75 GHz, and 100 GHz adjustable
Support services	100GE, 100GE FlexE(Unware), OTU4
Time delay measurement	Online delay measurement based on ODU layer
Loopback	Support line side and client side loopbacks
LLDP	Ethernet Support
Performance monitoring and alarm monitoring	Support OTN performance monitoring and alarm monitoring functions Support optical module temperature, current, optical power monitoring, etc. Support Ethernet RMON monitoring Support Telemetry

Product Details

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

FM-OTN Systems

Save Optical Fiber In Huge Bandwidth Need

: 40 channels system; Access capacity:80G

: 40 channels system; Access capacity:160G

: 40/48/80/96 channels system; Access capacity; 400G ➨ 960G➨ 4T➨ 9.6T

WDM Gets Down To The Edge And Provides Limitless Bandwidth Resources In Limited Fiber

FiberMall FM-OTN System Includes the Following Two Parts

Customized Solutions, Self-help Selection of Our FM-OTN System Function Modules

OTN Platform

: 1 Main Chassis 1U/2U/5U

: 2 Power Supply Module

: 3 Network Management Unit

OTN Function Module

: Transponder (OEO)

: Amplifier Modules

: Dispersion Compensation

: Une Protection

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Practical Application Demonstration

As a kind of transmission technology with huge capacity and long-distance coverage is now widely used in the backbone, convergence and access layer of metropolitan area network.
