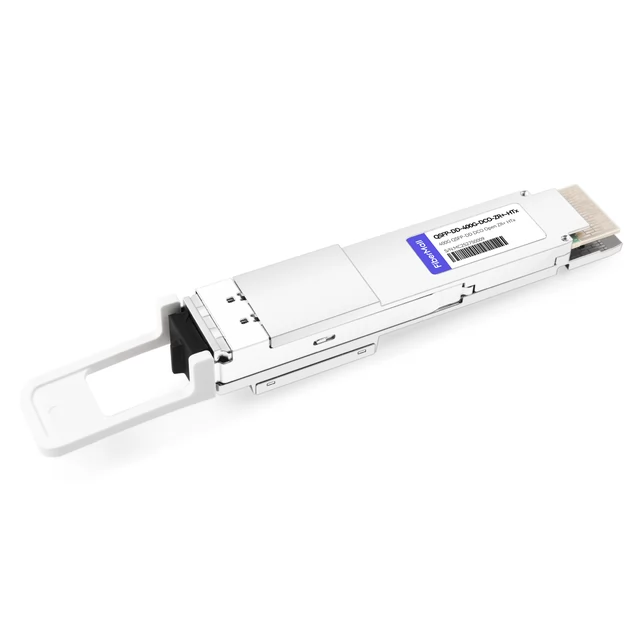

Cisco DP04QSDD-HE0 400G Coherent High TX Power QSFP-DD DCO ZR+ Module

Add to wish

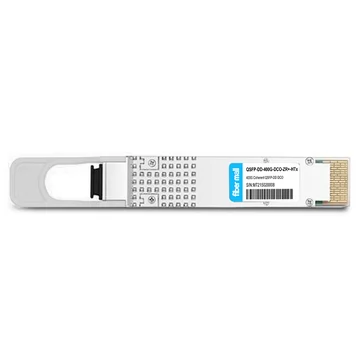

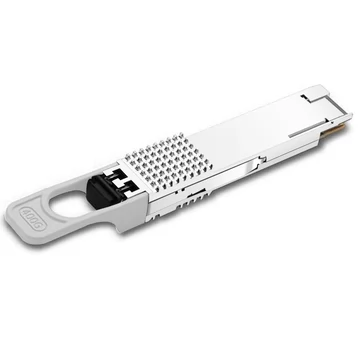

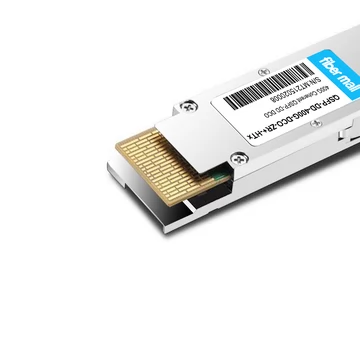

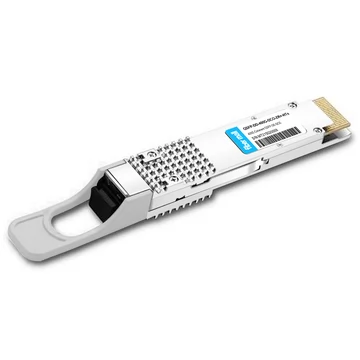

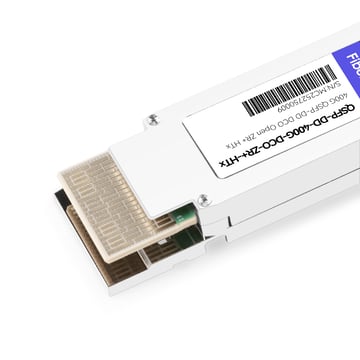

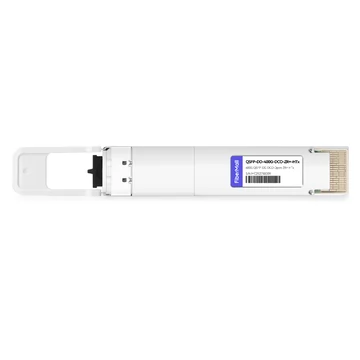

Cisco DP04QSDD-HE0 Compatible 400G Coherent High TX Power QSFP-DD DCO OpenZR+ C-band Tunable Optical Transceiver Module

Name: Cisco DP04QSDD-HE0 Compatible 400G Coherent High TX Power QSFP-DD DCO OpenZR+ C-band Tunable Optical Transceiver Module
Brand: fibermall
SKU: 20199
Price: 5500.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20199

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista; Nokia

Transceiver Type: QSFP-DD-400G-DCO-ZR; QDD-400G-ZRP-S; DP04QSDD-HE0; CFP2-WDM-D-1HL; CFP2-WDM-DETS-1HL=; DP08SFP8-ZRA-A2

FM PN:

QSFP-DD-400G-DCO-ZR+-HTx

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Available for back order. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Cisco DP04QSDD-HE0 Compatible 400G Coherent High TX Power QSFP-DD DCO OpenZR+ Transceiver Module (DWDM C Band 50GHz Grid: 191.15-196.1GHz)

Product Details

Cisco Compatible	DP04QSDD-HE0	Vendor Name	FiberMall
Form Factor	QSFP-DD	Reach	ZR
Client Side	400GE	Line Side Modulation Format	DP-16QAM
Line Side FEC mode	OFEC	Typical OSNR Sen	26dB
TX Min	-5.0dBm	TX Max	+3.0dBm
RX Min	-12.0dBm	RX Max	0dBm

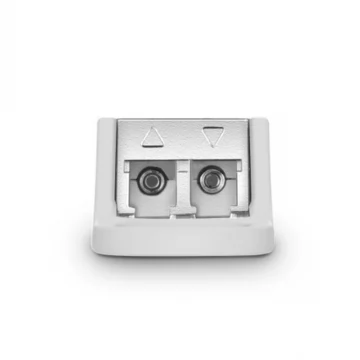

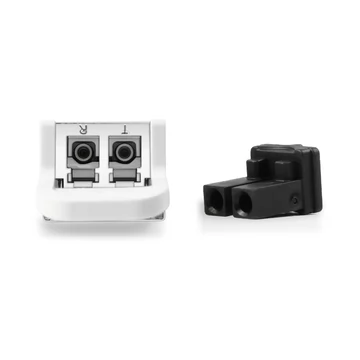

Fiber Connections	LC/UPC Duplex	Power Consumption	<16.0W
Operation Temperature	0 to 70°C (32 to 158°F)	Protocols	QSFP-DD MSA Compliant

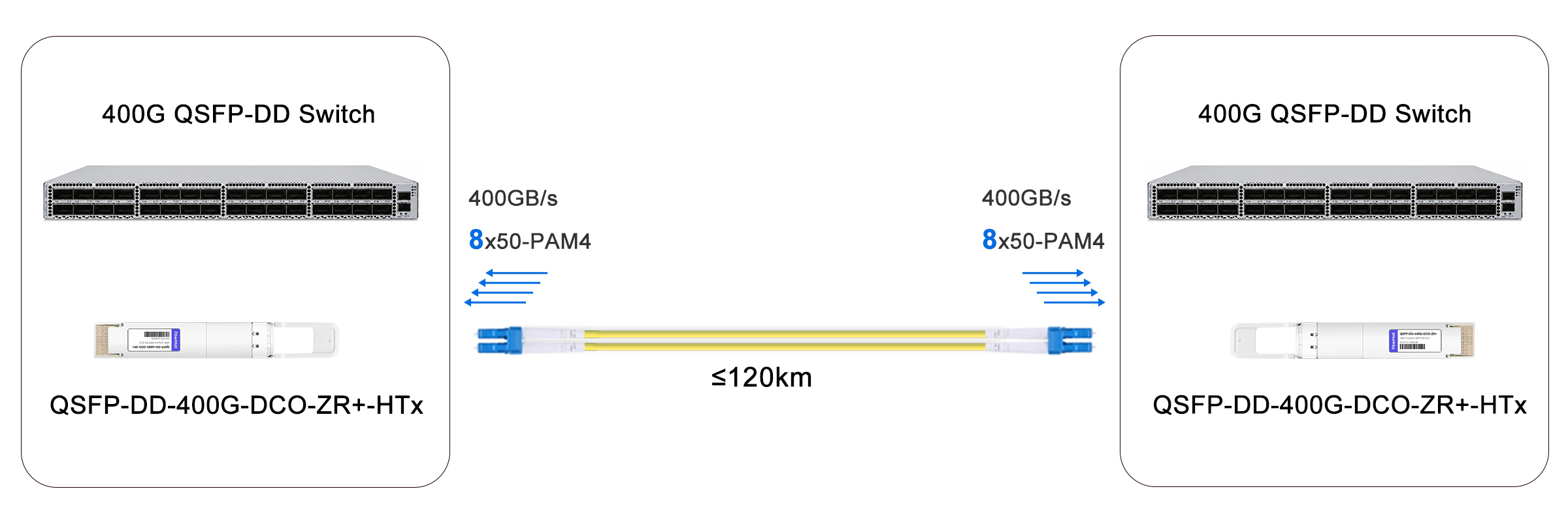

Use 400G High TX Power QSFP-DD DCO ZR+ transceivers on the 400G Switch, connected via Duplex OS2 LC-LC SMF Cable.

400G High TX Power QSFP-DD DCO Solution for 120km

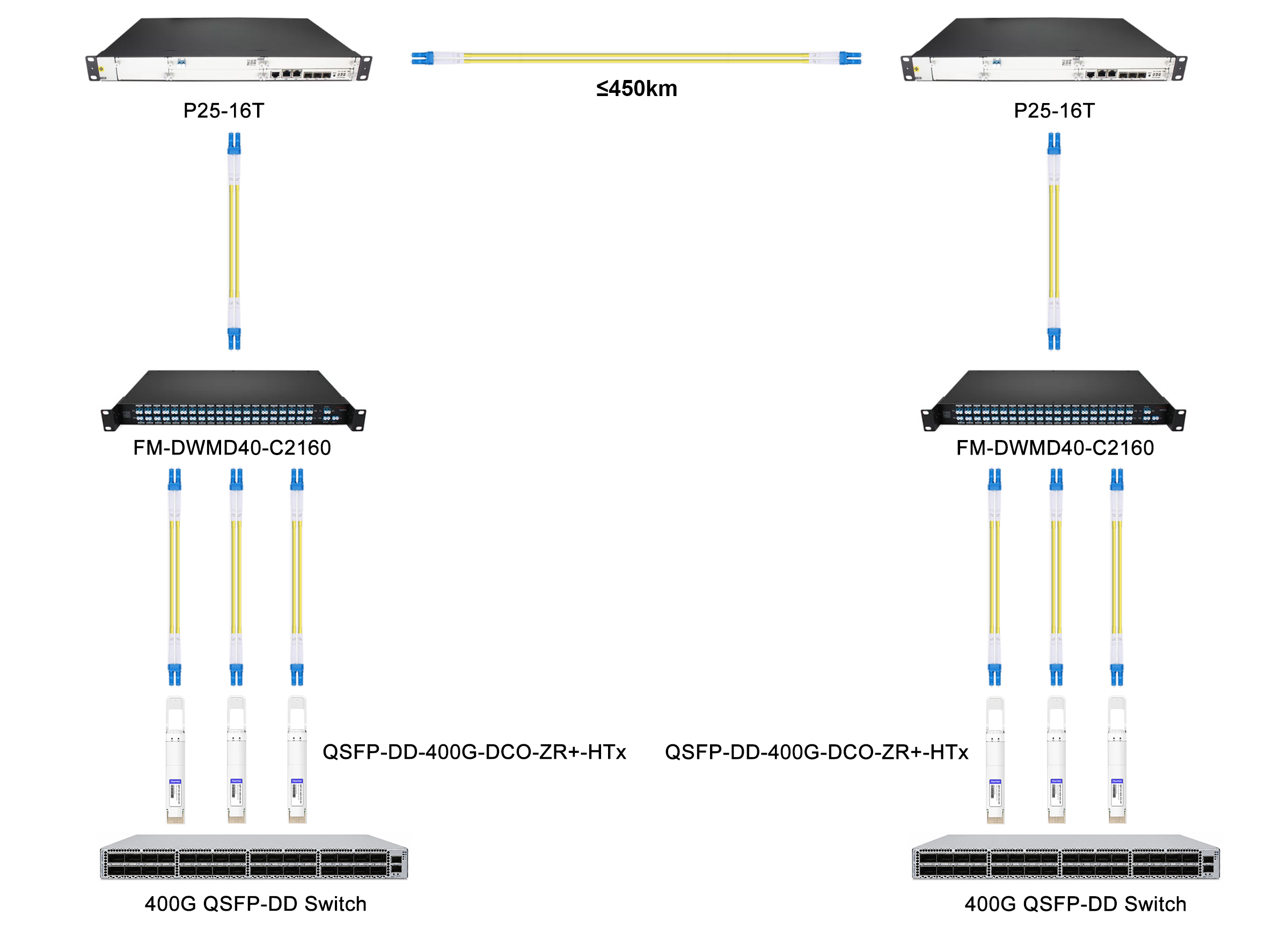

400G High TX Power QSFP-DD DCO ZR+ is suitable for 450km with DWDM MUX DEMUX.

400G High TX Power QSFP-DD DCO Solution for 450km

Quality Assurance

Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably

: Temperature Impact; High and low-temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

: EMI Testing; Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF(Mean Time Between Failures)testing ensures high stability

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

ARISTA 7060SX2-48YC6

H3C S6850-56HF

Cisco N9K-C92160YC-X

HP JG510A

Juniper QFX5110-48S-AFO

Mellanox SN4700

Cisco-N9K-C93600CD-GX

NVIDIA QM9790

Ruijie RG-S6990-128QC2XS

Product Features

v Support Flex-grid channel spacing DWDM in C-band

v Support Client-side Interfaces: 1*400GAUI-8 for 400G ZR, 1*400GAUI-8/4*100GAUI-2 for 400G OpenZR+

v Support Line-side: DP-16QAM with CFEC(ZR), DP-16QAM with oFEC(OpenZR+)

v High TX Power up to +3dBm

v Integrated TOF is optional

v 76pin QSFP-DD MSA compliant connector

v Compliant to CMIS 5.0

v Compliant to OIF Implementation Agreement for Coherent CMIS, Rev 01.1 9.

v OIF-400ZR-02.0

v OIF OpenZRplus_2p0

v RoHS compliant
