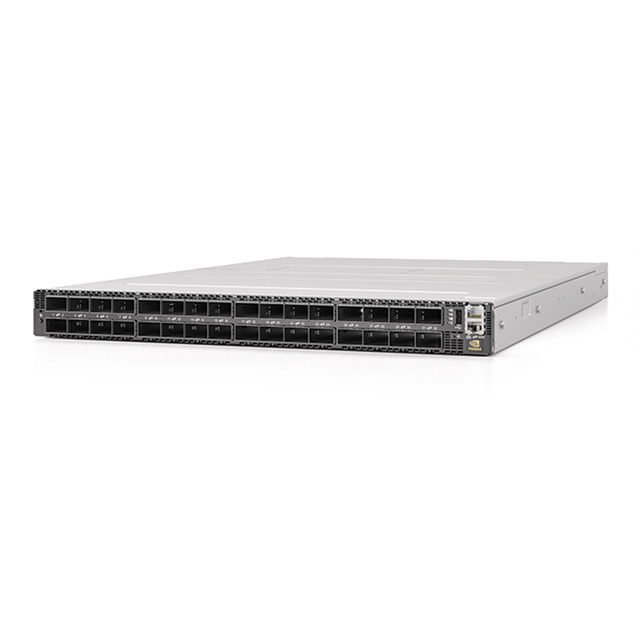

NVIDIA MQM9790-NS2R Quantum-2 NDR InfiniBand Switch, 64-ports NDR 400Gb/s, 32 OSFP Ports, Unmanaged, P2C Airflow (reverse)

NVIDIA MQM9790-NS2R Quantum-2 NDR InfiniBand Switch, 64 x 400Gb/s Ports, 32 OSFP Cages, Unmanaged, P2C Airflow

Product Details

Part Number	MQM9790-NS2R	Mount Rack	1U rack mount
Ports	32xOSFP 64x400Gb/s	Airflow	connector-to-power (C2P)
Switching Capacity	51.2Tb/s	Management	Managed
Storage	M.2 SSD SATA 16GB 2242 FF	System Memory	Single 8GB
Software	MLNX-OS	EMC (emissions)	CE, FCC, VCCI, ICES, RCM
Product safety compliant/certified	RoHS, CB, cTUVus, CE, and CU	Dimensions (HxWxD)	1.7" (H) x 17.2" (W) x26" (D) 43.6mm (H) x 438mm (W) x 660mm (D)
Temperature	Operational: 0℃to 40℃ Non-Operational: -40℃ to 70℃	Warranty	Supported for 1/3/5 years, depending on the years of service purchased

400G NDR Switch to NIC Links

800G NDR Switch to Switch

800G NDR Switch to DGX H100

400G NDR Switch to 2x400G NIC Links Using Multi-mode Fiber

OSFP-800G-SR8D OSFP 8x100G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

$  650.00

NVIDIA MFP7E10-N003 Compatible 3m (10ft) 8 Fibers Low Insertion Loss Female to Female MPO Trunk Cable Polarity B APC to APC LSZH Multimode OM3 50/125

$  35.00

OSFP-400G-SR4-FLT 400G OSFP SR4 Flat Top PAM4 850nm 30m on OM3/50m on OM4 MTP/MPO-12 Multimode FEC Optical Transceiver Module

$  550.00

NVIDIA Mellanox MCX75510AAS-NEAT ConnectX-7 InfiniBand/VPI Adapter Card, NDR/400G, Single-port OSFP, PCIe 5.0x 16, Tall Bracket

$  1650.00

NVIDIA MQM9700-NS2R Quantum-2 NDR InfiniBand Switch, 64-ports NDR 400Gb/s, 32 OSFP Ports, Managed, P2C Airflow(reverse)

$  34000.00

NVIDIA Quantum-2 IB Switch Links Using Single-mode Optics

NVIDIA MMA4Z00-NS Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

$  650.00

NVIDIA MFP7E10-N010 Compatible 10m (33ft) 8 Fibers Low Insertion Loss Female to Female MPO Trunk Cable Polarity B APC to APC LSZH Multimode OM3 50/125

$  47.00

NVIDIA MQM9790-NS2R Quantum-2 NDR InfiniBand Switch, 64-ports NDR 400Gb/s, 32 OSFP Ports, Unmanaged, P2C Airflow (reverse)

$  24000.00

NVIDIA Quantum-2 IB Switch to DGX H100 Links Using Single-mode Optics

NVIDIA MMA4Z00-NS-FLT Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

$  650.00

NVIDIA MMA4Z00-NS Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

$  650.00

NVIDIA MFP7E10-N010 Compatible 10m (33ft) 8 Fibers Low Insertion Loss Female to Female MPO Trunk Cable Polarity B APC to APC LSZH Multimode OM3 50/125

$  47.00

NVIDIA MQM9790-NS2R Quantum-2 NDR InfiniBand Switch, 64-ports NDR 400Gb/s, 32 OSFP Ports, Unmanaged, P2C Airflow (reverse)

$  24000.00

---

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

Keep In Stock

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High stability

Switch Introduction

NVIDIA Quantum-2 Switches

Model	Speed	Ports	Throughput	Management	Cooling	Topologies	Key Features
Q3400-RA	XDR 800Gb/s	144 (72 OSFP)	115.2Tb/s	Managed	Air, C2P	Fat Tree, DragonFly+, Torus	SHARP™ v4, ultra-low latency
QM9700-NS2F	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Managed	Air, P2C	Fat Tree, DragonFly+, Torus	SHARP™ v3, subnet manager
MQM9700-NS2R	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Managed	Air, C2P	Fat Tree, DragonFly+, Torus	SHARP™ v3, DGX H100 optimized
MQM9790-NS2F	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Unmanaged	Air, P2C	Fat Tree, DragonFly+, Torus	SHARP™ v3, cost-effective
MQM9790-NS2R	NDR 400Gb/s	64 (32 OSFP)	51.2Tb/s	Unmanaged	Air, C2P	Fat Tree, DragonFly+, Torus	SHARP™ v3, scalable
MQM8700-HS2F	HDR 200Gb/s	40 (QSFP56)	16Tb/s	Managed	Air, P2C	Fat Tree, Torus	SHARP™, sub-130ns latency
MQM8790-HS2F	HDR 200Gb/s	40 (QSFP56)	16Tb/s	Unmanaged	Air, P2C	Fat Tree, Torus	SHARP™, cost-effective

Switch to Switch (NDR) - Optics

Switch to Switch (NDR) - Copper

Switch to Switch (NDR) - Active Copper & Direct Attached Copper

Switch to Switch (NDR) - HDR&EDR

Switch to HCA

Switch to HCA (NDR) - Optics

Switch to HCA (NDR) - Copper

Switch-to-DGX H100 GPU Systems
