APRESIA H-LR4-QSFP+ Compatible 40G QSFP+ LR4 1310nm (CWDM4) 10km LC SMF DDM Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:10129
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Transceiver Type
H-SR4-QSFP+
H-LR4-QSFP+
FM PN:
QSFPP-40G-LR4
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

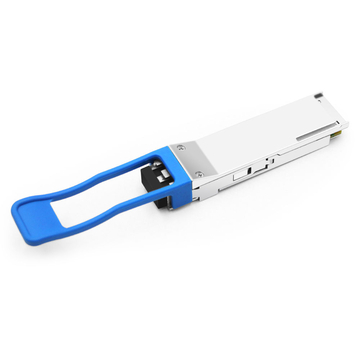

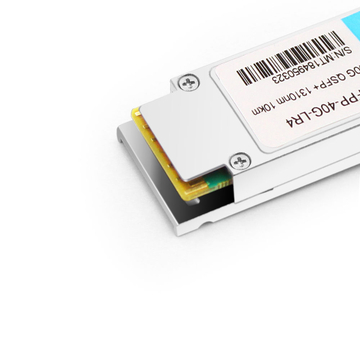

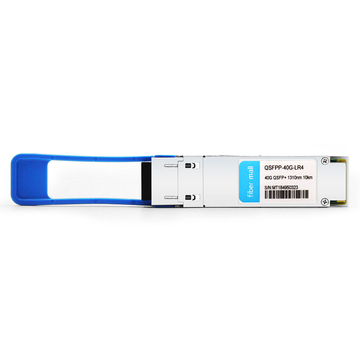

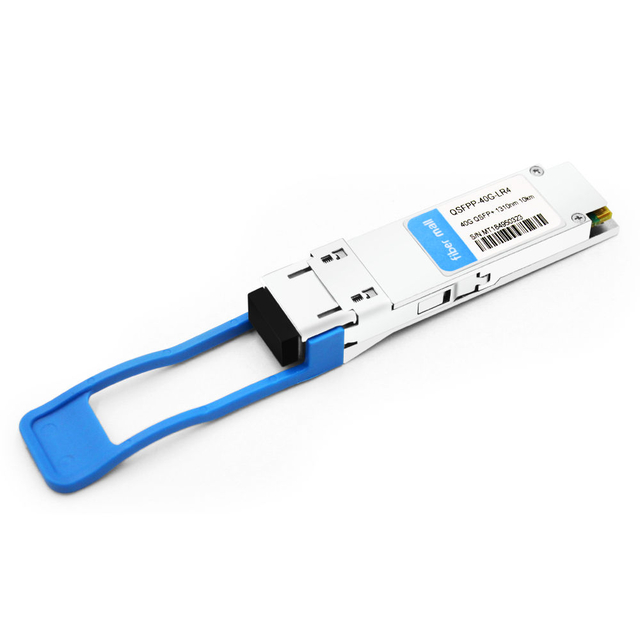

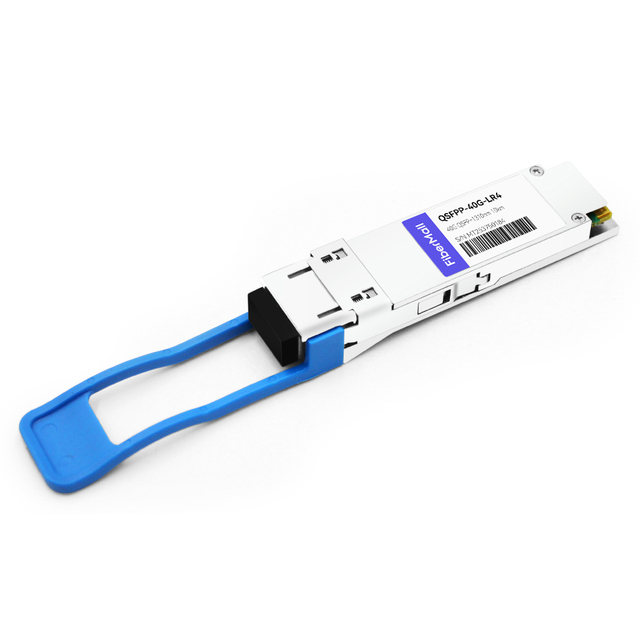

APRESIA H-LR4-QSFP+ Compatible 40G QSFP+ LR4 Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm SMF 10km LC DDM)

The 40G QSFP+ LR4 is a transceiver module designed for 10km optical communication applications. The design is compliant with 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDMoptical signals and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4CWDM channels signals and converts them to 4-channel output electrical data.

Product Details

APRESIA Compatible H-LR4-QSFP+Vendor Name FIBER MALL
Form Factor QSFP+Max Data Rate 40Gbps?
Wavelength 1271nm, 1291nm
1311nm, 1331nm
Max Distance 10km

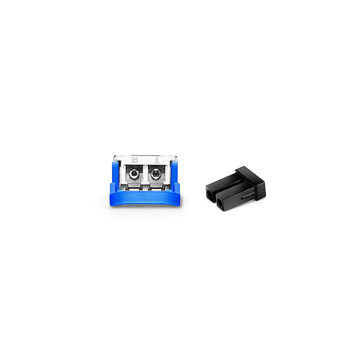

Connector LCTransmitter Type 4 Lanes CWDM DFB
Cable Type SMFReceiver Type PIN
TX Power -7~2.3dBmReceiver Sensitivity < -14dBm
Protocols OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA CompliantOperation Temperature 0 to 70°C (32 to 158°F)


Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall

our advantages

APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall

Keep In Stock

Fast Delivery
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall

Professional Service

Technical Support
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall

Worry-Free Guarantee

Shopping Satisfactorily
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

Fiber Mall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall
Coding(EEPROM Programming)
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall
Testing system

Partial test demonstartion

APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall
Cisco N9k-C92160YC-X-C
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall
HP ProCurve 5406zl J8697A
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall
ARISTA 7-50QX-32
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall
Juniper EX4300
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall
Huawei S5700-28X-L1-AC
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall
Brocade VDX 6720
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall
DELL S4048 ON
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall
DATACOM DM4100
APRESIA H-LR4-QSFP+ 40G SR4 QSFP+ Module | Fiber Mall
H3C LS-5500-28C-S

Product Features

v 4 CWDM lanes MUX/DEMUX design

v Up to 11.2Gbps per channel bandwidth

v Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard, QSFP MSA

v Up to10km transmission

v Compliant with QDR/DDR Infiniband data rates

v Single +3.3V power supply operating

v RoHS Compliant Part

v Supports Data centers, Switches, and RoutersMetro networks
