CFP2 DCO DWDM C-Band 200G Coherent Transceiver | FiberMall

Add to wish

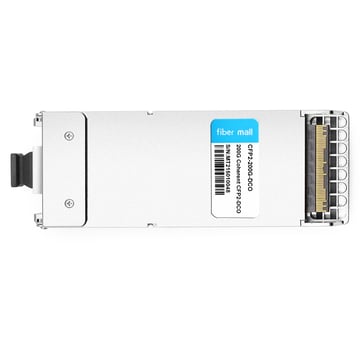

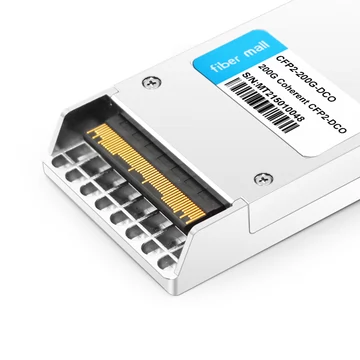

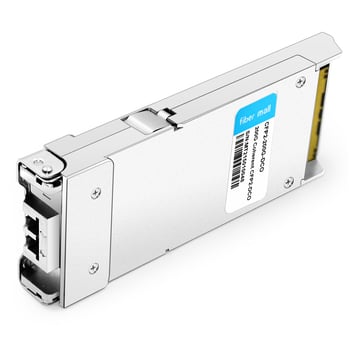

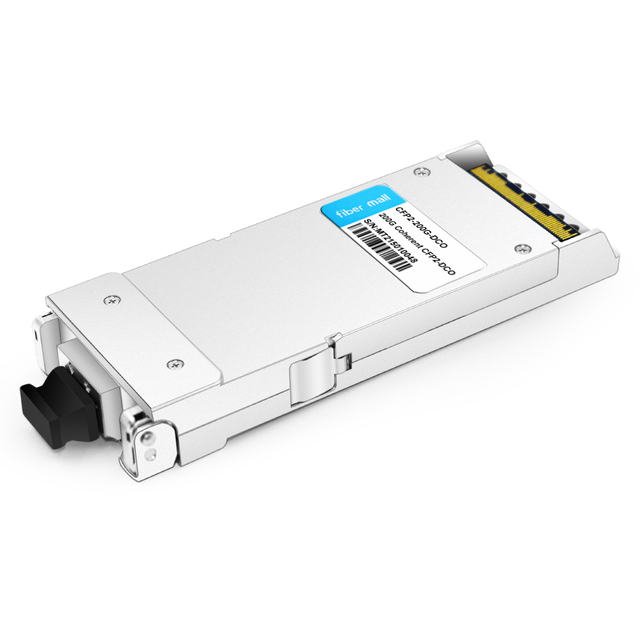

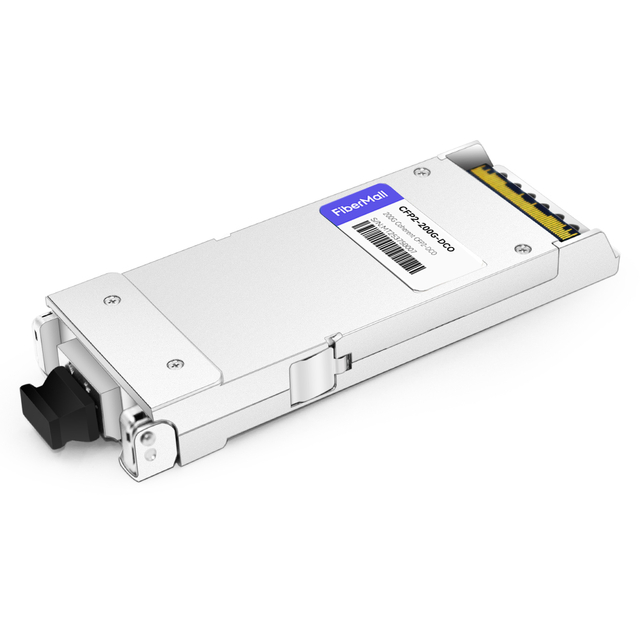

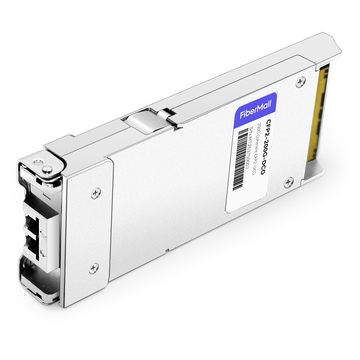

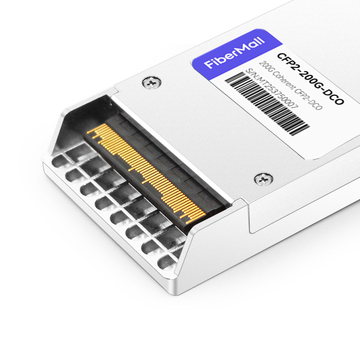

CFP2-200G-DCO 200G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module

Name: CFP2-200G-DCO 200G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module
Brand: fibermall
SKU: 18291
Price: 9815.00 AUD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18291

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Acacia; Arista; Juniper Networks; lumentum

Transceiver Type: QSFP28-100G-DCO-ZR; CFP-100G-DCO; QSFP-DD-100G-DCO; CFP-200G-DCO; CFP2-100G-DCO; QSFP-DD-400G-DCO-ZR; CFP2-200G-DCO; CFP2-400G-DCO; OSFP-100G-DCO; QSFP-DD-400G-DCO-ZR+; QSFP-DD-400G-DCO-ZR-HTx; OSFP-400G-DCO-ZR; OSFP-400G-DCO-ZR+; QSFP-DD-400G-DCO-ZR+-HTx

FM PN:

CFP2-200G-DCO

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Available for back order. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

100G/200G Coherent CFP2 DCO Transceiver Module (DWDM C Band 50GHz Grid: 191.15-196.1GHz)

The CFP2-DCO pluggable transceiver is a CFP2 MSA-compliant digital coherent optical module designed for line-side trunk DWDM data center interconnect (DCI), metro carrier, and regional/long-haul applications. The CFP2-DCO module uses a general-purpose C-band flexible grid laser source, providing transmitter and local oscillator signals, calibrated to provide 100 MHz frequency accuracy and ±6 GHz local off-grid tuning.

Product Details

FiberMall P/N	CFP2-200G-DCO	Vendor Name	FiberMall
Form Factor	CFP2	Reach	MR
Client Side	OTU4/OTUC1/100GE/OTUC2/200GE	Line Side Modulation Format	DP-QPSK/DP-8QAM/PCS-16QAM
Line Side FEC mode	OFEC / SDFEC	Typical OSNR Sen	14/16/18dB
TX Min	-10.0dBm	TX Max	+5.0dBm
RX Min	-20.0dBm	RX Max	+5.0dBm
Fiber Connections	LC/UPC Duplex	Power Consumption	<22.0W
Operation Temperature	0 to 70°C (32 to 158°F)	Protocols	CFP2 MSA Compliant

Quality Assurance

Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably

: Temperature Impact; High and low-temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

: EMI Testing; Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF(Mean Time Between Failures)testing ensures high stability

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

ARISTA 7060SX2-48YC6

H3C S6850-56HF

Cisco N9K-C92160YC-X

HP JG510A

Juniper QFX5110-48S-AFO

Mellanox SN4700

Cisco-N9K-C93600CD-GX

NVIDIA QM9790

Ruijie RG-S6990-128QC2XS

Product Features

v Low latency HD-FEC/SD-FEC

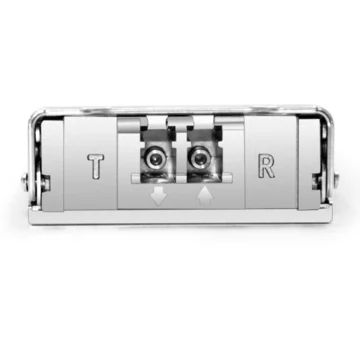

v Duplex LC receptacles

v Full C-band 50GHz ITU-T transmitter

v 3.3V power supply voltage

v 104-pin CFP2 MSA-compliant connector

v Compliant with CFP2 MSA

v Used in metro carriers, access, and Cloud/DCI applications

v Supports 100 Gbps DP-QPSK and 200 Gbps DP-8QAM/PCS-16QAM modulations
