400G ZR+ QSFP-DD DCO Coherent Fiber Transceiver | FiberMall

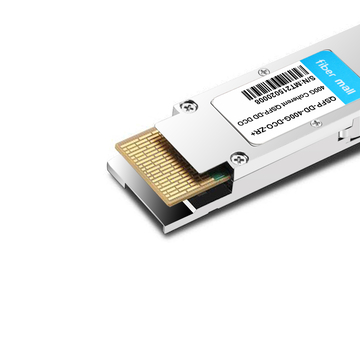

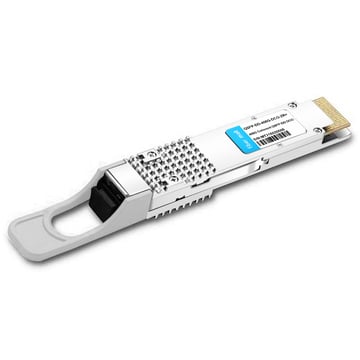

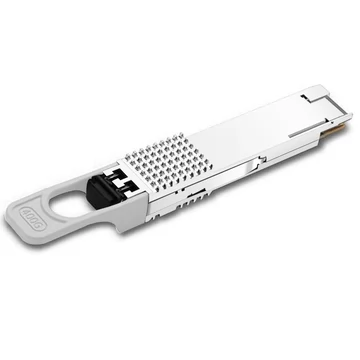

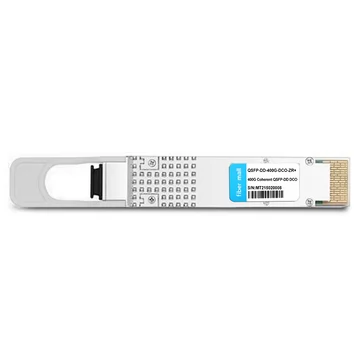

QSFP-DD-400G-DCO-ZR+ 400G Coherent QSFP-DD DCO C-band Tunable Optical Transceiver Module

Name: QSFP-DD-400G-DCO-ZR+ 400G Coherent QSFP-DD DCO C-band Tunable Optical Transceiver Module
Brand: fibermall
SKU: 18297
Price: 7500.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18297

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall

Transceiver Type: QSFP28-100G-DCO-ZR; OSFP-100G-DCO; QSFP-DD-100G-DCO; QSFP-DD-400G-DCO-ZR; CFP-100G-DCO; CFP-200G-DCO; CFP2-200G-DCO; OSFP-400G-DCO-ZR; QSFP-DD-400G-DCO-ZR+; CFP2-100G-DCO; CFP2-400G-DCO; OSFP-400G-DCO-ZR+; QSFP-DD-400G-DCO-ZR-HTx; QSFP-DD-400G-DCO-ZR+-HTx

FM PN:

QSFP-DD-400G-DCO-ZR+

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Available for back order. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

100G/200G/400G Coherent QSFP-DD DCO ZR+ Transceiver Module (DWDM C Band 50GHz Grid: 191.15-196.1GHz)

The QSFP-DD DCO 400ZR+ coherent module is capable of transmitting 400 Gbps over 120 km with excellent OSNR and power consumption in OIF 400ZR implementation protocol and QSFP-DD MSA-compliant designs. Utilizing the latest in-house Sipho Coherent Optical Assemblies (COSA) and nano-ITLA, the module provides excellent price/performance for a variety of applications ranging from data center interconnect to router-router connectivity and access networking needs.

Product Details

FiberMall P/N	QSFP-DD-400G-DCO-ZR+	Vendor Name	FiberMall
Form Factor	QSFP-DD	Reach	ZR+
Client Side	100GE/400GE	Line Side Modulation Format	DP-16QAM
Line Side FEC mode	CFEC	Typical OSNR Sen	24dB
TX Min	-10.0dBm	TX Max	-6.0dBm
RX Min	-12.0dBm	RX Max	0dBm
Fiber Connections	LC/UPC Duplex	Power Consumption	<21.0W
Operation Temperature	0 to 70°C (32 to 158°F)	Protocols	QSFP-DD MSA Compliant

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v Supports Line Side FEC mode: CFEC

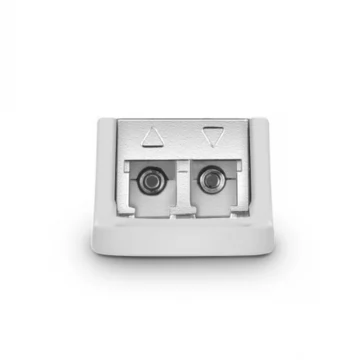

v Duplex LC connector

v Full C-band 50GHz ITU-T transmitter

v 3.3V power supply voltage

v RoHS compliant

v QSFP-DD MSA Compliant

v Used in metro carriers, access, and Cloud/DCI applications

v Supports Line Side Modulation Format: DP-QPSK

v Supports 400 Gbps data center and other interconnects at up to 120 km
