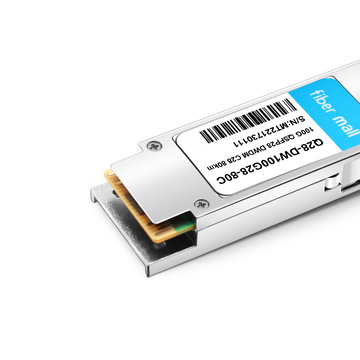

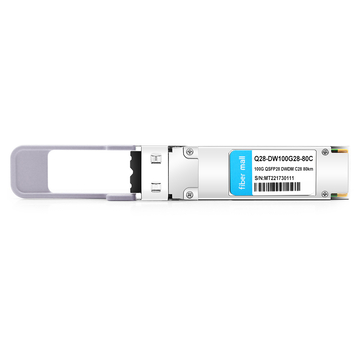

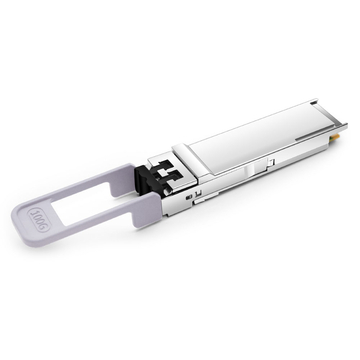

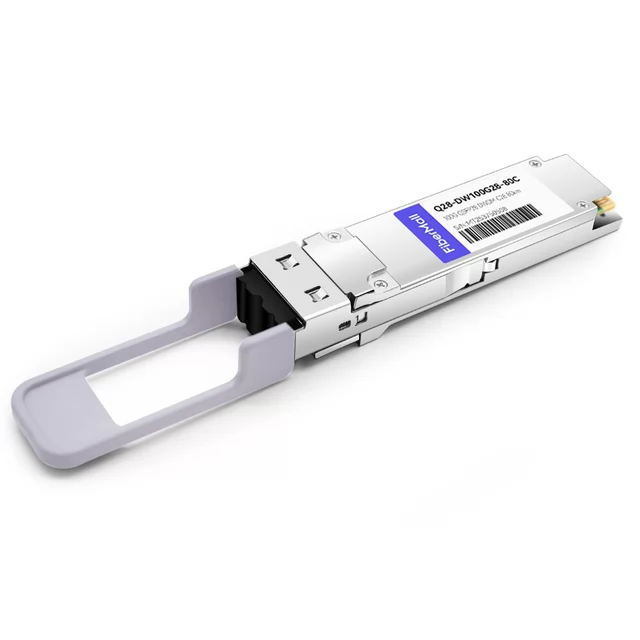

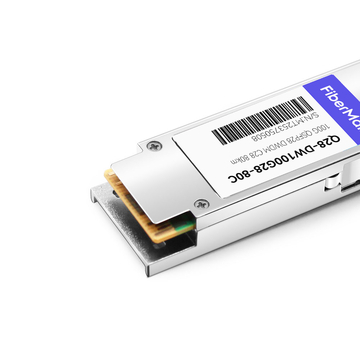

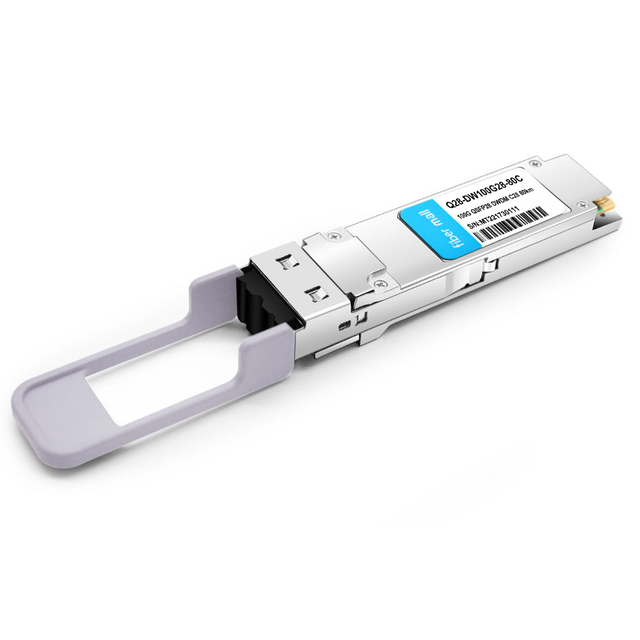

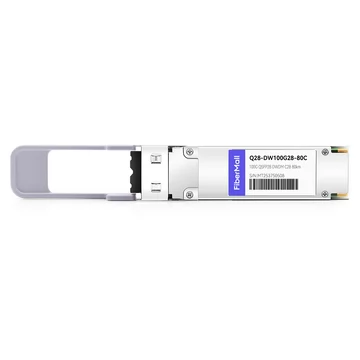

100G DWDM QSFP28 single wave transceiver module enables 80km optical transmission over single-mode fiber (SMF) with EDFA & DCM. It is available in all C-Band wavelengths on the 100GHz DWDM ITU Grid from 1528.77nm to 1565.50nm. The transceiver operates at a data rate of 100Gbps with PAM4 modulation format using duplex LC interfaces. It is compliant with the OIF CEI-28G-VSR, QSFP28 MSA and SFF-8636 Rev 2.10a standards for 100G amplified DWDM networks applications.
Product Details
FiberMall P/N
Q28-DW100G28-80C
Vendor Name
FiberMall
Form Factor
QSFP28
Max Data Rate
100Gbps
Wavelength
1554.94nm
Max Distance
80km (With EDFA and DCM)
Connector
Duplex LC
Transmitter Type
EML
Cable Type
SMF
Receiver Type
PIN
DDM Support
Yes
Modulation Format
PAM4
TX Power
-7.0~+4.0dBm
Receiver Sensitivity
< -11.0dBm
Protocols
QSFP28 MSA, OIF CEI-28G-VSR, SFF-8636 Rev 2.10a
Operation Temperature
0 to 70°C (32 to 158°F)
Quality Assurance
Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
Keep In Stock
Fast Delivery
Professional Service
Technical Support
Worry-Free Guarantee
Shopping Satisfactorily
Premium Quality
High stability
Rigorous Industrial ProductTesting
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
High and low temperature cycle,aging test to ensure good temperature characteristics
Mechanical Impact
Mechanicalvibration testing to ensure the stability of products
MTBF(Mean Time between Failures)testing ensure high stablility
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before
shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
