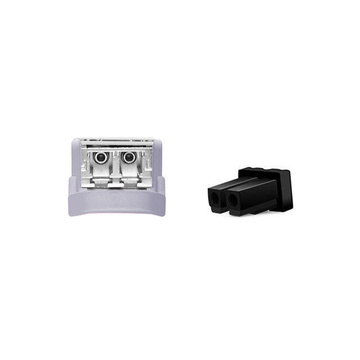

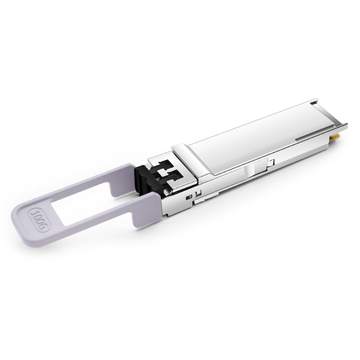

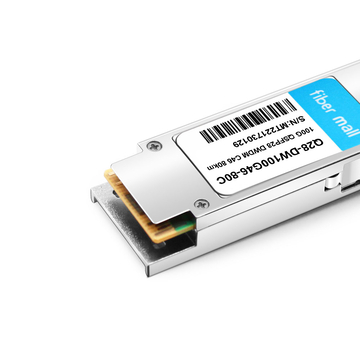

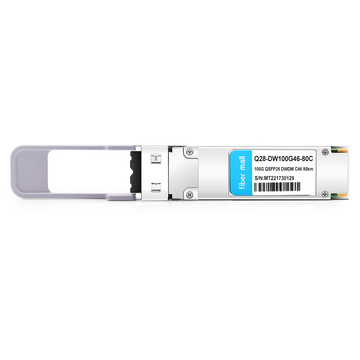

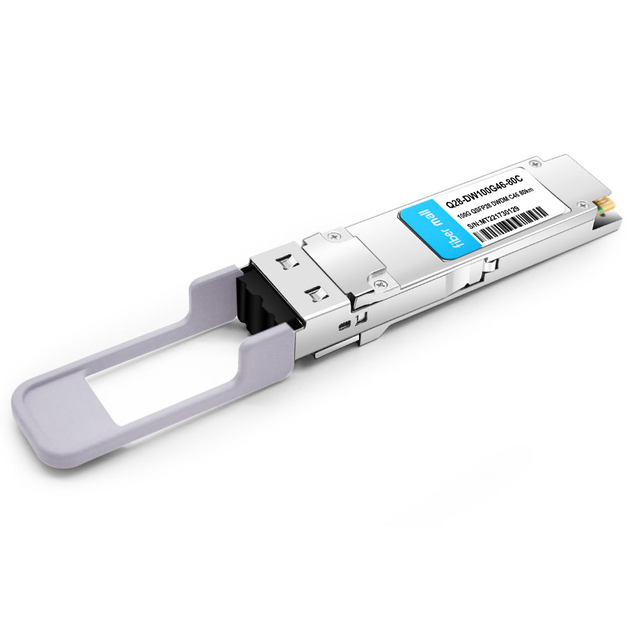

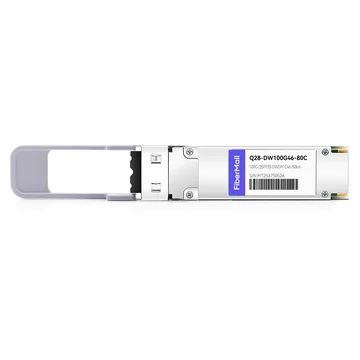

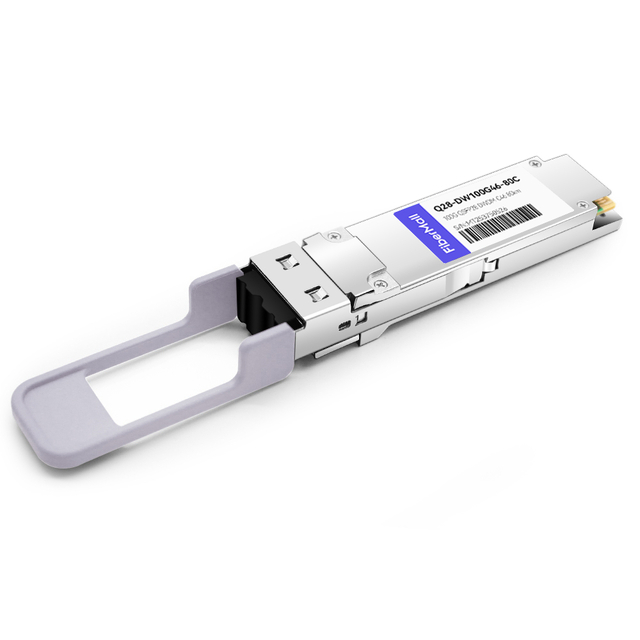

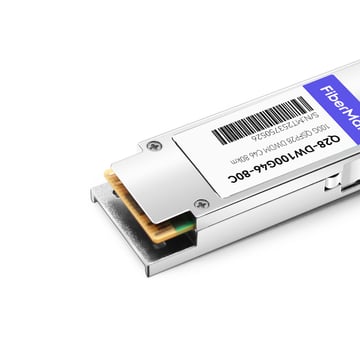

Q28-DW100G46-80C 100G DWDM QSFP28 PAM4 Single Wave C46 1540.56nm 100GHz LC 80km DDM Optical Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:18481
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Compatible
FiberMall
FM PN:
Q28-DW100G46-80C
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Available for back order. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

100G DWDM QSFP28 PAM4 C46 Optical Transceiver Module (1540.56nm LC SMF 80km DDM)


100G DWDM QSFP28 single wave transceiver module enables 80km optical transmission over single-mode fiber (SMF) with EDFA & DCM.  It is available in all C-Band wavelengths on the 100GHz DWDM ITU Grid from 1528.77nm to 1565.50nm. The transceiver operates at a data rate of 100Gbps with PAM4 modulation format using duplex LC interfaces. It is compliant with the OIF CEI-28G-VSR, QSFP28 MSA and SFF-8636 Rev 2.10a standards for 100G amplified DWDM networks applications.

Product Details

FiberMall P/N Q28-DW100G46-80CVendor Name FiberMall
Form Factor QSFP28Max Data Rate 100Gbps
Wavelength 1540.56nmMax Distance 80km (With EDFA and DCM)
Connector Duplex LCTransmitter Type EML
Cable Type SMFReceiver Type PIN
DDM Support YesModulation Format PAM4
TX Power -7.0~+4.0dBmReceiver Sensitivity < -11.0dBm
Protocols QSFP28 MSA, OIF CEI-28G-VSR,
SFF-8636 Rev 2.10a
Operation Temperature 0 to 70°C (32 to 158°F)


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall

our advantages

100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall

Keep In Stock

Fast Delivery
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall

Professional Service

Technical Support
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall
Coding(EEPROM Programming)
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall
Testing system

Partial test demonstartion

100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall
Cisco N9k-C92160YC-X-C
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall
HP ProCurve 5406zl J8697A
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall
ARISTA 7-50QX-32
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall
Juniper EX4300
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall
HW S5700-28X-L1-AC
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall
Brocade VDX 6720
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall
DELL S4048 ON
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall
DATACOM DM4100
100G DWDM QSFP28 PAM4 Single Wave C46 80km Module - FiberMall
H3C LS-5500-28C-S

Product Features

v Supports 100Gbps

v Available in all C-Band Wavelengths on the 100GHz DWDM ITU Grid

v 80km reach over SMF with EDFA&DCM (dispersion compensation modules)

v QSFP28 MSA Compliant

v SFF-8636 Rev 2.10a Compliant

v 4x25G Electrical Interface

v LC Duplex Connector

v Single 3.3V Power Supply

v Power Dissipation < 5.5W

v Commercial Case Temperature Range of 0°C to 70°C

v I2C Interface with Integrated Digital Diagnostic Monitoring

v Safety Certification: TUV/UL/FDA

v RoHS Compliant



Applications

v 100G Amplified DWDM Networks

v Data Center Interconnects
