400G OSFP to OSFP Passive DAC Flat Top 50cm | FiberMall

Add to wish

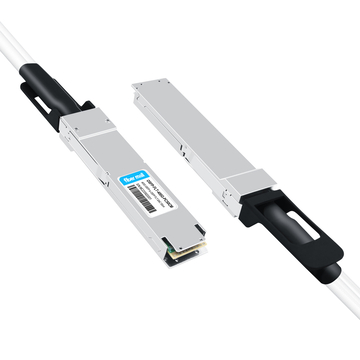

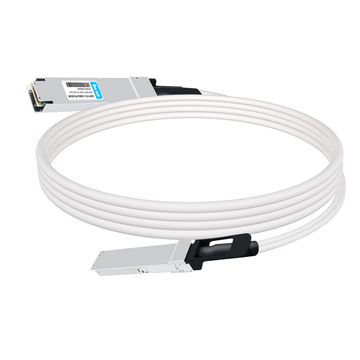

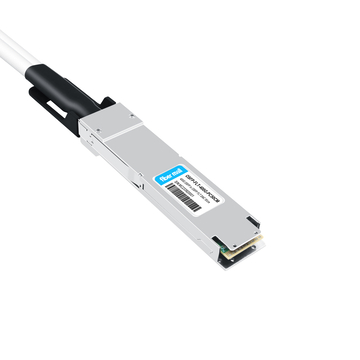

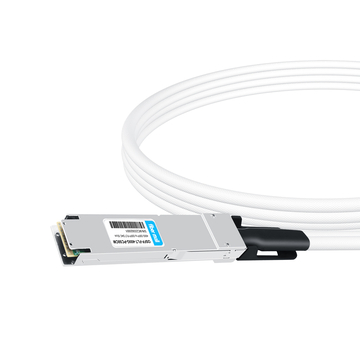

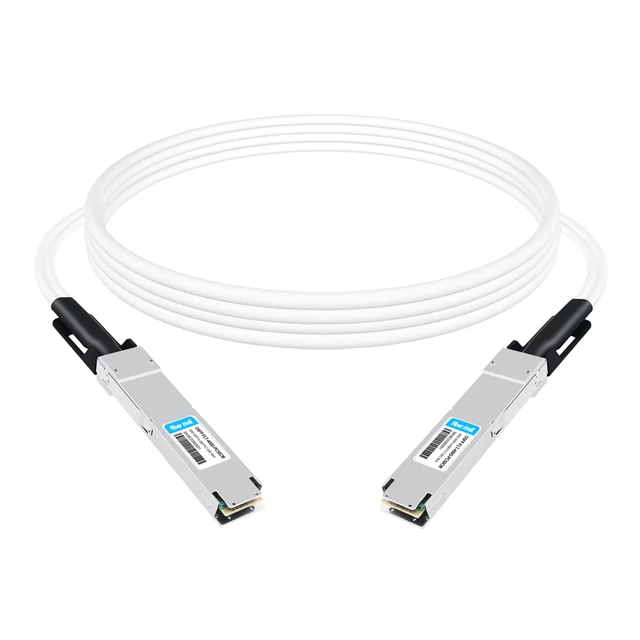

OSFP-FLT-400G-PC50CM 0.5m (1.6ft) 400G NDR OSFP to OSFP PAM4 Passive Direct Attached Cable, Flat top on one end and Flat top on other

Name: OSFP-FLT-400G-PC50CM 0.5m (1.6ft) 400G NDR OSFP to OSFP PAM4 Passive Direct Attached Cable, Flat top on one end and Flat top on other
Brand: fibermall
SKU: 19297
Price: 110.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19297

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

Length: 0.5m (FLT); 1m (FLT); 1.5m (FLT); 2m (FLT); 2.5m (FLT); 3m (FLT)

FM PN:

OSFP-FLT-400G-PC50CM

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Available for back order. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Connecting NVIDIA ConnectX-7 400G OSFP NIC and NVIDIA ConnectX-7 400G OSFP NIC with a 400G OSFP Flat-top DAC (OSFP to OSFP PAM4 Direct Attach Cable 28AWG, Flat Top and Flat Top 50cm)

Product Details

FiberMall P/N	OSFP-FLT-400G-PC50CM	Vendor Name	FiberMall
Connector	OSFP FLT to OSFP FLT	Max Data Rate	400Gb/s
Wire Gages	28AWG	Cable Length	50cm (1.6ft)
Jacket Material	Hair Tail Technology Net	Minimum Bend Radius	35mm
Operation Temperature	0~ 70 °C (32 to 158°F)	Modulation Format	PAM4
Protocols	OSFP MSA, CMIS 4.0	Application	400G NDR/Ethernet

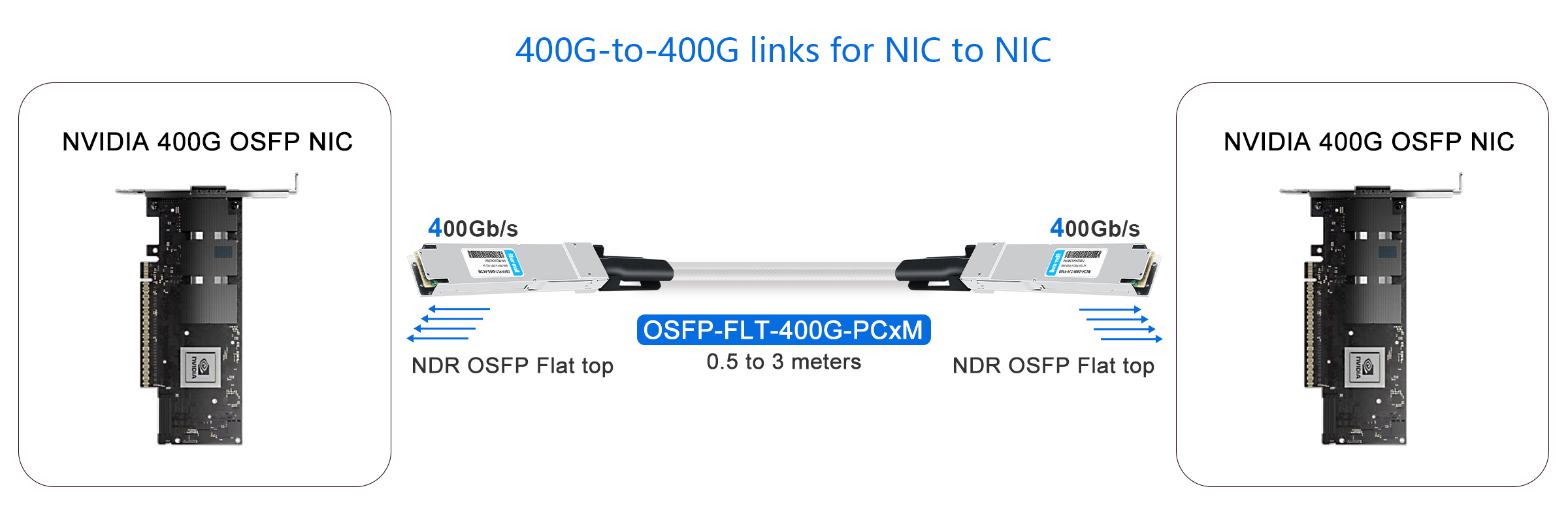

NVIDIA 400G OSFP NIC to 400G NIC Links Using 400G OSFP Flat-top Passive DAC Cable

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing system

FiberMall's OSFP series products incorporate advanced technology and design, boasting advantages such as high efficiency, density, reliability, and low power consumption. They stand as an ideal choice for high-speed data transmission.

Switch Introduction

NVIDIA Quantum-2 Switches

Network Card Introduction

Network Card List

Notes :

1. 100G can be supported as either 4x25G NRZ or 2x50G.

2. 200G can be supported as either 4x50G or 2x100G.

4. QSFP112 is backwards compatible with QSFP56 and QSFP28.

Switch to Switch (NDR) - Optics

Switch to Switch (NDR) - Copper

Switch to Switch (NDR) - Active Copper & Direct Attached Copper

Switch to Switch (NDR) - HDR&EDR

Switch to HCA

Switch to HCA (NDR) - Optics

Switch to HCA (NDR) - Copper

Switch-to-DGX H100 GPU Systems

	OSFP-FLT-400G-PC50CM	QDD-OSFP-FLT-AEC50CM
FiberMall P/N	OSFP-FLT-400G-PC50CM	QDD-OSFP-AEC50CM
Vendor Name	FiberMall	FiberMall
Connector	OSFP FLT to OSFP FLT	QSFP-DD to OSFP Flat Top
Max Data Rate	400Gb/s	400Gb/s
Wire Gages	28AWG	AWG 30
Cable Length	50cm (1.6ft)	50cm (1.6ft)
Jacket Material	Hair Tail Technology Net	Hair Tail Technology Net
Minimum Bend Radius	35mm	35mm
Operation Temperature	0~ 70 °C (32 to 158°F)	0~ 70 °C (32 to 158°F)
Modulation Format	PAM4	PAM4
Protocols	OSFP MSA, CMIS 4.0	IEEE 802.3bj and IEEE 802.3cd
Application	400G NDR/Ethernet	400G Ethernet

400G OSFP DAC

Product Features

 OSFP-RHS Module compliant to OSFP MSA

 Transmission data rate up to PAM4 106.25Gbps per channel

 Enable 400Gb/s to 400Gb/s Transmission(4*100G,CH1~CH4)

 Link length up to 3.0m

 Built-in EEPROM functions

 Operating case temperature 0°C to +70°C

 RoHS2.0 compliant

References

 OSFP MSA Rev5.0

 IB NDR&IEEE802.3ck

 Common Management Interface Specification(CMIS) Rev5.0
