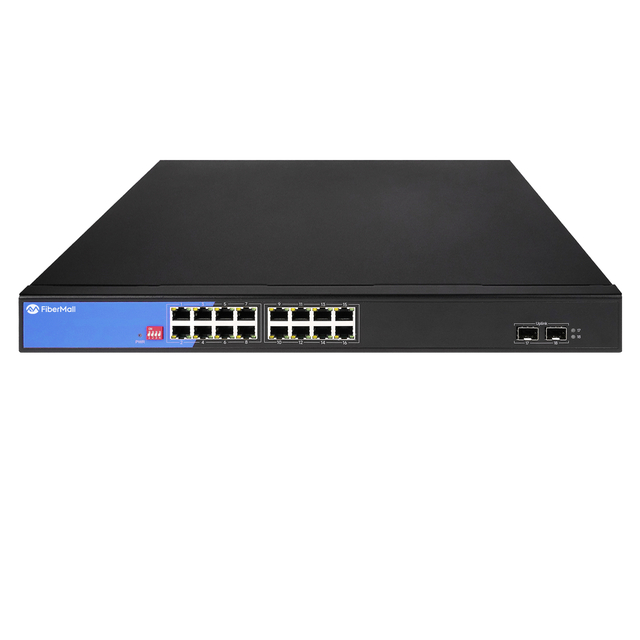

1G Ethernet Switch 16 port with 2x 1G SFP Up1inks | FiberMall

Add to wish

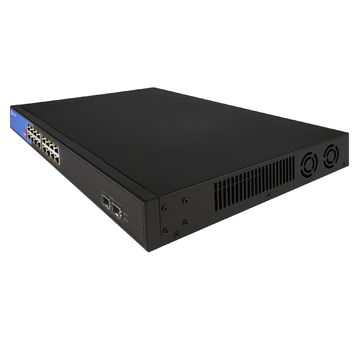

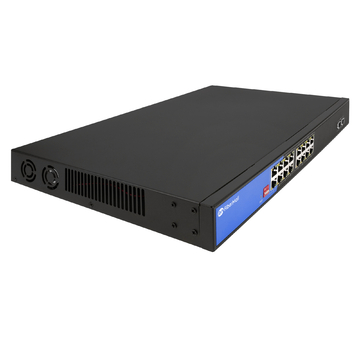

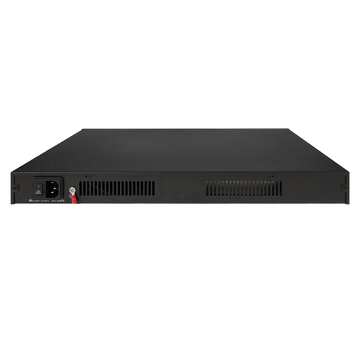

S2100-16T2S-P, 16-Port Ethernet Switch L2+, PoE+ Switch, 16x 10/100/1000BASE-T RJ45, with 2x 1G SFP Uplinks

Name: S2100-16T2S-P, 16-Port Ethernet Switch L2+, PoE+ Switch, 16x 10/100/1000BASE-T RJ45, with 2x 1G SFP Uplinks
Brand: fibermall
SKU: 30092
Price: 230.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:30092

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Types: POE L2+

FM PN:

S2100-16T2S-P

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

S2100-16T2S-P, 16-Port Ethernet Switch L2+, PoE+ Switch, 16x 10/100/1000BASE-T RJ45, with 2x 1G SFP Uplinks

S2100-16T2S-P series non management PoE switch has 16x10/100/1000Mbps adaptive RJ45 ports and 2x1000Mbps SFP ports. Each RJ45 port supports MDI/MDIX and wire speed forwarding functions. Store and forward to provide stable and reliable data transmission.

Product Details

Ports	16x 10/100/1000BASE-T RJ45 POE\| 2x 1G SFP	Switch Chip	Realtek
Switching Capacity	52Gbps	Input Voltage	AC 100-240V 50/60Hz
Forwarding Rate	26.78Mpps	PoE Standard	802.3af/at
Forwarding delay	<10us	Jumbo Frame	Support
Operating Temperature	-10℃ ~ +50℃ (14 to 122℉)	Max. Power Consumption	≤400W
MTBF	100,000 Hours	Management	Support console
Mounting Methods	Standard Rack Mounted	Storage temperature	-40℃ ~ +85℃ (-40 to 185°F)
Power supply	AC	Weight	3.9kg
Dimensions (HxWxD)	44028044mm	Warranty	3 Years

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

Connectivity Solutions

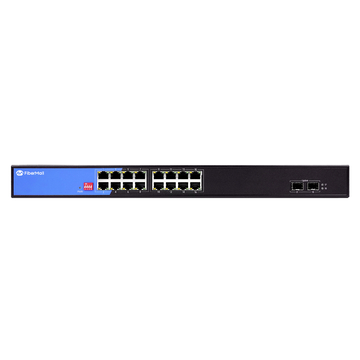

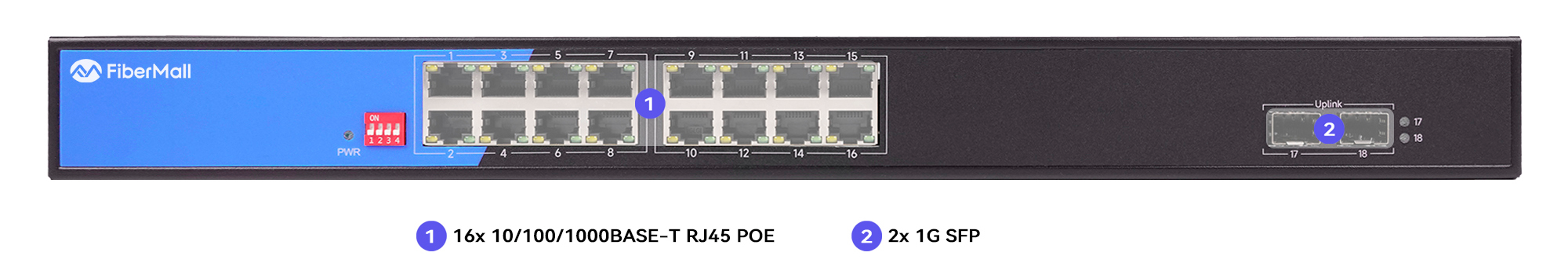

Gigabit Port Configuration

16x10/100/1000Base-T POE+ 2x1000M SFP Unmanaged PoE Switch

① 16x 10/100/1000BASE-T RJ45 POE ② 2x 1G SFP

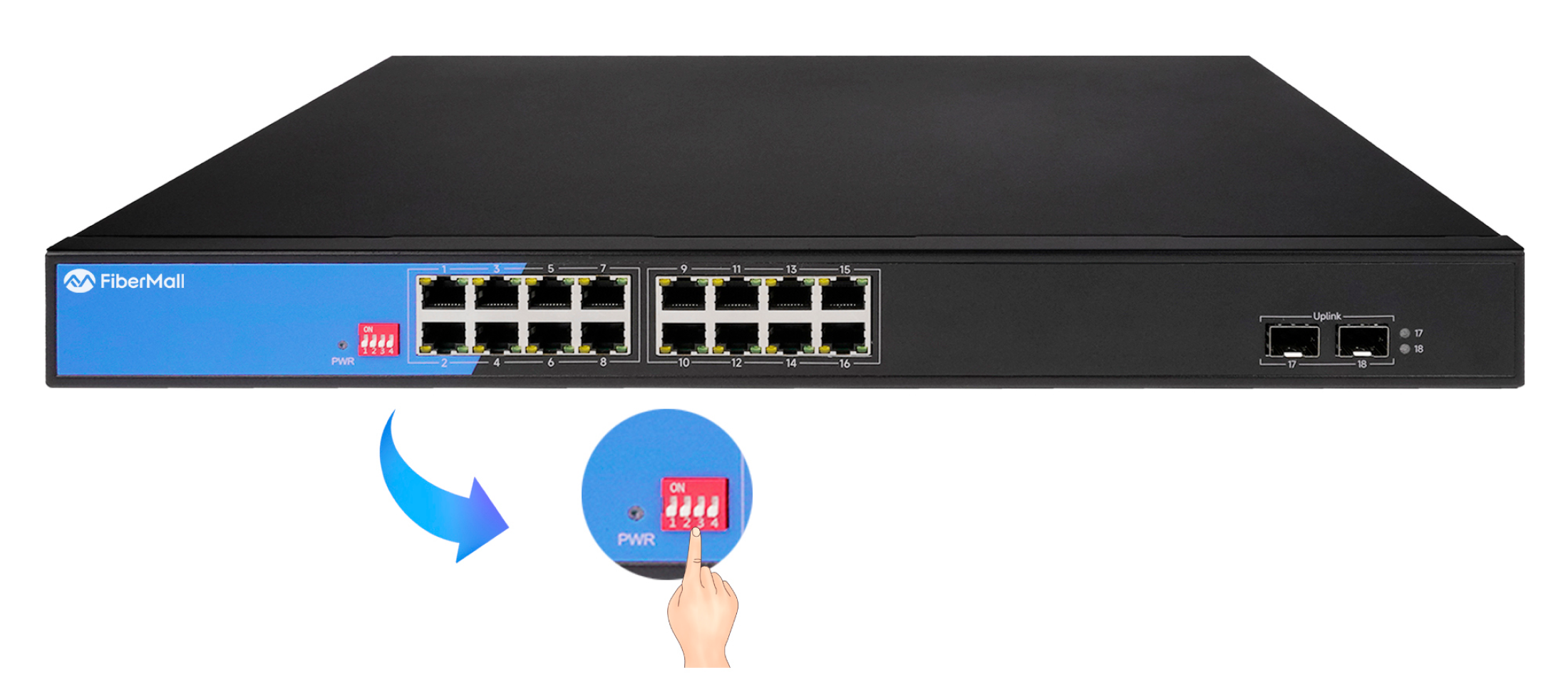

Minimalist usage method

No configuration required, plug and play, equipped with dip switch, AI POE/long-distance transmission/port isolation/storm suppression four functions for flexible switching

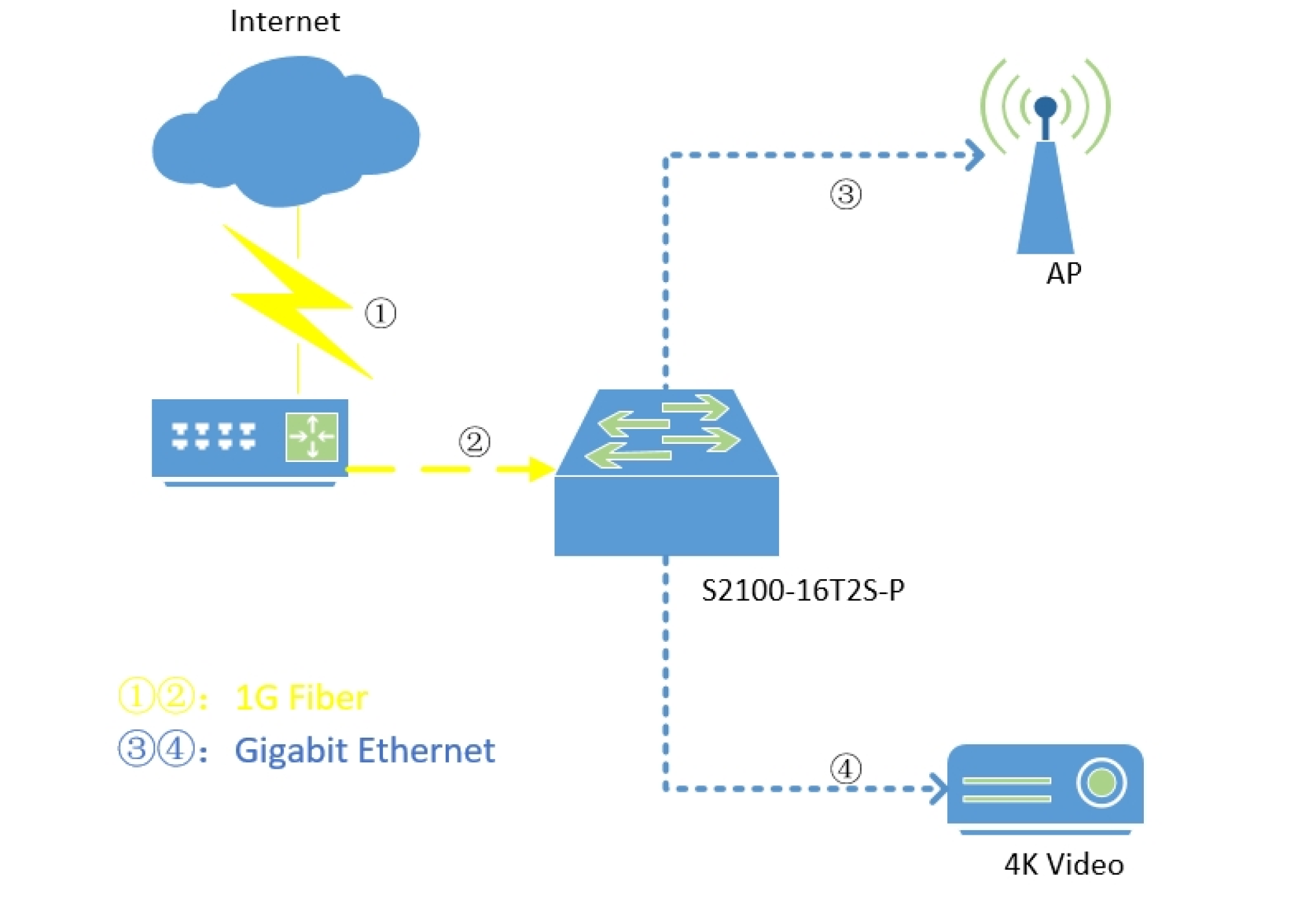

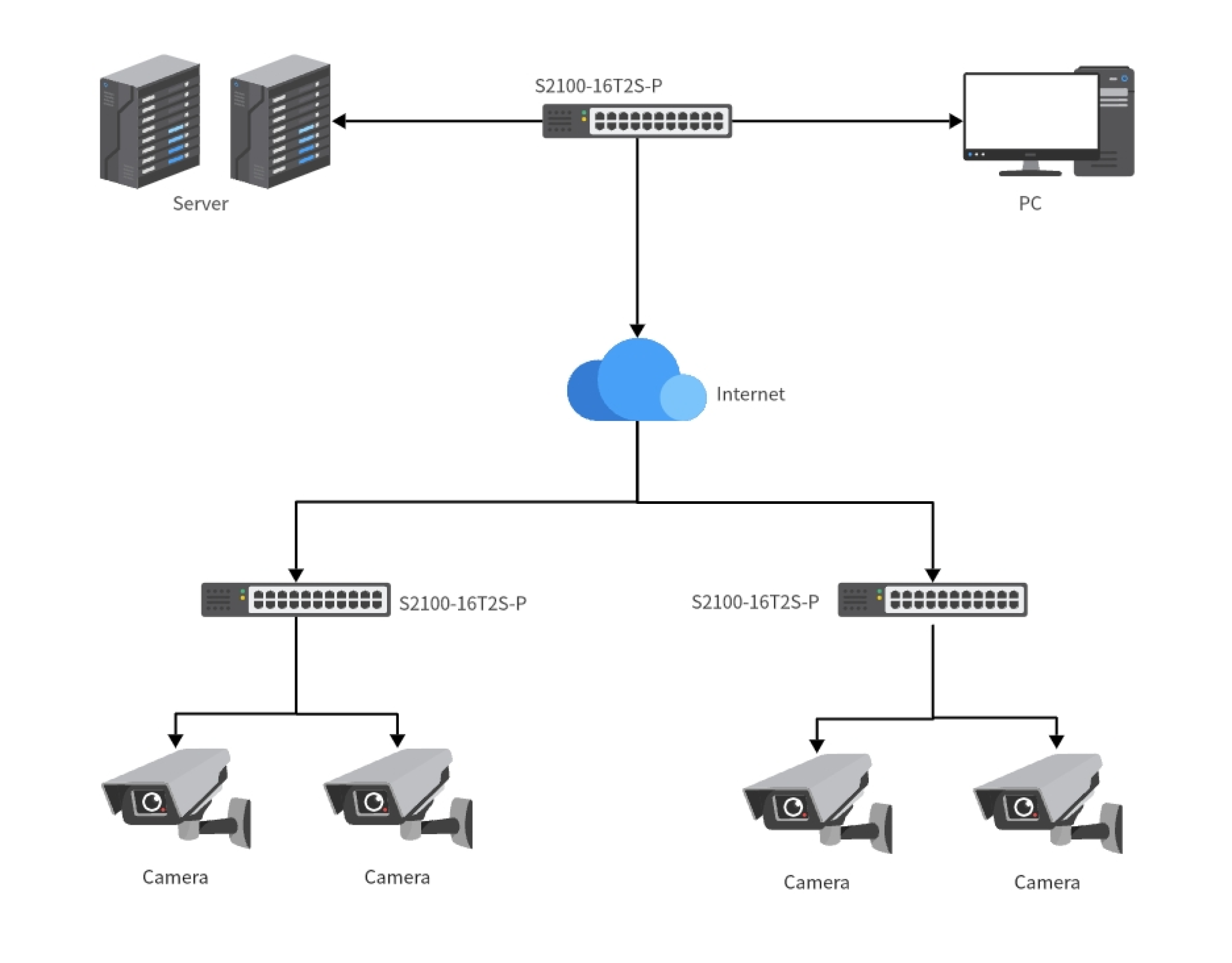

Application network topology diagram

16-Port Ethernet Switch
