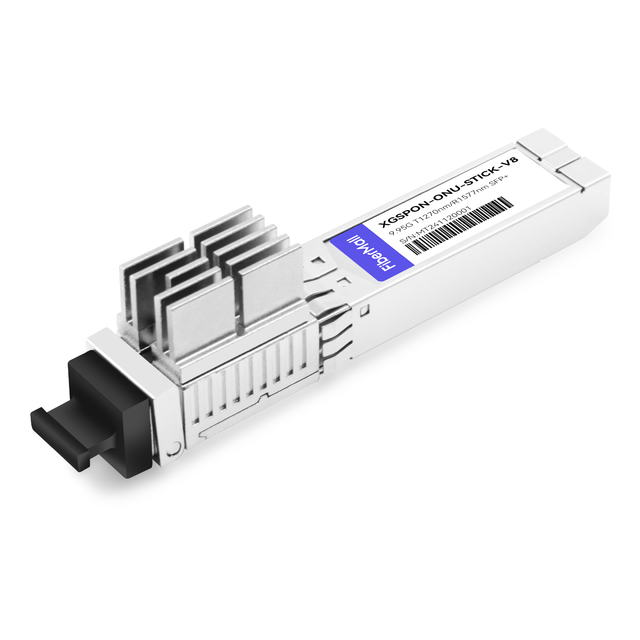

H3C XGSPON ONU Stick SFP+ 8311 Firmware Version | FiberMall

Add to wish

XGSPON ONU Stick SFP+ Supporting MAC Compatibility for H3C 10G Switches and Routers: S6520 and Others,8311 Firmware Version

Name: XGSPON ONU Stick SFP+ Supporting MAC Compatibility for H3C 10G Switches and Routers: S6520 and Others,8311 Firmware Version
Brand: fibermall
SKU: 20849
Price: 160.00 USD
Availability: OutOfStock
Rating: 5 (13 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20849

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Aruba; H3C; Huawei; Intel; Mellanox; MikroTik; Netgate; TP-Link; Ubiquiti

Firmware Version: 8311 Community; Standard

FM PN:

XGSPON-ONU-STICK-V8

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

H3C Compatible XGSPON ONU Stick SFP+ with MAC Transceiver,8311 Firmware Version (Supports Web management), Chipset: MaxLinear PRX126 (SMF, 9.953G-TX/9.953G-RX,1270 nm-TX/1577 nm-RX, 20km, SC/APC, DDM)

The XGSPON ONU SFP+ transceiver, featuring the MaxLinear PRX126 chipset and 8311 firmware version, delivers 9.953Gbps bi-directional speeds (1270nm TX/1577nm RX) over single-mode fiber (SMF) over distances of up to 20km. It is designed for seamless integration into XGSPON OLT systems and supports advanced web-based management. Designed for seamless integration into XGSPON OLT systems, it supports advanced web-based management for real-time configuration, monitoring, and diagnostics. SC/APC connectors ensure low insertion loss, while built-in DDM (Digital Diagnostic Monitoring) provides accurate performance tracking of temperature, voltage, and optical power. Ideally suited for ISP and enterprise GPON/XPON networks, this plug-and-play stick delivers carrier-grade reliability, plug-and-play compatibility, and cost-effective fiber-to-the-home (FTTH) deployments. This high-performance, future-proof solution improves network scalability and management efficiency.

Product Details

H3C Compatible	XGSPON-ONU-STICK	Vendor Name	FiberMall
Application	XGSPON ONU	ODN Class	N1/N2
Wavelength	TX 1270nm/RX 1577nm	Data Rate	TX 9.95G/RX 9.95G
TX Power	+4.0~+9.0dBm	Receiver Sensitivity	< -28.5dBm
Package	SFP+	Interface	SC/APC
Cable Type	SMF	Max Distance	20km
Operation Temperature	-40°C~85℃	Protocols	ITU-T G.9807, SFP+ MSA

The 10G XGSPON ONU Stick SFP+ is inserted into the 10G SFP+ port of the switch or router to communicate with the 10G XGSPON OLT.

Quality Assurance

Excellent quality is the foundation of FiberMall's survival and development. Our operations team is made up of experts with many years of experience in the optical communication industry. Our manufacturers are first-class in the industry. Many of them are qualified OEMs for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process, production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

8311 Firmware WEB Login Instructions:

Insert the XGSPON ONU stick into the optical port of the device, and set the computer's IP address to be on the same network segment as the ONU stick, for example, set it to 192.168.11.2.

1. Enter the ONU stick's IP address in a WEB browser: 192.168.11.1.

2. The browser may prompt you to switch to an HTTPS connection. Please follow the prompts.

3. Standard versions require no password — click the Login button to access the web management interface. For the WAS-110 version, use the password: Aa123456.

To set the password for the XGSPON ONU Stick SFP+, navigate through the following menu path:

8311 → System → Administration → Router Password

For detailed configuration instructions, please refer to the XGSPON ONU Stick SFP+ 8311 Community Firmware User Guide.

This FTTH diagram illustrates an XGSPON network: The central office routes signals via Optical Splitters to NAPs (Network Access Points), distributing symmetrical 10G bandwidth to Business hubs and Dwelling Units, then Homes. The blue/white design clarifies fiber paths, highlighting efficient XGSPON-based FTTH infrastructure for high-speed connectivity.

	XGSPON-ONU-STICK-V8	XGSPON-ONU-C	GPON-ONU-STB+
FiberMall P/N	XGSPON-ONU-STICK	XGSPON-ONU-C	GPON-ONU-STB+
Vendor Name	FiberMall	FiberMall	FiberMall
Application	XGSPON ONU	XGSPON ONU	-
ODN Class	N1/N2	N1/N2	-
Wavelength	TX 1270nm/RX 1577nm	TX 1270nm/RX 1577nm	TX-1310nm/RX-1490nm
Data Rate	TX 9.95G/RX 9.95G	TX 9.95G/RX 9.95G	-
TX Power	+4.0~+9.0dBm	+4.0~+9.0dBm	+0.5~+5.0dBm
Receiver Sensitivity	< -28.5dBm	< -28.0dBm	< -28.0dBm
Package	SFP+	SFP+	-
Interface	SC/APC	SC	-
Cable Type	SMF	SMF	SMF
Max Distance	20km	20km	20km
Operation Temperature	-40°C~85℃	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Protocols	ITU-T G.9807, SFP+ MSA	ITU-T G.9807, SFP+ MSA	MSA and IEEE 802.3

Custom XGSPON ONU Stick SFP+

v Firmware Compatibility: Supports 8311 community firmware.

v Hardware Specs: High-performance design with 1 GB RAM for seamless operation.

v Global Deployment: Widely adopted by telecom providers in the US/Canada/UK (e.g., AT&T and Orange,and Others).

Customization Support

Allows configuration of the following parameters:

v PON serial number (ONT ID)

v Vendor ID

v Equipment ID

v Logical ONU ID

v Logical password

v MAC address

Product Features

v Single fiber bi-directional data links symmetric TX 9.953 Gb/s / RX 9.953 Gb/s with MAC function

v SFP package with SC /APC receptacle

v Single 3.3 V power supply

v Hot-pluggable capability

v High power 1270 nm DML DFB LD and high sensitivity 1577 nm APD

v Support 20km transmission distance with SMF

v CML-compatible data input/output interface

v Low power dissipation < 3W

v Low EMI and excellent ESD protection

v Digital diagnostic monitor interface

v RoHS-6 compliance

v Case temperature range: -40 °C to 85 °C

v Support of GPON/XGS-PON/NGPON2 standards

v 256 GEM/XGEM ports, 64 T-CONTs or 16 LLIDs

v Carrier Grade QoS Engine

v Advanced loopback and diagnostic capabilities

v Supports Synchronous Ethernet (SyncE)

Applications

v Residential home gateway

v Network switch/router, VDSL MDU, and G.fast DPU

v Mobile backhaul

Standard

v Complies with ITU-T G.987.2

v Complies with ITU-T G.9807.1, G.9807.2

v ITU-T G.988 OMCI L2 MAC Bridge (Up to 64 L2 bridges)

v G.8275/Y.1369/IEEE 1588v2

v IEEE 802.1ag and ITU-T Y.1731 Ethernet OAM delay & loss measurement hardware support
