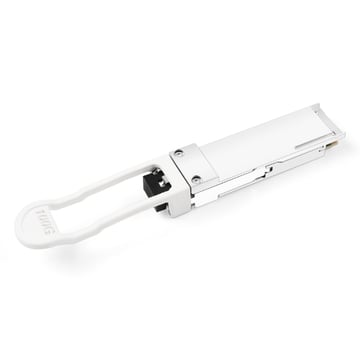

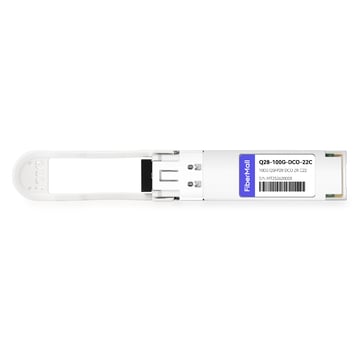

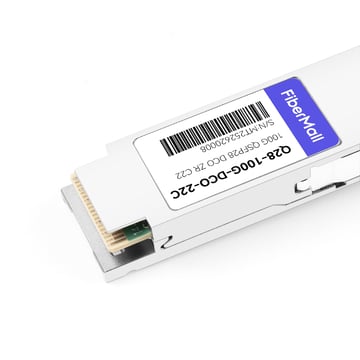

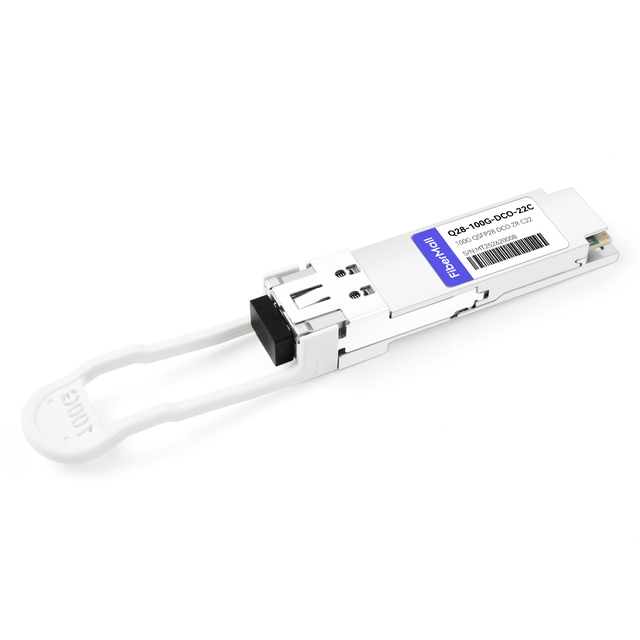

The QSFP28 digital optical (DCO) transceiver supports 100G transmission over distances of up to 120 km (dispersion-limited, optionally expandable to 300 km) for edge network applications. On the host side, the module can accommodate IEEE 100GE Ethernet or ITU-T OTN OTU4 signals. The line-side interface specification is in accordance with IEEE Standard 802.3-2022 100GBASE-ZR [8] and ITU-T G.698.2 DW50U-8A2(C)F / DW100U-8A2(C)F [11], which defines a 27.95GBd dual-polarized differential QPSK modulation format.
| FiberMall P/N | Q28-100G-DCO-22C | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 100Gbps |
| Wavelength | 1554.13nm | Reach | 80km (unamplified) 120km (amplified) >300km (amplified and DCM) |
| Fiber Connections | LC/UPC Duplex | Connector | Duplex SMF |
| Power Consumption | <5.5W | Management Interface | SFF-8636 |
| TX Power | -8~-4dBm | RX Power | -30~+3dBm |
| Transmitter | Tunable | Receiver | Coherent |
| Client Side | 100GE Ethernet | Line Side FEC Mode | SC |
| Host Side Modulation Format | NRZ | Line Side Modulation Format | DP-DQPSK |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Protocols | EEE Std. 802.3-2022 100GBASE-ZR or ITU-T G.709. |
100G DWDM DCO QSFP28 is suitable for 40km with DWDM MUX DEMUX.
100G DWDM DCO QSFP28 is suitable for 80km/120km with EDFA and DWDM MUX DEMUX.
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
