Juniper Compatible 100G DWDM DCO QSFP28 Transceiver C43 | FiberMall

Add to wish

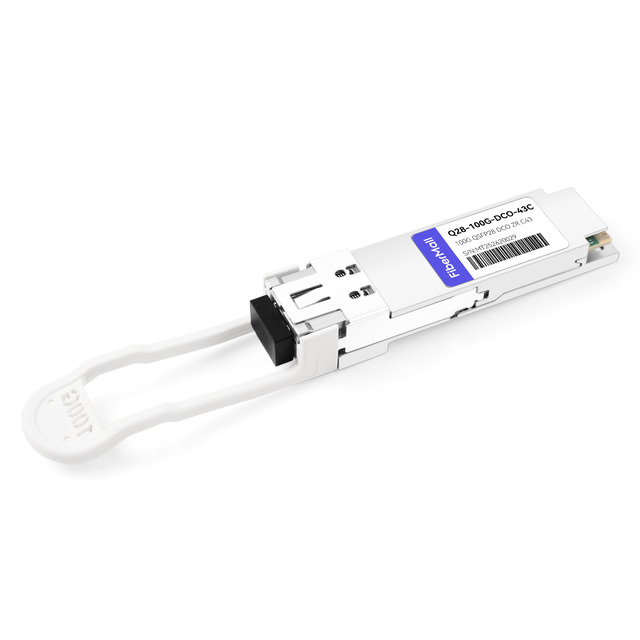

Juniper Compatible 100G DWDM DCO QSFP28 C-band C43 1558.17nm 100GHz Duplex LC Optics Transceiver

Name: Juniper Compatible 100G DWDM DCO QSFP28 C-band C43 1558.17nm 100GHz Duplex LC Optics Transceiver
Brand: fibermall
SKU: 21161
Price: 3600.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:21161

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista; Dell; H3C; Huawei; Juniper

DWDM ITU Channel: C15; C16; C17; C18; C19; C20; C21; C22; C23; C24; C25; C26; C27; C28; C29; C30; C31; C32; C33; C34; C35; C36; C37; C38; C39; C40; C41; C42; C43; C44; C45; C46; C47; C48; C49; C50; C51; C52; C53; C54; C55; C56; C57; C58; C59; C60; C61

FM PN:

Q28-100G-DCO-43C

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Juniper Compatible 100G QSFP28 DCO Transceiver Module (1558.17nm, Duplex LC SMF ZR DDM)

The QSFP28 digital optical (DCO) transceiver supports 100G transmission over distances of up to 120 km (dispersion-limited, optionally expandable to 300 km) for edge network applications. On the host side, the module can accommodate IEEE 100GE Ethernet or ITU-T OTN OTU4 signals. The line-side interface specification is in accordance with IEEE Standard 802.3-2022 100GBASE-ZR [8] and ITU-T G.698.2 DW50U-8A2(C)F / DW100U-8A2(C)F [11], which defines a 27.95GBd dual-polarized differential QPSK modulation format.

Product Details

FiberMall P/N	Q28-100G-DCO-43C	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	100Gbps
Wavelength	1558.17nm	Reach	80km (unamplified) 120km (amplified) >300km (amplified and DCM)
Fiber Connections	LC/UPC Duplex	Connector	Duplex SMF
Power Consumption	<5.5W	Management Interface	SFF-8636
TX Power	-8~-4dBm	RX Power	-30~+3dBm
Transmitter	Tunable	Receiver	Coherent
Client Side	100GE Ethernet	Line Side FEC Mode	SC
Host Side Modulation Format	NRZ	Line Side Modulation Format	DP-DQPSK
Operation Temperature	0 to 70°C (32 to 158°F)	Protocols	EEE Std. 802.3-2022 100GBASE-ZR or ITU-T G.709.

100G DWDM DCO QSFP28 is suitable for 40km with DWDM MUX DEMUX.

100G DWDM DCO QSFP28 is suitable for 80km/120km with EDFA and DWDM MUX DEMUX.

100G DWDM DCO QSFP28 Solution for 80km/120km

Quality Assurance

Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial Product Testing

Optical communication products are industrial products that require high stability and reliability. FiberMall adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably

: Temperature Impact; High and low-temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

: EMI Testing; Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF(Mean Time Between Failures)testing ensures high stability

Spectral Testing

100G DWDM DCO QSFP28 Optical Module supports C15~C61 band setting with Side Mode Suppression Ratio (SMSR) >50dB and Spectral Width (-20dB) <0.5nm. It meets the stringent requirements of DWDM systems, ensuring signal purity and compatibility with various DWDM system needs.

Spectral Test Results Spectral Test Environment

Partial compatibility test demonstartion

ARISTA 7060SX2-48YC6

H3C S6850-56HF

Cisco N9K-C92160YC-X

HP JG510A

Juniper QFX5110-48S-AFO

Mellanox SN4700

Cisco-N9K-C93600CD-GX

NVIDIA QM9790

Ruijie RG-S6990-128QC2XS

100G DWDM DCO QSFP28
