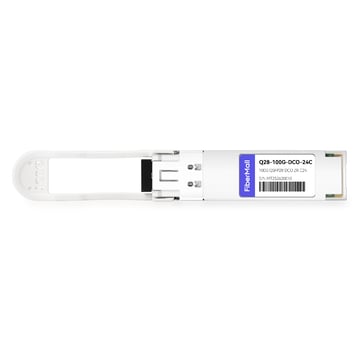

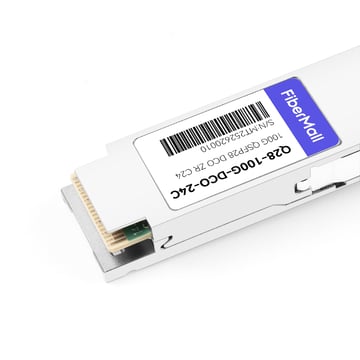

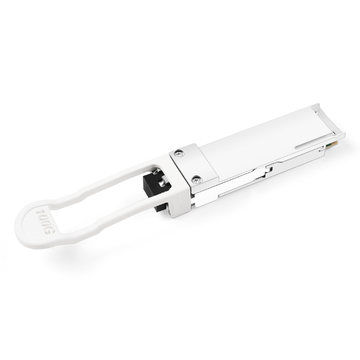

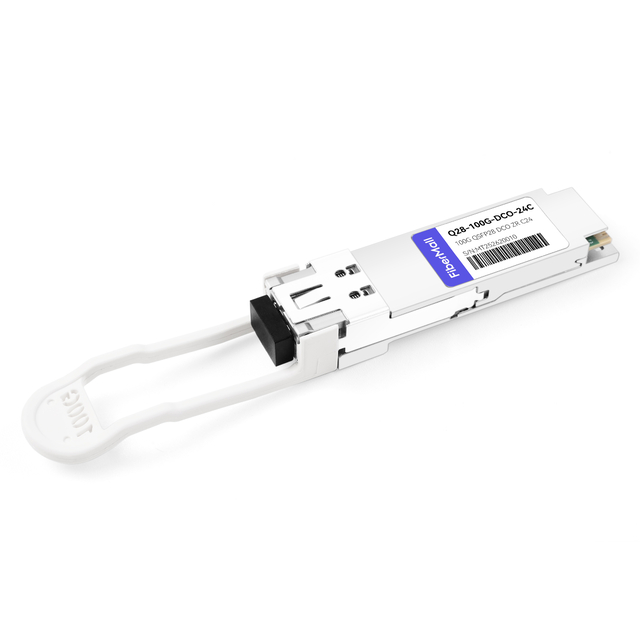

The QSFP28 digital optical (DCO) transceiver supports 100G transmission over distances of up to 120 km (dispersion-limited, optionally expandable to 300 km) for edge network applications. On the host side, the module can accommodate IEEE 100GE Ethernet or ITU-T OTN OTU4 signals. The line-side interface specification is in accordance with IEEE Standard 802.3-2022 100GBASE-ZR [8] and ITU-T G.698.2 DW50U-8A2(C)F / DW100U-8A2(C)F [11], which defines a 27.95GBd dual-polarized differential QPSK modulation format.
FiberMall P/N | Q28-100G-DCO-24C | Vendor Name | FiberMall |
Form Factor | QSFP28 | Max Data Rate | 100Gbps |
Wavelength | 1550.92nm | Reach | 80km (unamplified) 120km (amplified) >300km (amplified and DCM) |
Fiber Connections | LC/UPC Duplex | Connector | Duplex SMF |
Power Consumption | <5.5W | Management Interface | SFF-8636 |
TX Power | -8~-4dBm | RX Power | -30~+3dBm |
Transmitter | Tunable | Receiver | Coherent |
Client Side | 100GE Ethernet | Line Side FEC Mode | SC |
Host Side Modulation Format | NRZ | Line Side Modulation Format | DP-DQPSK |
Operation Temperature | 0 to 70°C (32 to 158°F) | Protocols | EEE Std. 802.3-2022 100GBASE-ZR or ITU-T G.709. |
100G DWDM DCO QSFP28 is suitable for 40km with DWDM MUX DEMUX.
100G DWDM DCO QSFP28 is suitable for 80km/120km with EDFA and DWDM MUX DEMUX.
