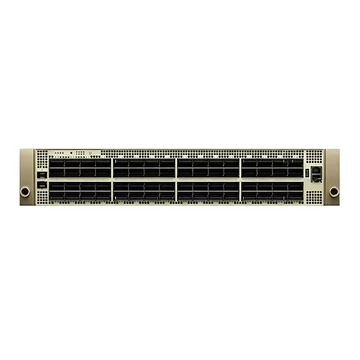

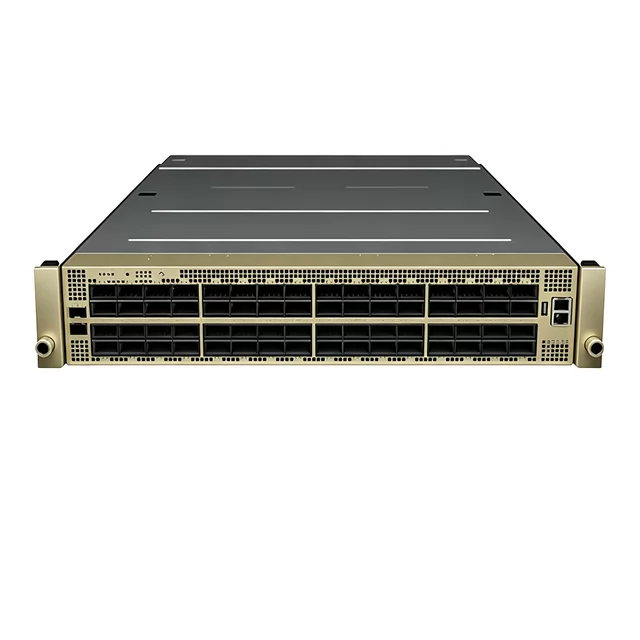

NVIDIA SN5610 (920- 9N42F-00RI-3C1) Spectrum-4 based 800GbE 2U Open Ethernet switch with Cumulus Linux Authentication, 64 OSFP ports and 2 SFP28 ports, 4 AC PSUs, Secure-boot, standard depth, Connector-to-Power Airflow, Tool-less Rail Kit

NVIDIA SN5610 (920- 9N42F-00RI-3C1) Spectrum-4 based 800GbE 2U Open Ethernet switch with Cumulus Linux Authentication, 64 OSFP ports and 2 SFP28 ports, 4 AC PSUs, Secure-boot, standard depth, Connector-to-Power Airflow, Tool-less Rail Kit

Product Details

Part Number	SN5610	Mount Rack	2U rack mount
Ports	64x OSFP 800GbE | 2x SFP28 25GbE	System Power Usage	900W
Switching Capacity	51.2Tb/s	Airflow	Connector-to-Power (C2P)
CPU	AMD EPYC 3251, 8-Cores, Secured boot	System Memory	32GB RAM DDR4, 80GB NVMe
Software	Cumulus Linux	Hot-Swap Power Supplies	4 (2+2 redundant)
Dimensions(HxWxD)	3.46(H) x 17.2(W) x 30.5/31.3(D) 88mm(H) x 438mm(W) x 775mm(D) / 796mm	Warranty	Supported for 1/3/5 years, depending on the years of service purchased

800G Ethernet Switch to 400G Ethernet Switch

2x400G to 400G Links

800G Ethernet Switch to 800G Ethernet Switch

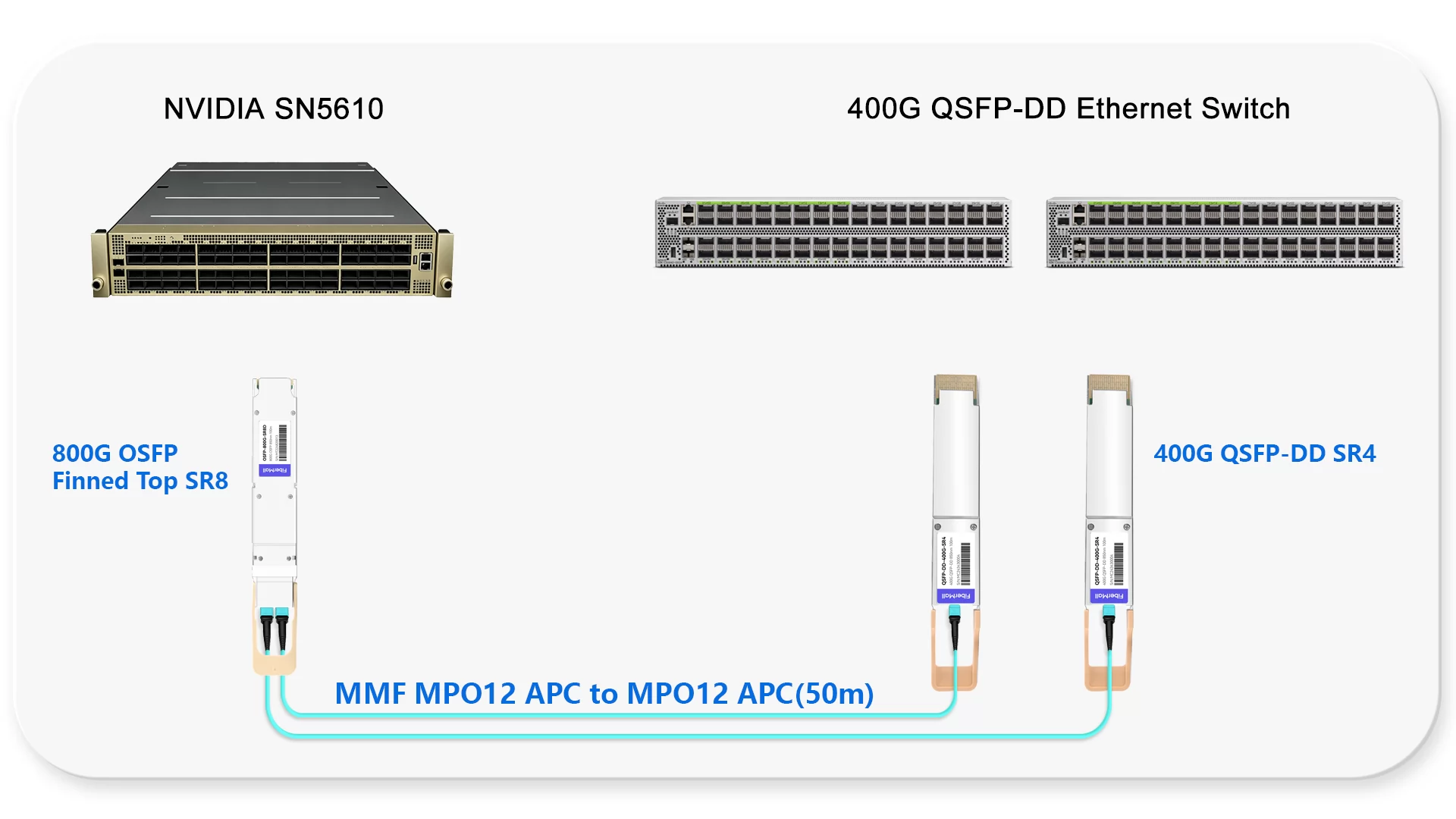

Use 800G OSFP SR8 transceivers on the 800G switch and 400G QSFP-DD SR4 transceivers on the 400G switch, connected via MPO Trunk Cables.

OSFP-800G-SR8D Compatible 800GBASE 2 x SR4/SR8 OSFP PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

$  550.00

QSFP-DD-400G-SR4 QSFP-DD 400G SR4 PAM4 850nm 100m MTP/MPO-12 OM4 FEC Optical Transceiver Module

$  450.00

NVIDIA MFP7E10-N003 Compatible 3m (10ft) 8 Fibers Low Insertion Loss Female to Female MPO Trunk Cable Polarity B APC to APC LSZH Multimode OM3 50/125

$  35.00

NVIDIA SN5610 (920- 9N42F-00RI-3C1) Spectrum-4 based 800GbE 2U Open Ethernet switch with Cumulus Linux Authentication, 64 OSFP ports and 2 SFP28 ports, 4 AC PSUs, Secure-boot, standard depth, Connector-to-Power Airflow, Tool-less Rail Kit

$  60000.00

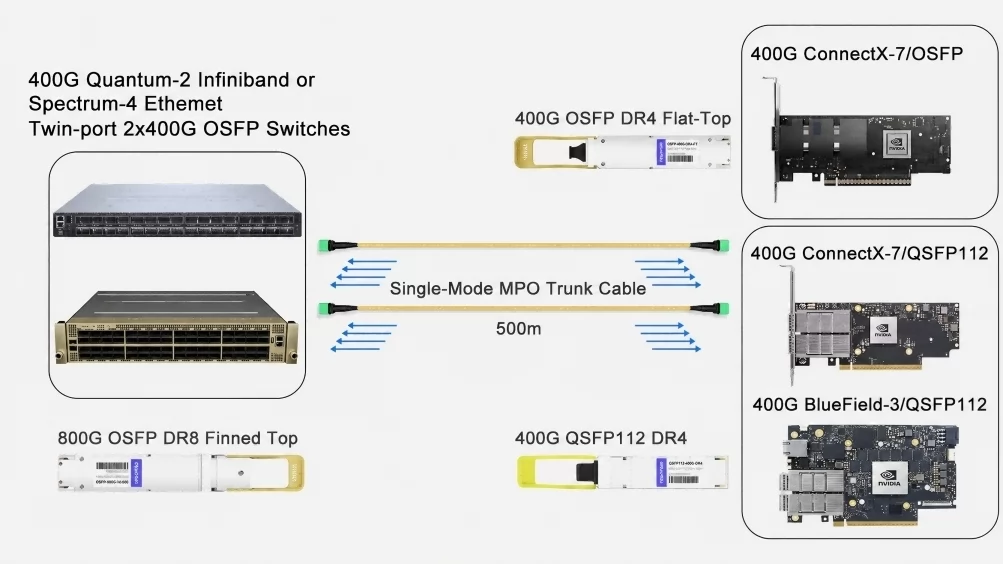

400GIB/EN Switches to 2 Connectx-7 and BIueField-3

NVIDIA MMA4Z00-NS Compatible 800GBASE 2 x SR4/SR8 OSFP PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

$  550.00

NVIDIA MMA4Z00-NS400 Compatible 400G OSFP SR4 Flat Top PAM4 850nm 30m on OM3/50m on OM4 MTP/MPO-12 Multimode FEC Optical Transceiver Module

$  400.00

NVIDIA MFP7E10-N003 Compatible 3m (10ft) 8 Fibers Low Insertion Loss Female to Female MPO Trunk Cable Polarity B APC to APC LSZH Multimode OM3 50/125

$  35.00

NVIDIA MMA1Z00-NS400 Compatible 400G QSFP112 VR4 PAM4 850nm 50m MTP/MPO-12 OM4 FEC Optical Transceiver Module

$  385.00

NVIDIA NVIDIA(Mellanox) MCX75510AAS-NEAT ConnectX-7 InfiniBand/VPI Adapter Card, NDR/400G, Single-port OSFP, PCIe 5.0x 16, Tall Bracket

$  1650.00

NVIDIA B3140H BlueField-3 8 Arm-Cores SuperNIC, E-series HHHL, 400GbE (Default Mode)/NDR IB, Single-port QSFP112, PCle Gen5.0 x16, 16GB Onboard DDR, Integrated BMC, Crypto Disabled

$  4390.00

NVIDIA B3220 BlueField-3 DPU, P-Series FHHL, 200GbE (Default Mode)/NDR200 lB, Dual-port QSFP112, PCle Gen5.0x16 with x 16 PCle Extension Option ,16 Arm Cores, 32GB Onboard DDR, Integrated BMC, Crypto Disabled, Tall Bracket

$  4490.00

NVIDIA SN5610 (920- 9N42F-00RI-3C1) Spectrum-4 based 800GbE 2U Open Ethernet switch with Cumulus Linux Authentication, 64 OSFP ports and 2 SFP28 ports, 4 AC PSUs, Secure-boot, standard depth, Connector-to-Power Airflow, Tool-less Rail Kit

$  60000.00

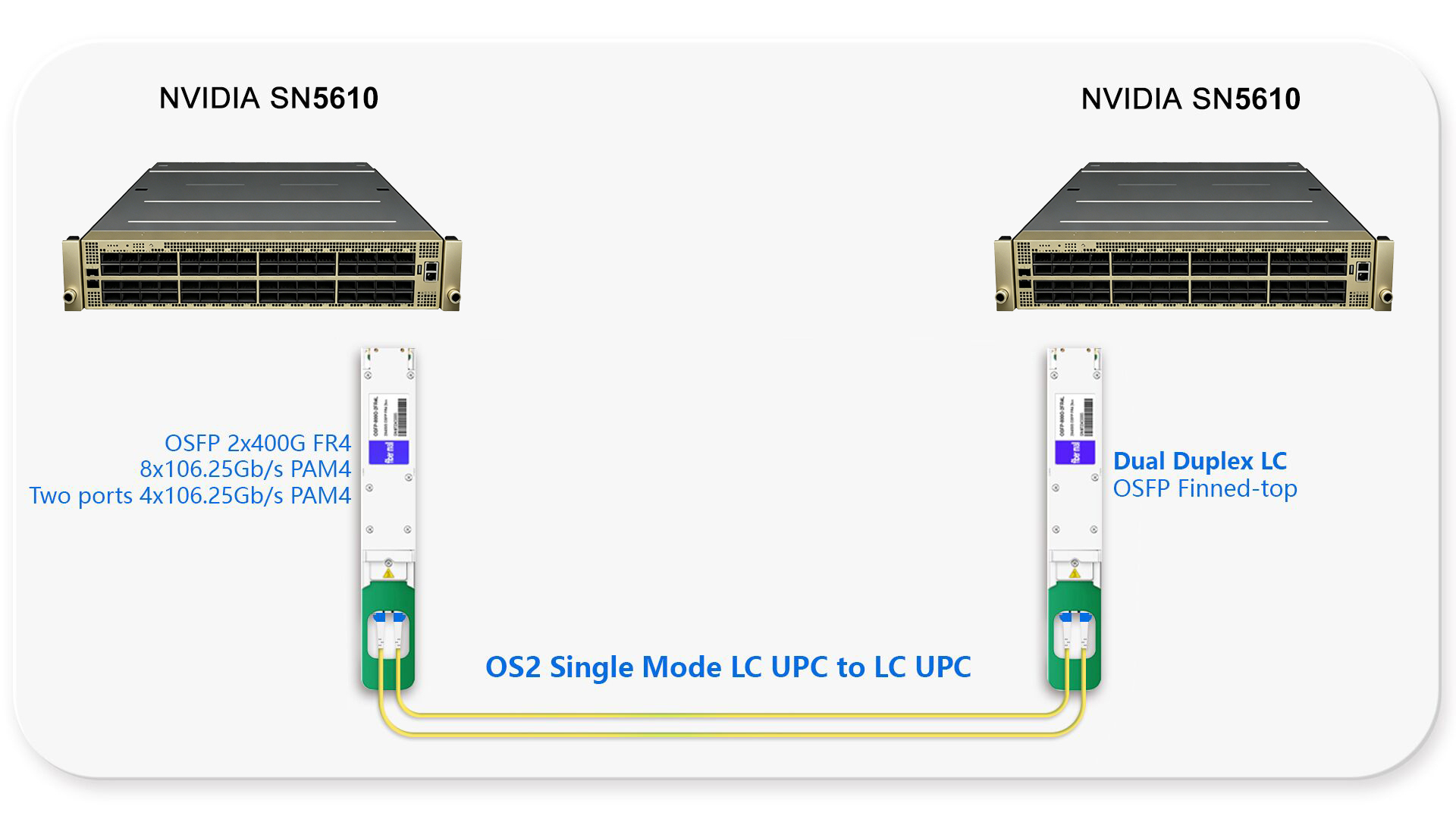

800G Ethernet Switch Link Uses a 400G FR4 transceiver to transmit 400G over four wavelengths on an SMF (LC duplex connector).

NVIDIA MMS4X50-NM Compatible 800G 2x FR4 OSFP IHS/Closed Finned Top PAM4 1310nm 2km DOM Dual Duplex LC SMF InfiniBand NDR Optical Transceiver Module

$  1000.00

1m (3ft) Duplex OS2 Single Mode LC UPC to LC UPC LSZH Fiber Optic Cable

$  3.70

NVIDIA SN5610 (920- 9N42F-00RI-3C1) Spectrum-4 based 800GbE 2U Open Ethernet switch with Cumulus Linux Authentication, 64 OSFP ports and 2 SFP28 ports, 4 AC PSUs, Secure-boot, standard depth, Connector-to-Power Airflow, Tool-less Rail Kit

$  60000.00

---

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

Keep In Stock

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High stability

Switch Introduction

NVIDIA Quantum-2 Switches

Model	Speed	Ports	Throughput	Form Factor	Cooling	Supported Operating Systems	Key Features
SN5600	800Gb/s	64 x OSFP + 2 x SFP28	51.2 Tb/s	2U	Air, C2P	Cumulus Linux / Onyx / ONIE, etc.	AI/cloud acceleration; spine/super-spine; RoCE optimization; advanced telemetry (WJH, INT); 128MB shared buffer
SN5400	400Gb/s	64 x QSFP-DD + 2 x SFP28	25.6 Tb/s	2U	Air, P2C	Cumulus Linux / Onyx / ONIE, etc.	AI/cloud acceleration; leaf/spine; RoCE optimization; advanced telemetry; 128MB shared buffer
MSN4700-WS2FC	400Gb/s	32 x QSFP-DD	25.6 Tb/s	1U	Air, C2P	Cumulus Linux / Onyx / ONIE, etc.	High availability (MLAG, ECMP); VXLAN routing; data center leaf/spine; 64MB shared buffer
MSN4600-VS2FC	200Gb/s	64 x QSFP28	12.8 Tb/s	2U	Air, P2C	Cumulus Linux / Onyx / ONIE, etc.	Cloud environments; VXLAN support; 64MB shared buffer
MSN4600-CS2FC	100Gb/s	64 x QSFP56	25.6 Tb/s	2U	Air, C2P	Cumulus Linux / Onyx / ONIE, etc.	Storage environments; RoCE/ML optimization; 64MB shared buffer

Switch to Switch - Optics

Switch to NIC/GPU
