Juniper QSFPP-4X10GE-LR 4x10GBASE QSFP+ LR Module | FiberMall

Add to wish

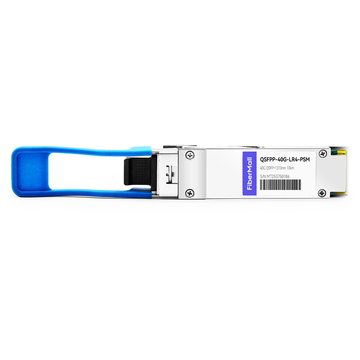

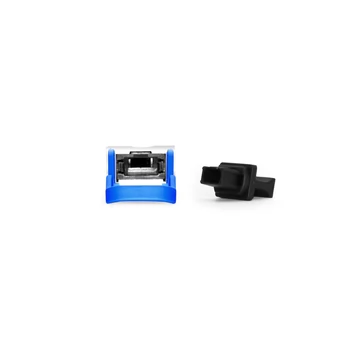

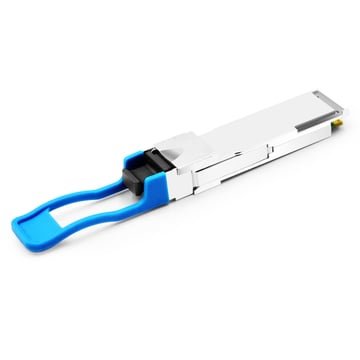

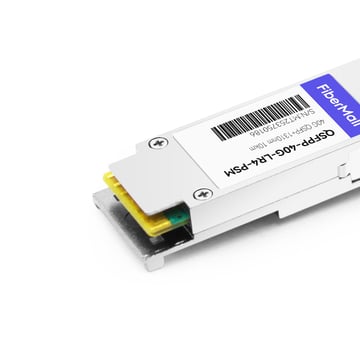

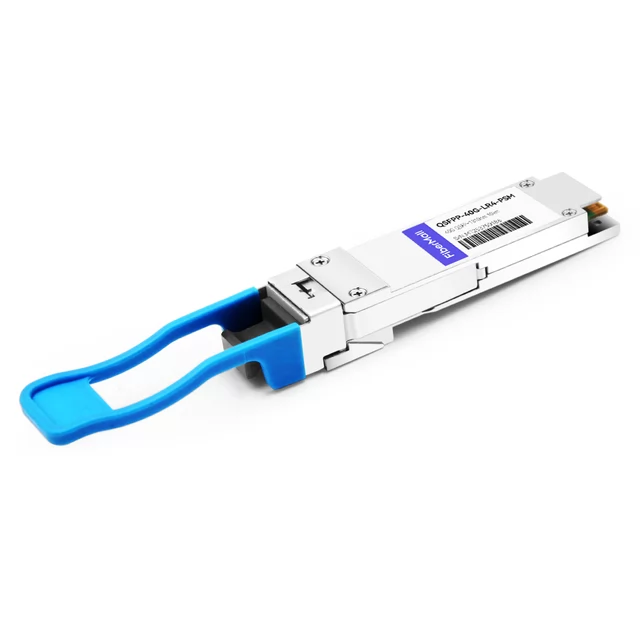

Juniper QSFPP-4X10GE-LR Compatible 40G QSFP+ 4X10GE-LR 1310nm 10km MTP/MPO SMF DDM Transceiver Module

Name: Juniper QSFPP-4X10GE-LR Compatible 40G QSFP+ 4X10GE-LR 1310nm 10km MTP/MPO SMF DDM Transceiver Module
Brand: fibermall
SKU: 10134
Price: 149.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: Juniper QSFPP-4X10GE-LR Compatible 40G QSFP+ 4X10GE-LR 1310nm 10km MTP/MPO SMF DDM Transceiver Module

$ 149.00
In Stock

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

SKU:10134

$ 149.00

Compatible: Cisco; FiberMall; Arista Networks; Brocade; DELL Force10; EdgeCore; Extreme; H3C; HPE (H3C); Huawei; Intel; Juniper

FM PN:

QSFPP-40G-LR4-PSM

Ship From:

Asia

Shipping:

$ 29.66

to United States Via DHL

Estimated delivery time : 3-5 working days. See details

Quantity:

Total Price:

$ 149.00

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Juniper QSFPP-4X10GE-LR Compatible 40G QSFP+ 4X10GE-LR Transceiver Module (1310nm SMF 10km MTP/MPO DDM)

The 40G QSFP+ LR4 is a transceiver module designed for 10km optical communication applications. The design is compliant with 40GBASE-LR4 of the IEEEP802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. The central wavelengths of the 4 channels are 1310 nm as members of the wavelength grid defined in ITU-T G694.2.

Product Details

Juniper Compatible	QSFPP-4X10GE-LR	Vendor Name	FiberMall
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	1310nm	Max Distance	10km
Connector	MTP/MPO	Transmitter Type	4 Lanes DFB
Cable Type	SMF	Receiver Type	PIN
TX Power	-5~1dBm	Receiver Sensitivity	< -12.6dBm
Protocols	40Gigabit Ethernet, 10Gigabit Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably

: Temperature Impact; High and low-temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

: EMI Testing; Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF(Mean Time Between Failures)testing ensures high stability

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
