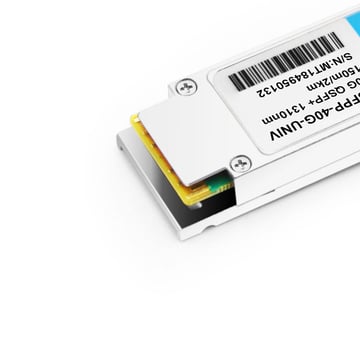

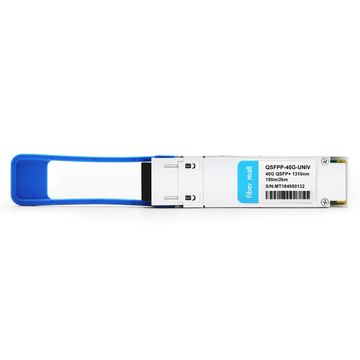

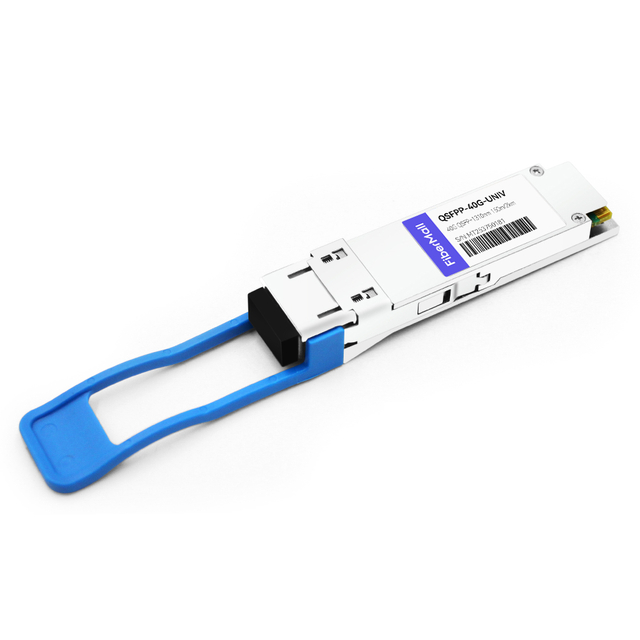

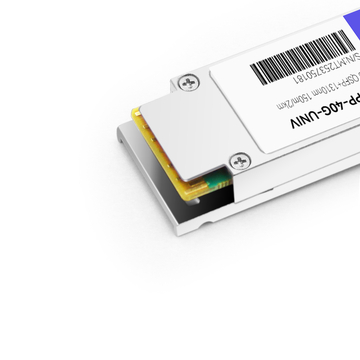

Brocade 40G-QSFP-LM4 Compatible 40G QSFP+ LM4 1310nm 160m/2km LC MMF/SMF DDM Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:10106
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
FM PN:
QSFPP-40G-UNIV
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Brocade 40G-QSFP-LM4 Compatible 40G QSFP+ LM4 Transceiver Module (1310nm MMF/SMF 160m/2km LC DDM)

This product is a transceiver module designed for optical transmission applications over both MMF and SMF with transmission distances of up to 150m on MMF (OM3) and 2kmon SMF.  The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDMoptical signals and multiplexes them into a single channel for 40Gb/s optical transmission. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311, and 1331nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex connector for the optical interface and a 148-pin connector for the electrical interface.

Product Details

Brocade Compatible 40G-QSFP-LM4Vendor Name FiberMall
Form Factor QSFP+Max Data Rate 40Gbps
Wavelength 1310nmMax Distance 2km on SMF / 150m on OM3 MMF
Connector LC DuplexTransmitter Type 4 Lanes CWDM DFB
Cable Type MMF/SMFReceiver Type PIN
TX Power -7~2.3dBmReceiver Sensitivity < -10.5dBm
Protocols 40G Ethernet, MSA CompliantOperation Temperature 0 to 70°C (32 to 158°F)


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall

our advantages

Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall

Keep In Stock

Fast Delivery
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall

Professional Service

Technical Support
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall
Coding(EEPROM Programming)
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall
Testing system

Partial test demonstartion

Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall
Cisco N9k-C92160YC-X-C
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall
HP ProCurve 5406zl J8697A
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall
ARISTA 7-50QX-32
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall
Juniper EX4300
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall
HW S5700-28X-L1-AC
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall
Brocade VDX 6720
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall
DELL S4048 ON
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall
DATACOM DM4100
Brocade 40G-QSFP-LM4 40G LM4 Transceiver Module | FiberMall
H3C LS-5500-28C-S

Product Features

v 4 CWDM lanes MUX/DEMUX design

v Up to 11.2Gb/s data rate per wavelength

v QSFP+ MSA compliant

v IEEE 802.3ba Electrical Interface

v Compliant with QDR/DDR Infiniband data rates

v Up to 150m transmission on OM3 multimode fiber (MMF) or 2km transmission on single mode fiber (SMF)

v Maximum power consumption 3.5W

v Supports Data centers, 40GBASE-LX4 Ethernet Links, Infiniband QDR, and DDR interconnect, Client-side 40G datacom connections
