Mellanox MC2210511-PIR4 40G PIR4 Optical Transceiver | FiberMall

Add to wish

Mellanox MC2210511-PIR4 Compatible 40G QSFP+ PIR4 1310nm 1.4km MTP/MPO SMF DDM Transceiver Module

Name: Mellanox MC2210511-PIR4 Compatible 40G QSFP+ PIR4 1310nm 1.4km MTP/MPO SMF DDM Transceiver Module
Brand: fibermall
SKU: 10110
Price: 139.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: Mellanox MC2210511-PIR4 Compatible 40G QSFP+ PIR4 1310nm 1.4km MTP/MPO SMF DDM Transceiver Module

$ 139.00
In Stock

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

SKU:10110

$ 139.00

Compatible: Cisco; FiberMall; Arista Networks; Brocade; EdgeCore; H3C; Huawei; Juniper; Mellanox

Transceiver Type: MC2210411-SR4; MC2210411-SR4E; MC2210511-IR4; MC2210511-PIR4; MC2210511-LR4; MC2210511-ER4; QSFPP-40G-ZR4-Lite-ME; QSFPP-40G-ZR4-ME; QSFPP-40G-EZR4-ME

FM PN:

QSFPP-40G-IR4-PSM

Ship From:

Asia

Shipping:

$ 28.40

to United States Via DHL

Estimated delivery time : 3-5 working days. See details

Quantity:

Total Price:

$ 139.00

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

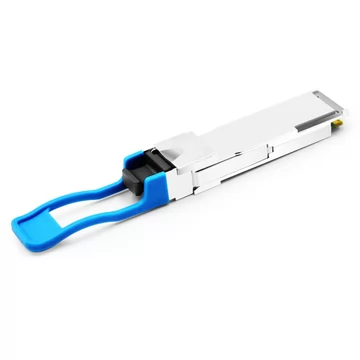

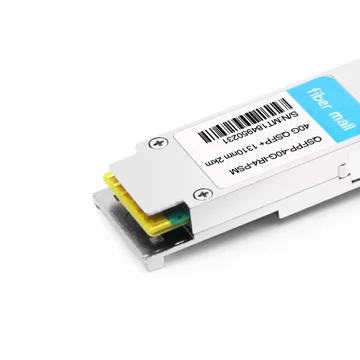

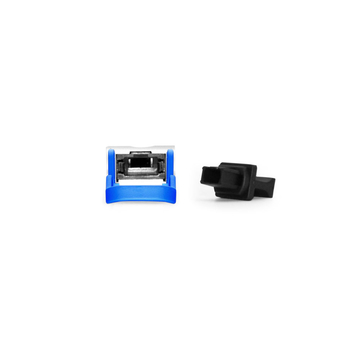

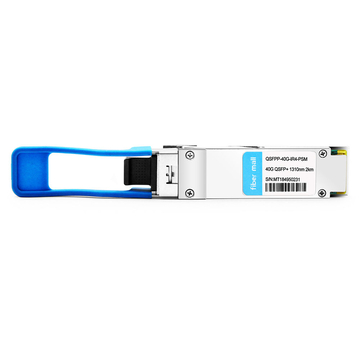

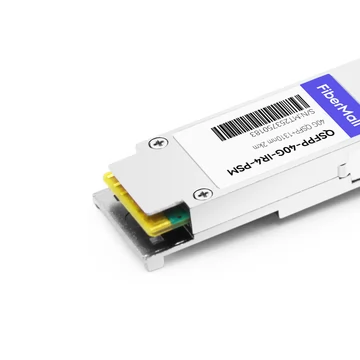

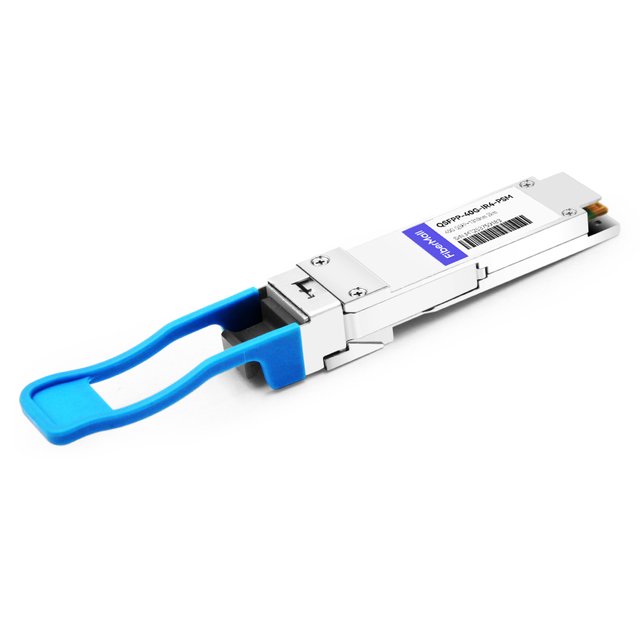

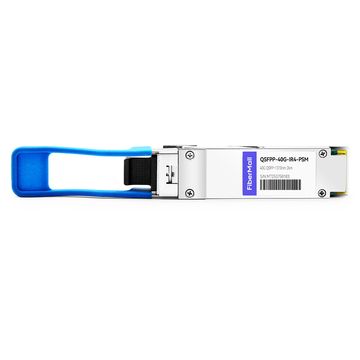

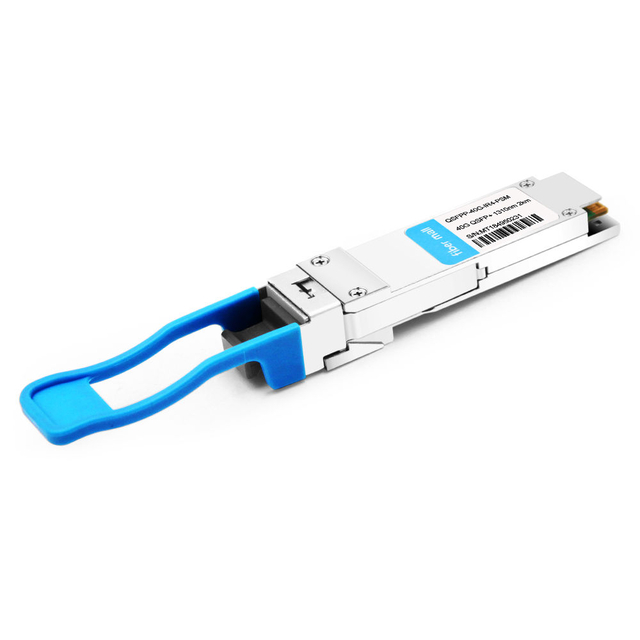

Mellanox MC2210511-PIR4 Compatible QSFP+ PIR4 Transceiver Module (1310nm SMF 1.4km MTP/MPO DDM)

The 40G QSFP PLRL4 is a transceiver module designed for 2km optical communication applications. The design is compliant with 40GBASE-LR4 of the IEEEP802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. The central wavelengths of the 4 channels are 1310 nm as members of the wavelength grid defined in ITU-T G694.2.

Product Details

Mellanox Compatible	MC2210511-PIR4	Vendor Name	FiberMall
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	1310nm	Max Distance	2km
Connector	MTP/MPO	Transmitter Type	4 Lanes DFB
Cable Type	SMF	Receiver Type	PIN
TX Power	-5~1dBm	Receiver Sensitivity	< -12.6dBm
Protocols	40Gigabit Ethernet, 10Gigabit Ethernet, 38-pin edge connector, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
