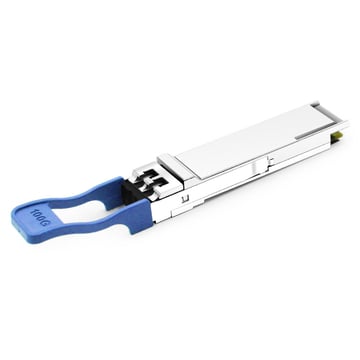

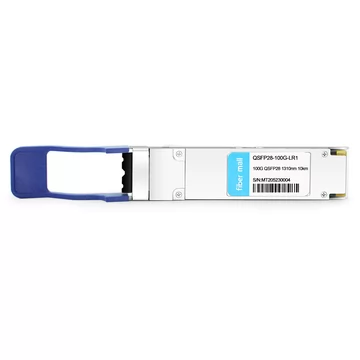

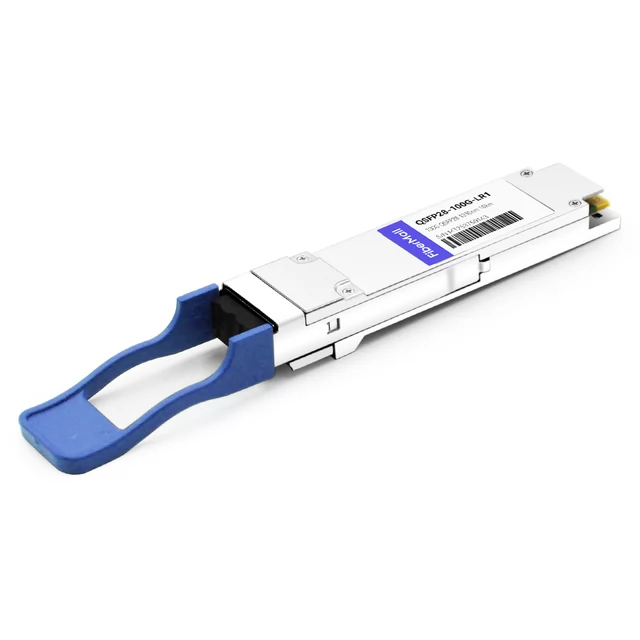

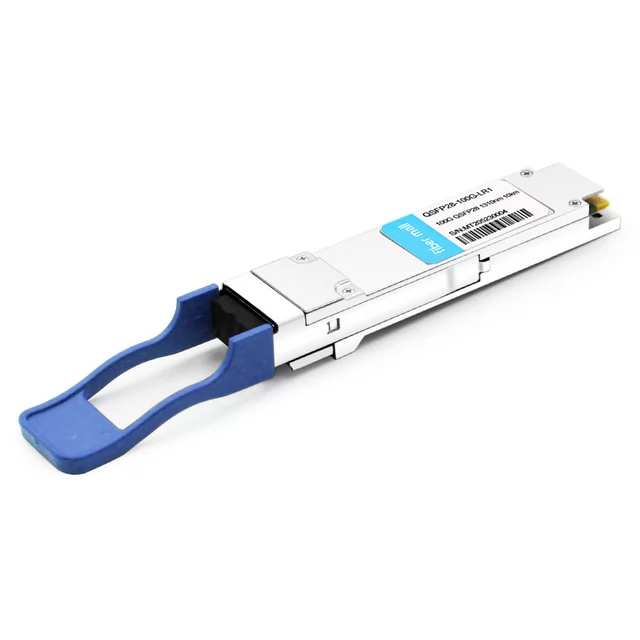

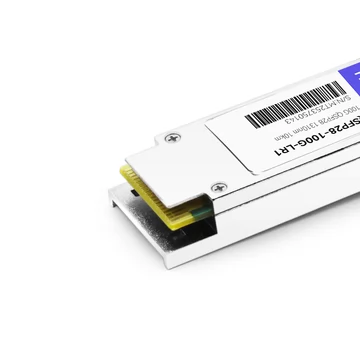

QSFP28-100G-LR1 100G QSFP28 Single Lambda LR 1310nm 10km LC SMF with FEC DDM Optical Transceiver

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

FM PN:
QSFP28-100G-LR1
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

100G QSFP28 PAM4 Single Lambda LR Optical Transceiver (1310nm 10km LC SMF with FEC DDM)

The module incorporates one channel optical signal, on 1310nm center wavelength, operating at a 50Gbaud data rate. A DSP-based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signals. Also, a 4-channel re-timer and FEC block are integrated into this DSP. It is compliant with IEEE 802.3cd, QSFP28 MSA, and 100G Lambda MSA.

Product Details

FiberMall P/N QSFP28-100G-LR1Vendor Name FiberMall
Form Factor QSFP28Max Data Rate 100Gbps Single Lambda
Wavelength 1310nmMax Distance 10km

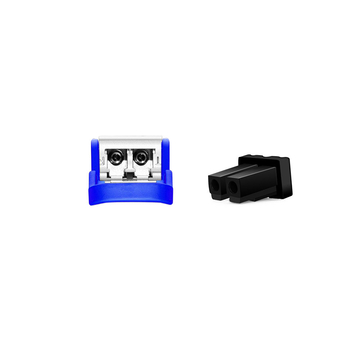

Connector Duplex LCTransmitter Type EML
Cable Type SMFReceiver Type PIN
TX Power -1.4~+4.5dBmReceiver Sensitivity < -4.5dBm
DDM Support YESFEC Support YES
Protocols 100G Lambda MSA 100G-LR, 100G EthernetOperation Temperature 0 to 70°C (32 to 158°F)


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall

our advantages

FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall

Keep In Stock

Fast Delivery
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall

Professional Service

Technical Support
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall
Coding(EEPROM Programming)
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall
Testing system

Partial test demonstartion

FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall
Cisco N9k-C92160YC-X-C
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall
HP ProCurve 5406zl J8697A
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall
ARISTA 7-50QX-32
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall
Juniper EX4300
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall
HW S5700-28X-L1-AC
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall
Brocade VDX 6720
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall
DELL S4048 ON
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall
DATACOM DM4100
FiberMall QSFP28-100G-LR1 QSFP 100G LR Single Lambda | FiberMall
H3C LS-5500-28C-S
FiberMall P/N
QSFP28-100G-LR1
QSFP28-100G-FR1
QSFP28-100G-DR1
Vendor Name
FiberMall
FiberMall
FiberMall
Form Factor
QSFP28
QSFP28
QSFP28
Max Data Rate
100Gbps Single Lambda
100Gbps Single Lambda
100Gbps Single Lambda
Wavelength
1310nm
1310nm
1310nm
Max Distance
10km
2km
500m
Connector
Duplex LC
Duplex LC
Duplex LC
Transmitter Type
EML
EML
EML
Cable Type
SMF
SMF
SMF
Receiver Type
PIN
PIN
PIN
TX Power
-1.4~+4.5dBm
-2.4~+4.0dBm
-2.4~+4.0dBm
Receiver Sensitivity
< -4.5dBm
< -4.5dBm
< -4.4dBm
DDM Support
YES
YES
YES
FEC Support
YES
YES
YES
Protocols
100G Lambda MSA 100G-LR, 100G Ethernet
100G Lambda MSA 100G-FR, 100G Ethernet
IEEE802.3cd 100GBASE-DR, 100G Ethernet, MSA Compliant
Operation Temperature
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)

Product Features

v QSFP28 MSA compliant

v Supports 53.125Gbaud

v 100G Lambda MSA 100G-LR Specification compliant

v Up to 10km transmission on single mode fiber (SMF) with FEC

v 4x25G electrical interface (OIF CEI-28G- VSR)

v Maximum power consumption 4.5W

v RoHS compliant

v Supports Data Center Interconnect, 100G Ethernet, and Enterprise networking.
